Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the front speaker to the speaker retainers on the front door trim panel.
  2. Press the speaker into the retainers until fully seated.
  3. Install the front door inner trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR

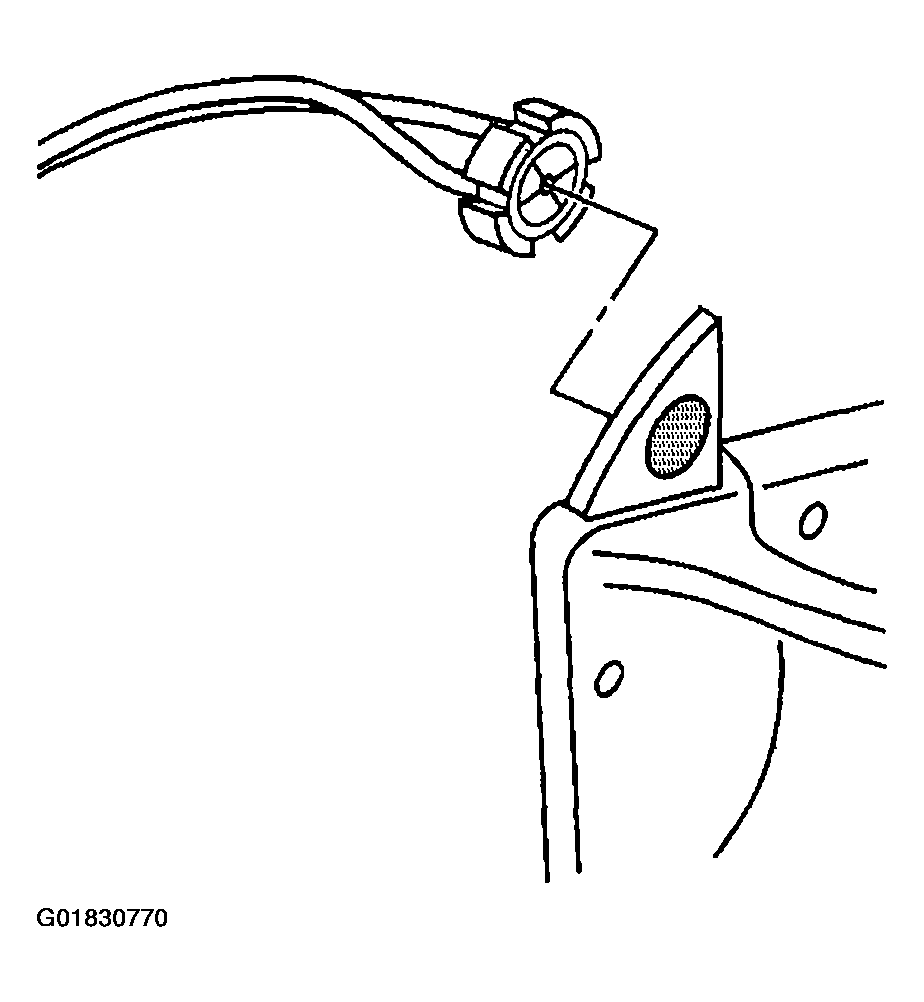

    Fig 1: Install Front Door Inner Trim Panel & Speaker
    G01830770Courtesy of GENERAL MOTORS CORP.
