Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door inner trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR
  2. Remove the front door speaker screws.
  3. Disconnect the electrical/audio connectors from the front door speaker.
  4. Remove the front door speaker.

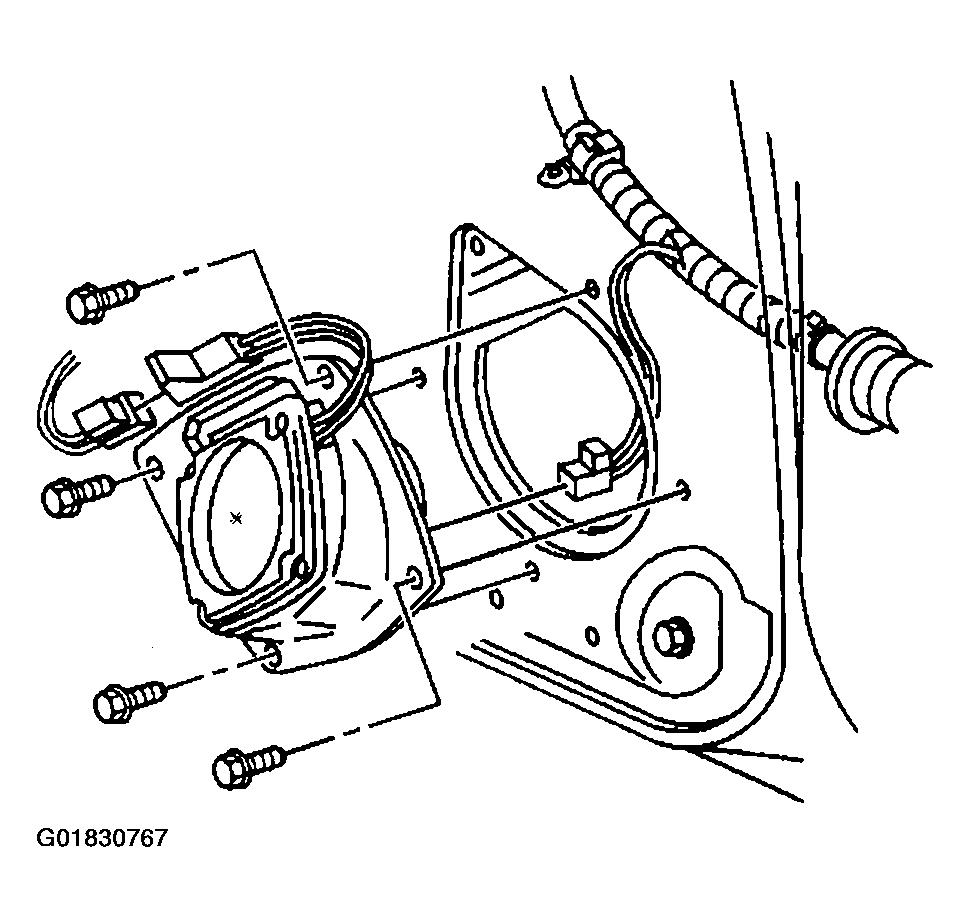

    Fig 1: Remove Front Door Speaker, Electrical/Audio Connectors & Screws
    G01830767Courtesy of GENERAL MOTORS CORP.
