Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical/audio connector to the front door speaker.
  2. Position the front door speaker to the front door.
    NOTE: Refer to FASTENER NOTICE
  3. Install the front door speaker screws.

    Tighten

    Tighten the front door speaker screws to 2 N.m(18 lb in).

  4. Install the front door inner trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR

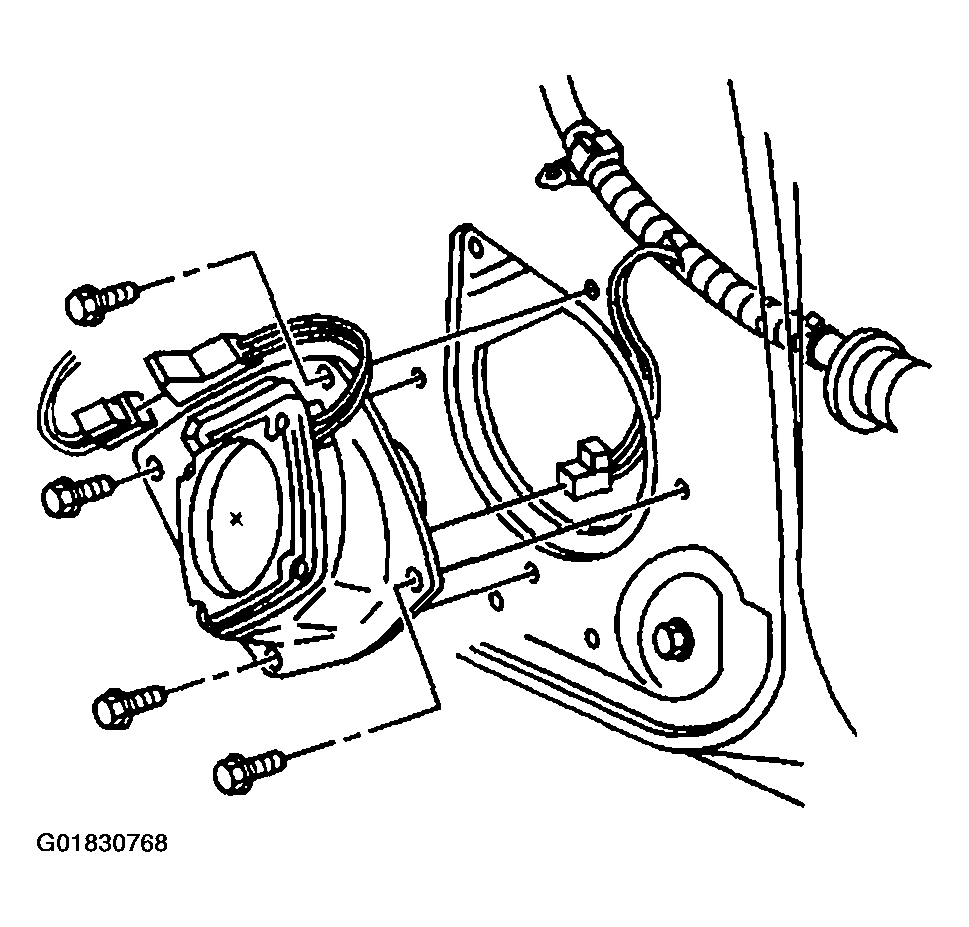

    Fig 1: Install Front Door Speaker, Electrical/Audio Connectors & Screws
    G01830768Courtesy of GENERAL MOTORS CORP.
