Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear speaker grille into the rear window trim panel.
    NOTE: Refer to FASTENER NOTICE
  2. Install the rear speaker grille nuts.

    Tighten

    Tighten the rear speaker grille nuts to 2 N.m(18 lb in).

  3. Install the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF

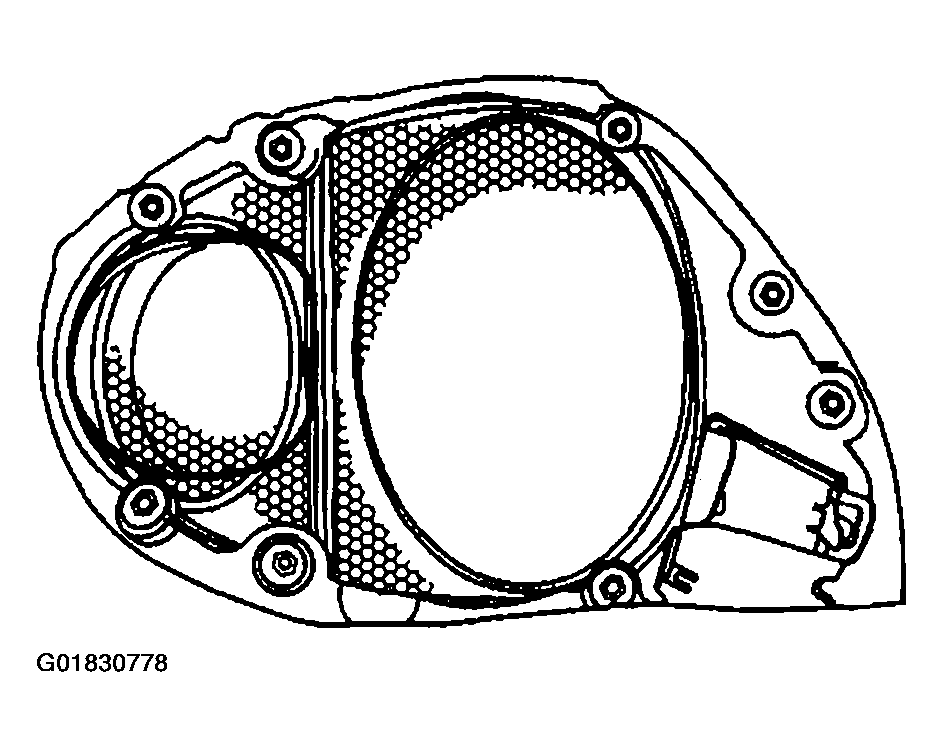

    Fig 1: Install Rear Window Trim Panel, Speaker Grille & Nuts
    G01830778Courtesy of GENERAL MOTORS CORP.
