Tape Player Weak, Slow, or Garbled Output

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

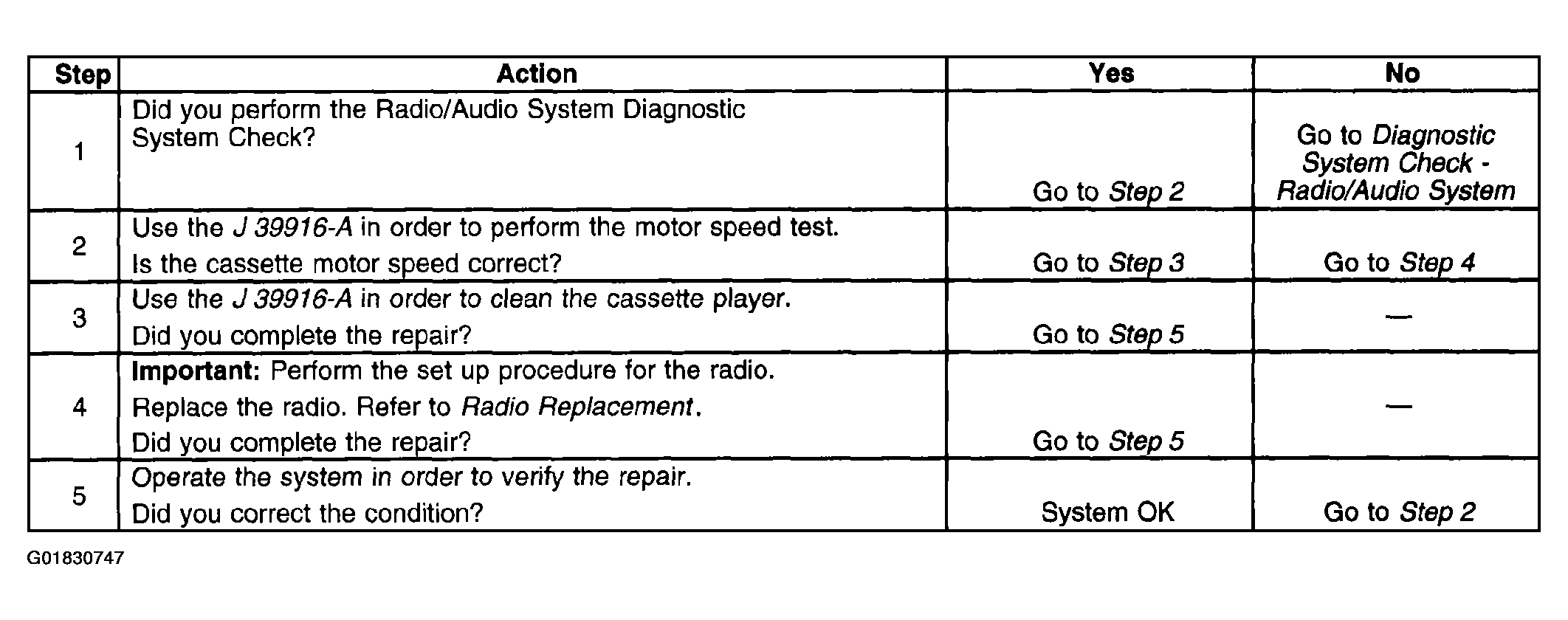

Fig 1: Tape Player Weak, Slow, Or Garbled Output
G01830747Courtesy of GENERAL MOTORS CORP.
