Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step number on the diagnostic table.

  1. 2. This step verifies that the DTC is still present.
  2. 3. This step isolates the fault condition.

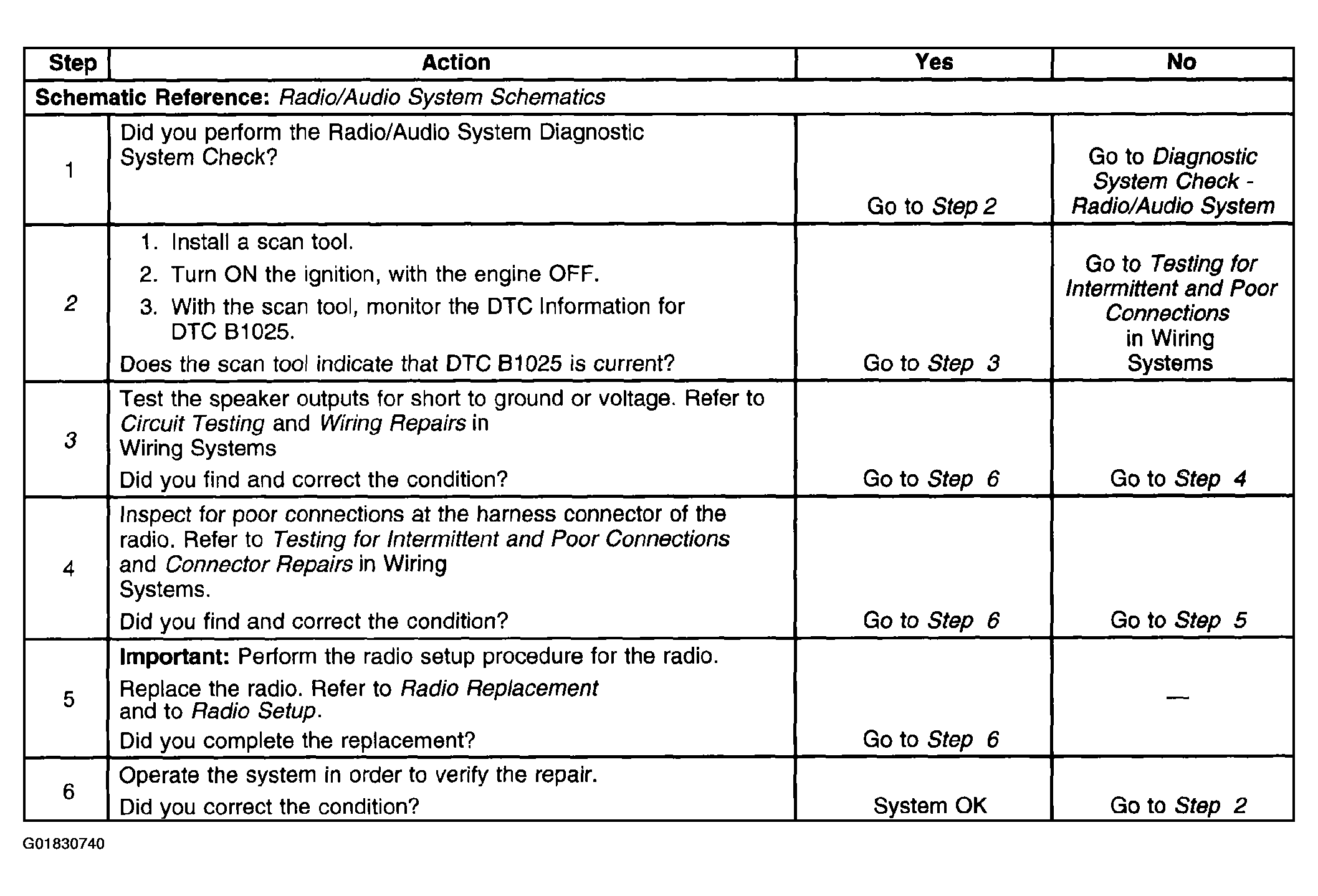

    Fig 1: DTC B1025, B1035, B1045, Or B1055 Diagnostic Table
    G01830740Courtesy of GENERAL MOTORS CORP.
