Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT
  2. Remove the wiper drive system module. Refer to Wiper Drive System Module Replacement
  3. Remove the wiper transmission caps.
  4. Remove the wiper transmission screws.
  5. Remove the wiper transmission from the wiper drive system module tube frame.

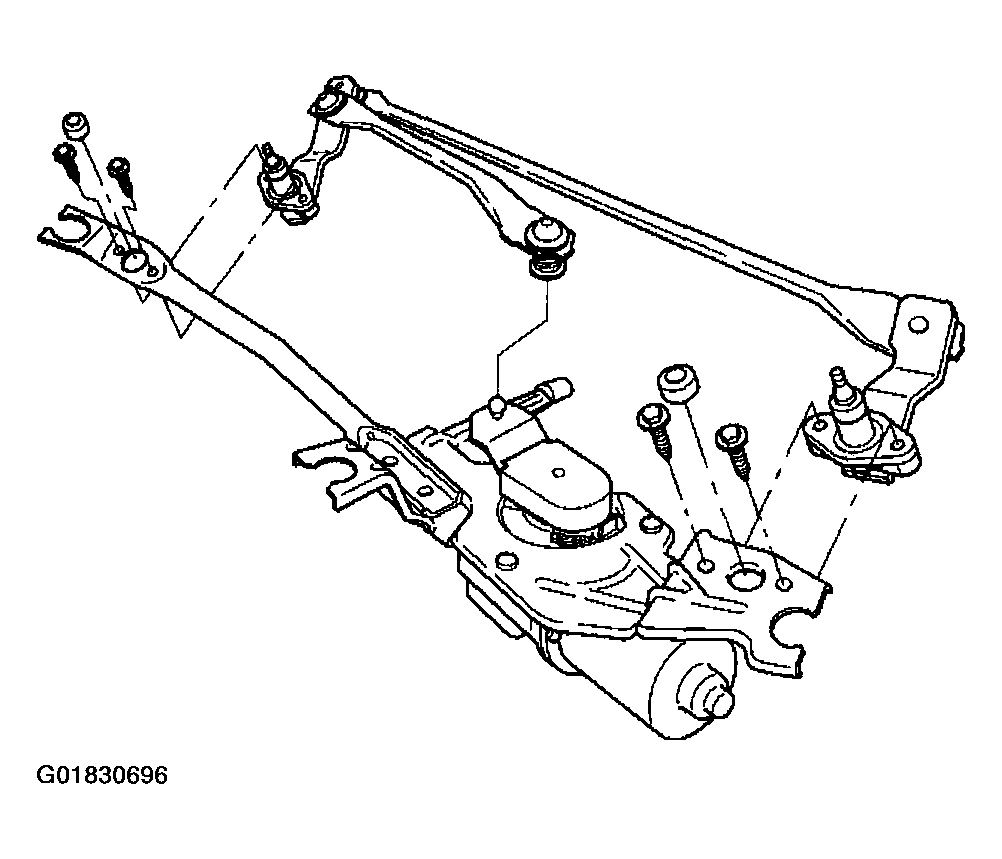

    Fig 1: Removing Wiper Transmission, Caps & Screws
    G01830696Courtesy of GENERAL MOTORS CORP.
