Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT
  2. Remove the wiper drive system module. Refer to Wiper Drive System Module Replacement
  3. Remove the wiper motor cover screws.
  4. Remove the wiper motor cover from the wiper motor.

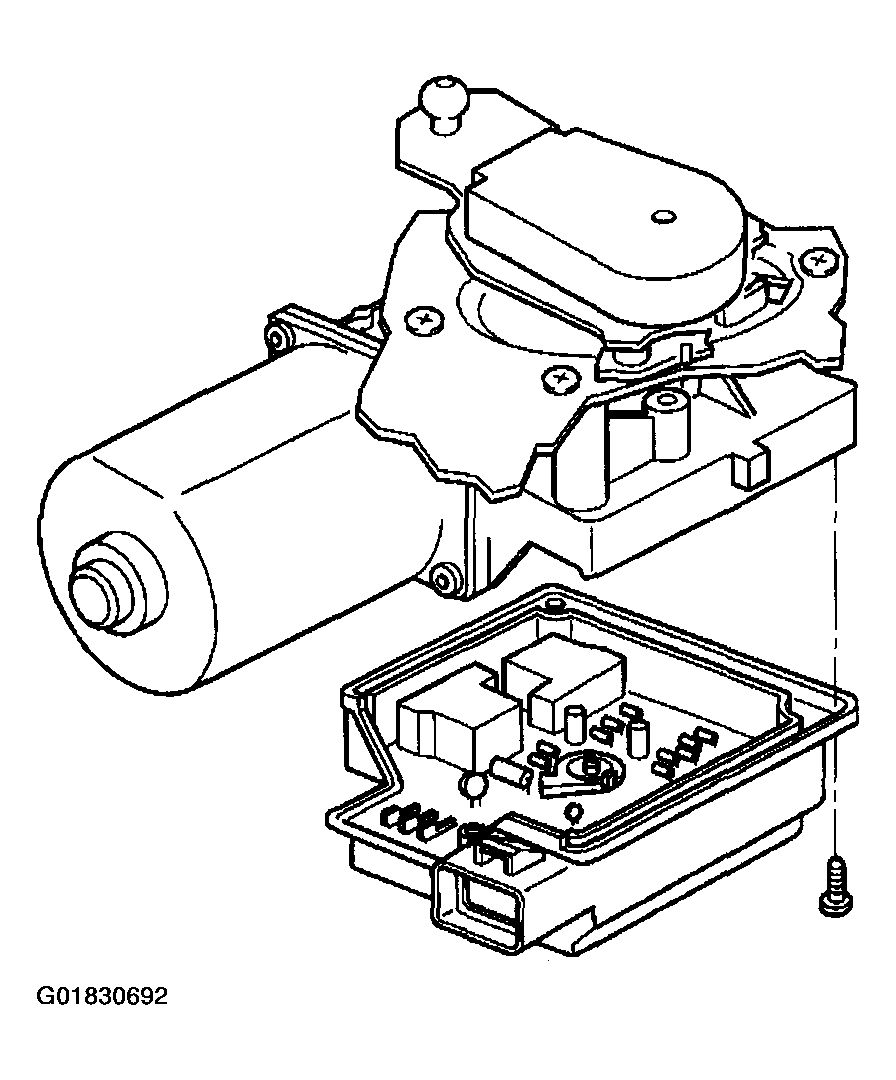

    Fig 1: Removing Wiper Motor Cover & Wiper Motor Cover Screws
    G01830692Courtesy of GENERAL MOTORS CORP.
