Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the washer solvent from the washer solvent container.
  2. Remove the washer solvent container filler neck. Refer to Washer Solvent Container Filler Neck Replacement
  3. Remove the right headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT
  4. Remove the washer solvent container screws.

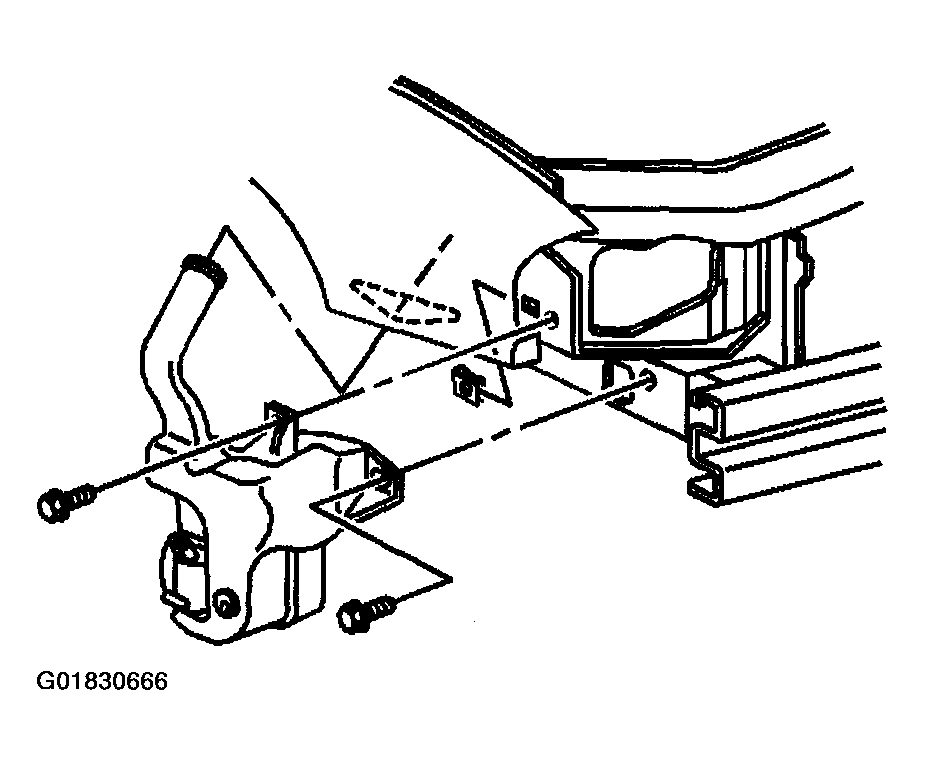

    Fig 1: Removing Washer Solvent Container Neck, Right Headlight Assembly & Screws
    G01830666Courtesy of GENERAL MOTORS CORP.
  5. Remove the front fender liner. Refer to FRONT FENDER LINER REPLACEMENT
  6. Disconnect the washer pump hose.
  7. Disconnect the washer pump electrical connector.
  8. Disconnect the washer solvent level sensor electrical connector.

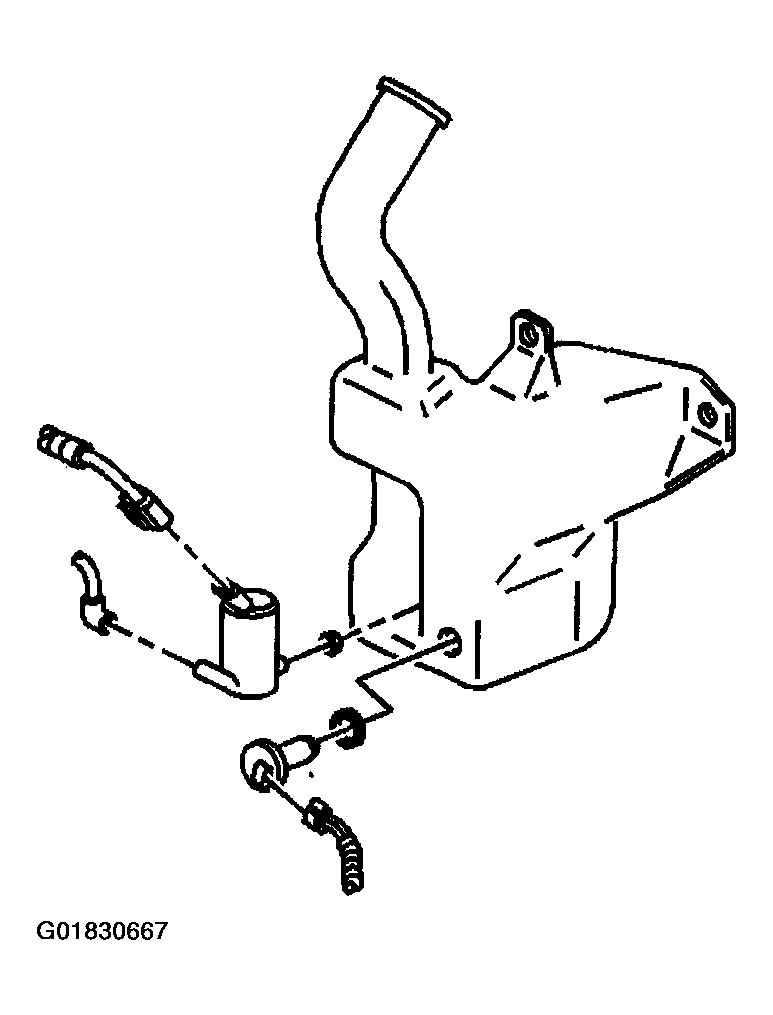

    Fig 2: Disconnecting Washer Pump Hose & Washer Pump Electrical Connector
    G01830667Courtesy of GENERAL MOTORS CORP.
  9. Remove the washer solvent container bracket screw.
  10. Remove the washer solvent container from the right frame rail.

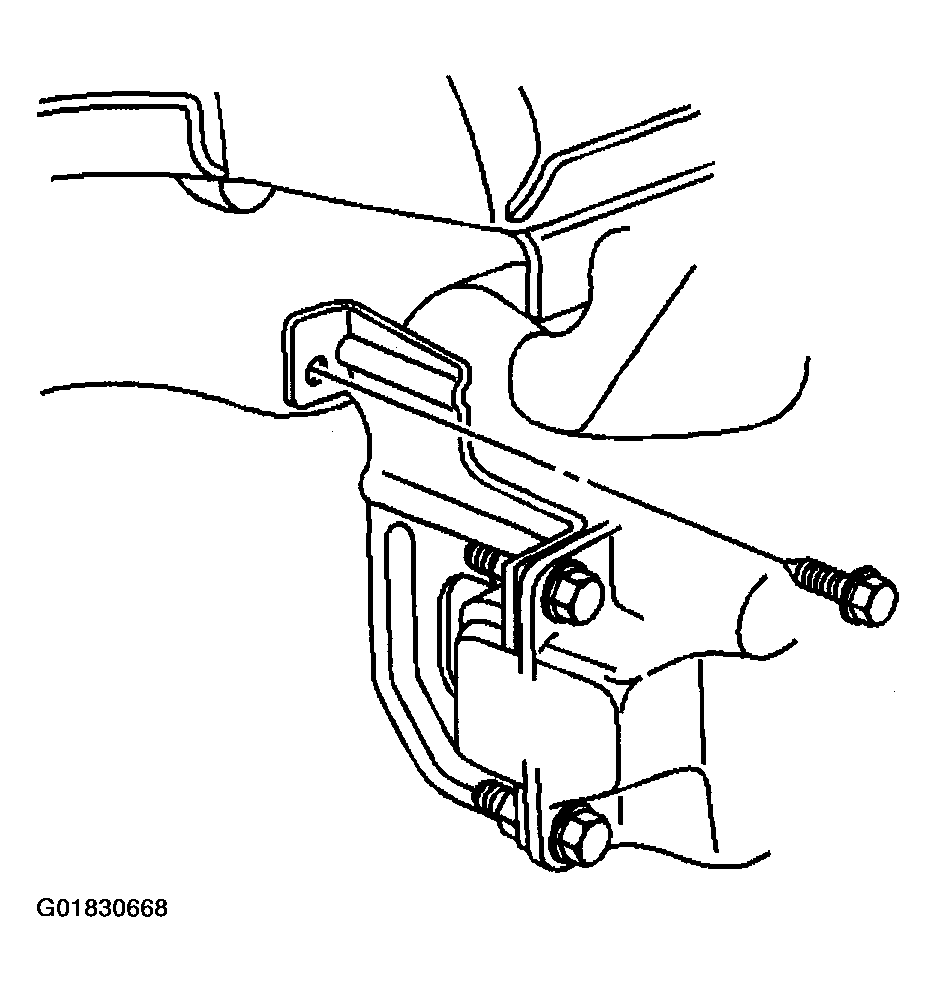

    Fig 3: Removing Washer Solvent Container & Bracket Screw
    G01830668Courtesy of GENERAL MOTORS CORP.
