Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the Hood.
  2. Remove the washer solvent container filler neck push-in retainer.
  3. Remove the washer solvent container filler neck from the washer solvent container.

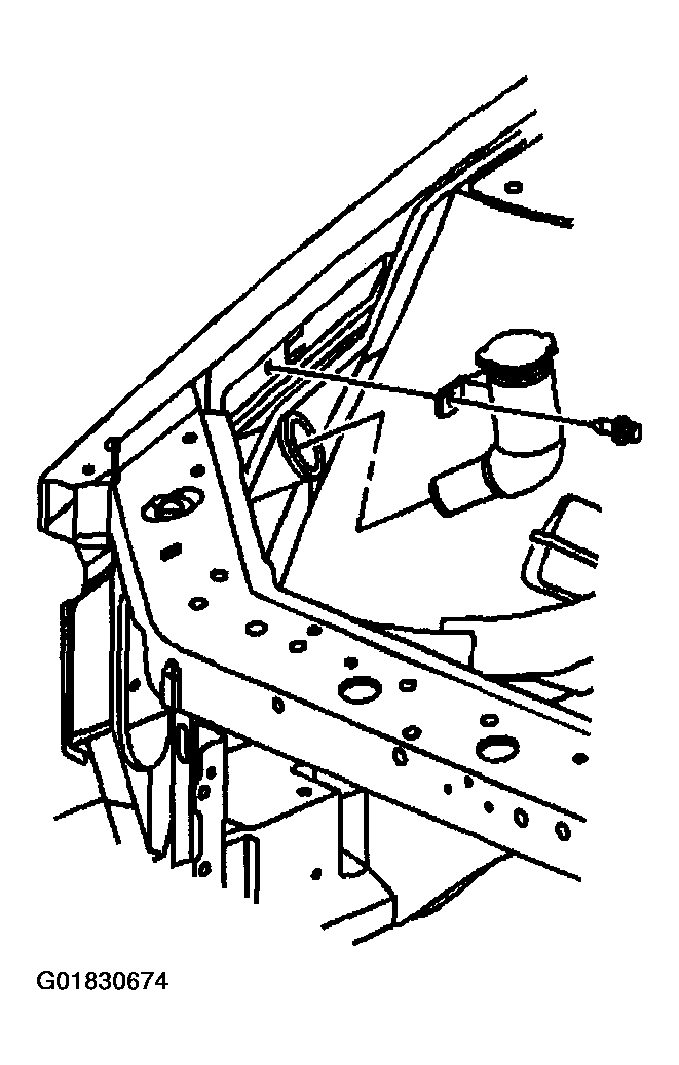

    Fig 1: Removing Washer Solvent Container Filler Neck & Push-In-Retainer
    G01830674Courtesy of GENERAL MOTORS CORP.
