Test Description
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

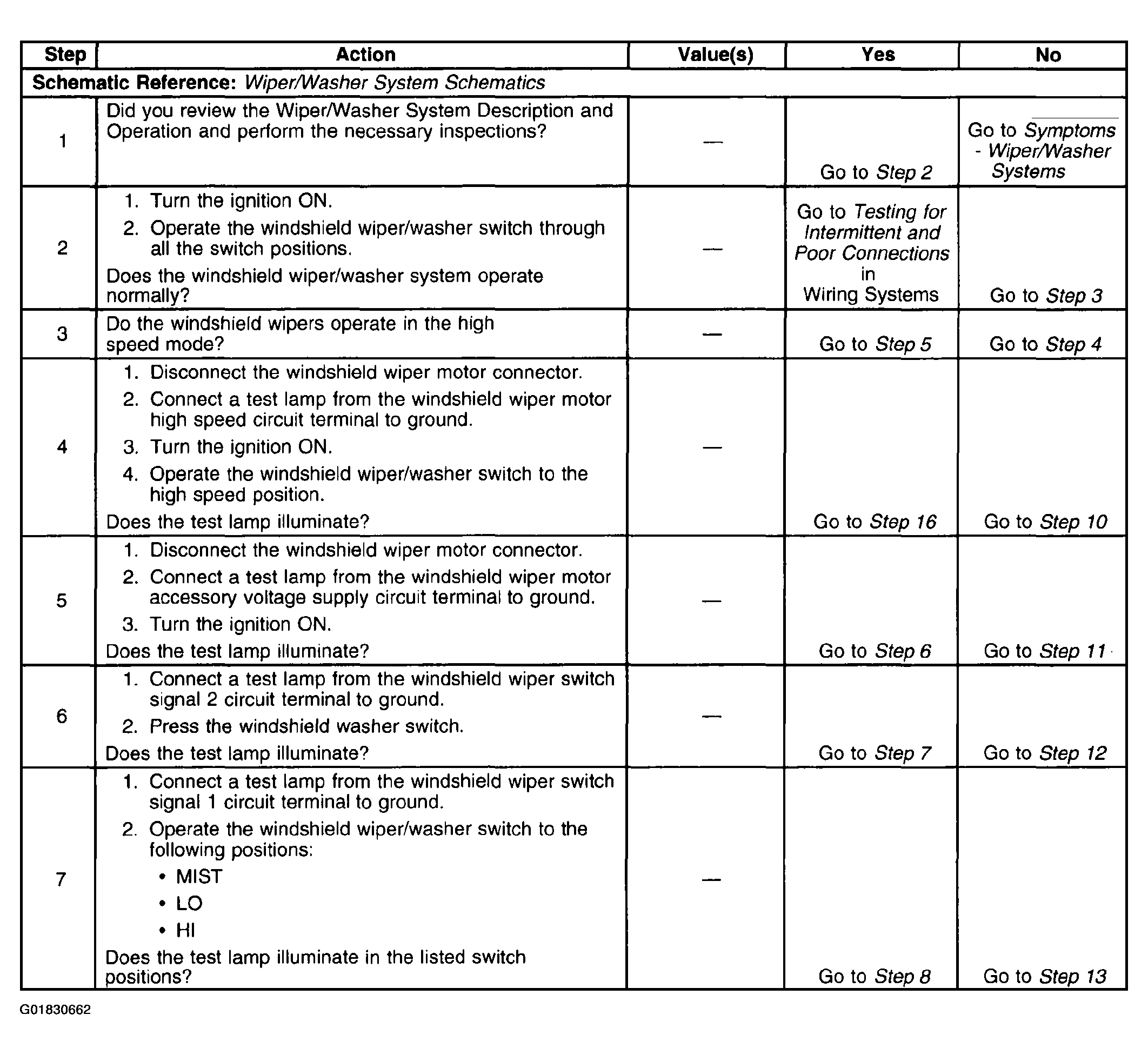

The number(s) below refer to the step number(s) on the diagnostic table.

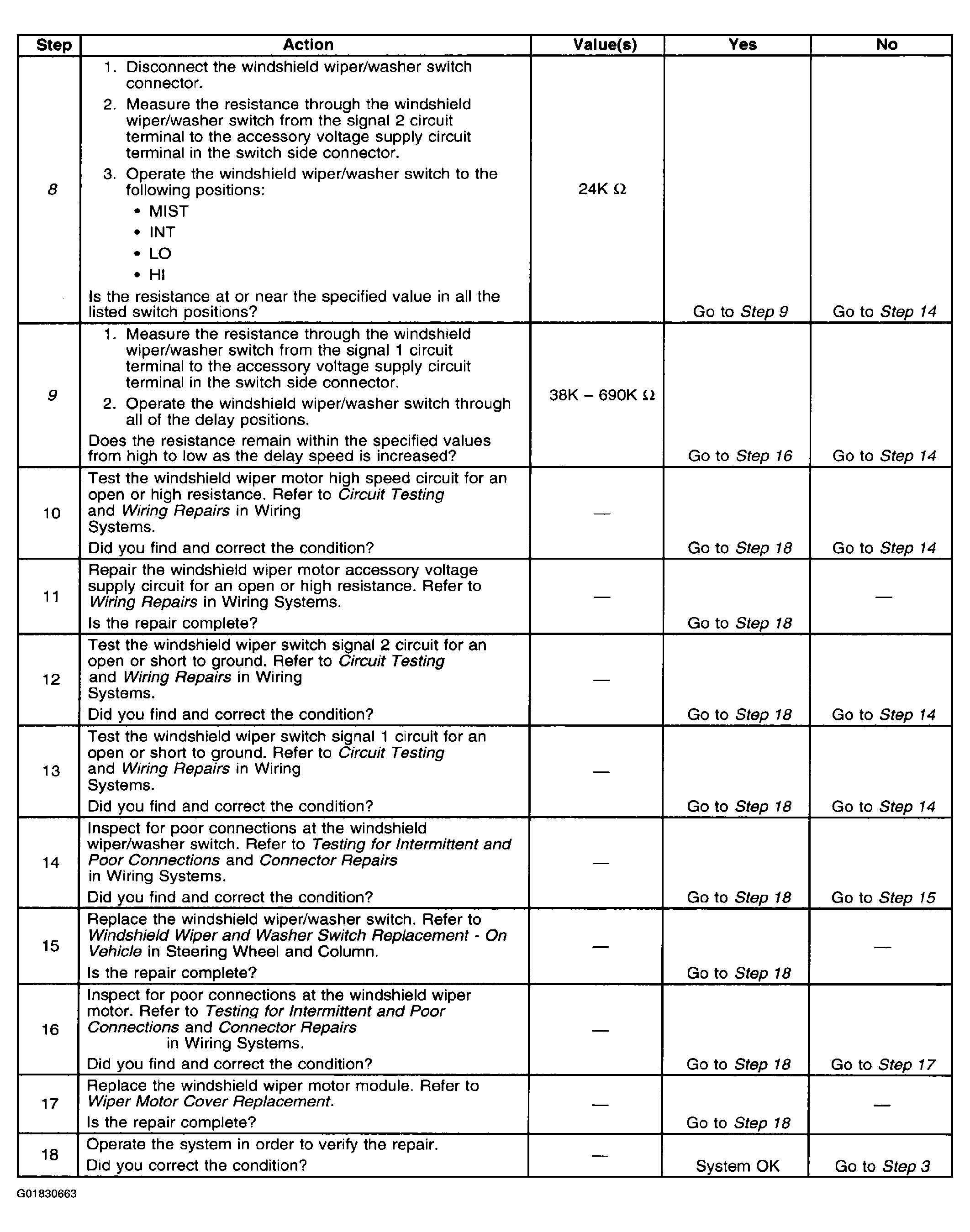

- 8. This step tests for continuity through the 24K Ω resistor in the windshield wiper/washer switch. The connector behind the instrument panel knee bolster is suitable for performing this step.
- 9. This step tests for continuity through the delay resistors in the windshield wiper/washer switch. The measured resistance will change in sequence from high to low as the delay speed is increased. The connector behind the instrument panel knee bolster is suitable for performing this step.
