Wipers Always On

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

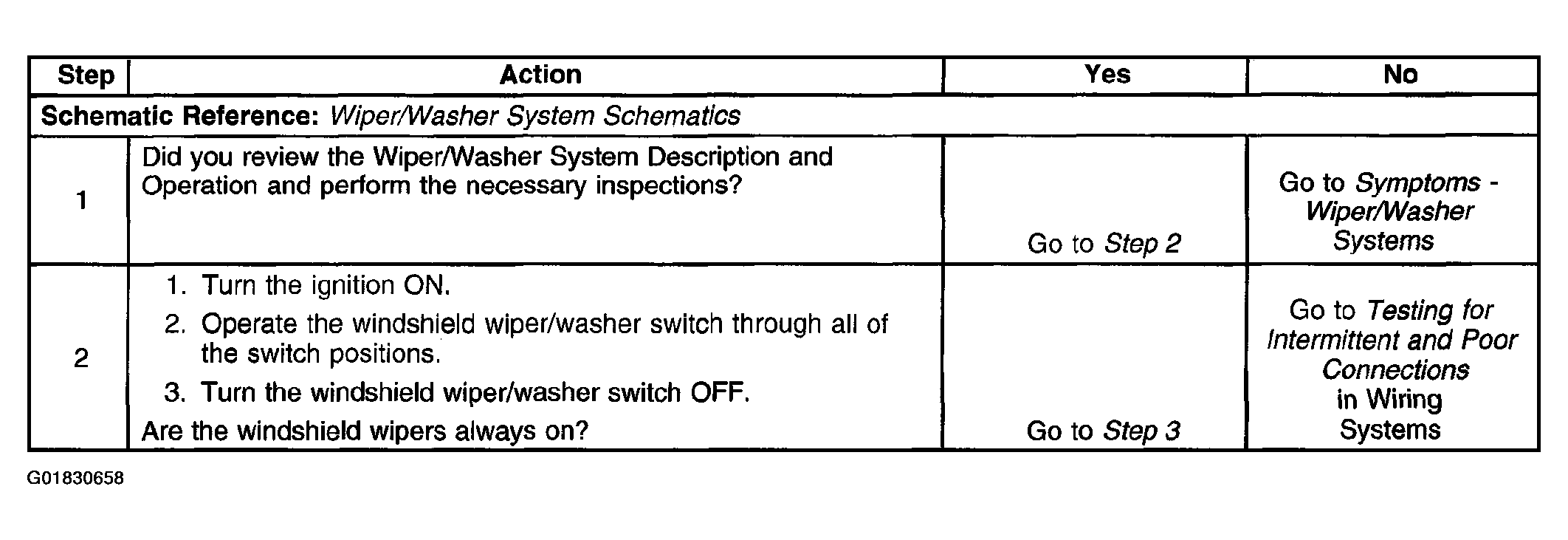

Fig 1: Wipers Always On (Steps 1-2)
G01830658Courtesy of GENERAL MOTORS CORP.

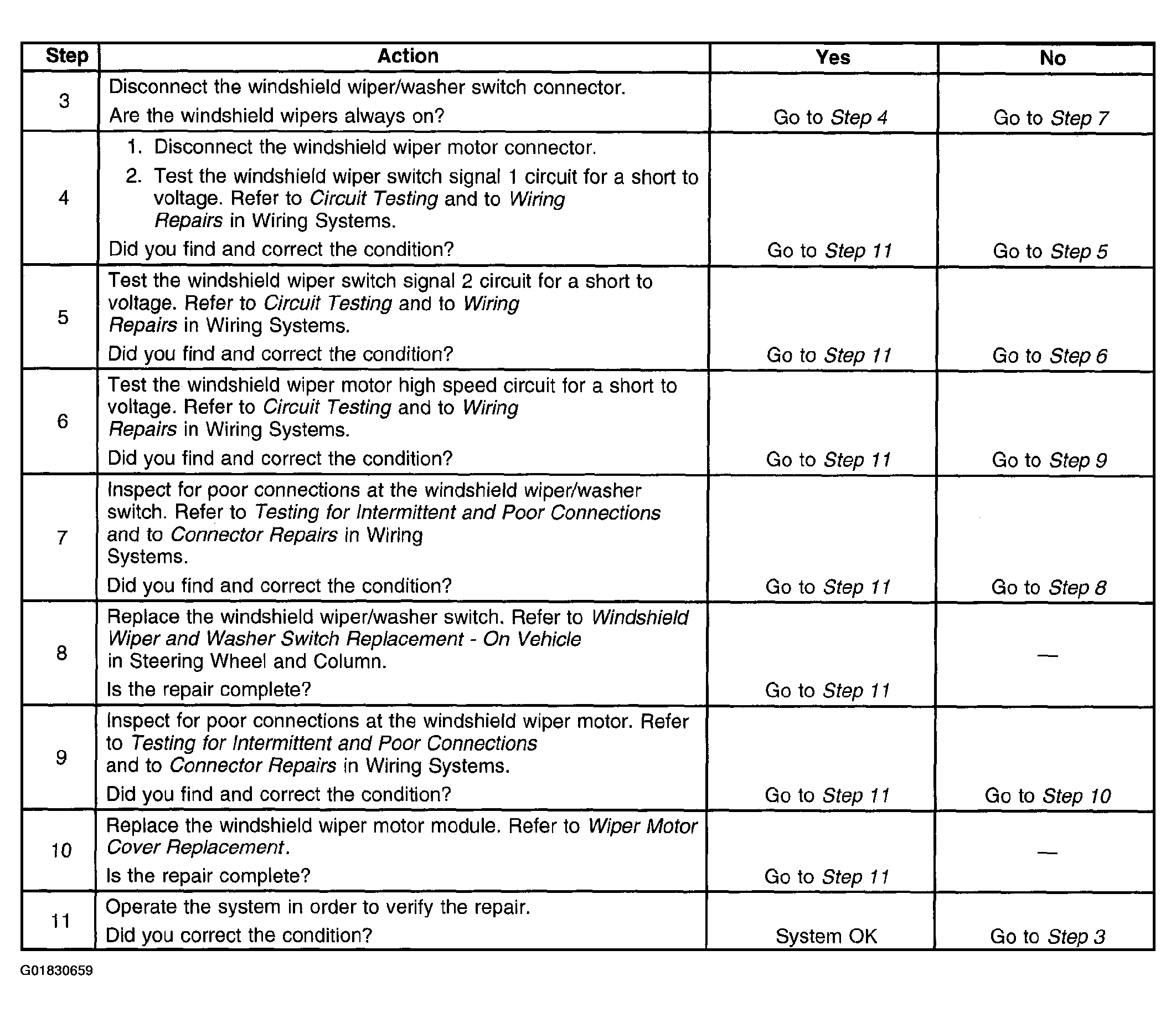

Fig 2: Wipers Always On (Steps 3-11)
G01830659Courtesy of GENERAL MOTORS CORP.
