Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper .
  2. Remove the rear bumper energy absorber. Refer to Energy Absorber Replacement - Rear .
  3. Support the exhaust system.
  4. Remove the tailpipe to rear bumper impact bar insulators.

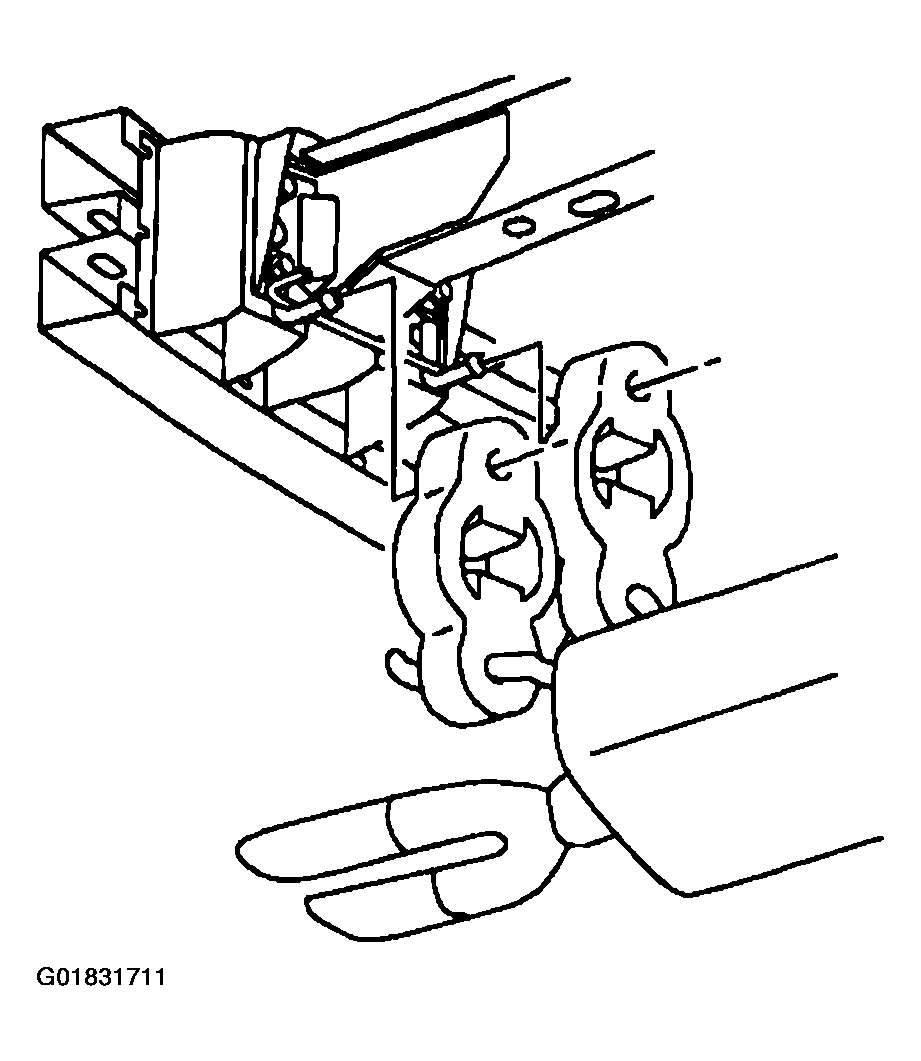

    Fig 1: Removing Rear Bumper Impact Bar To Tailpipe Insulators
    G01831711Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear bumper impact bar to the body bolts.

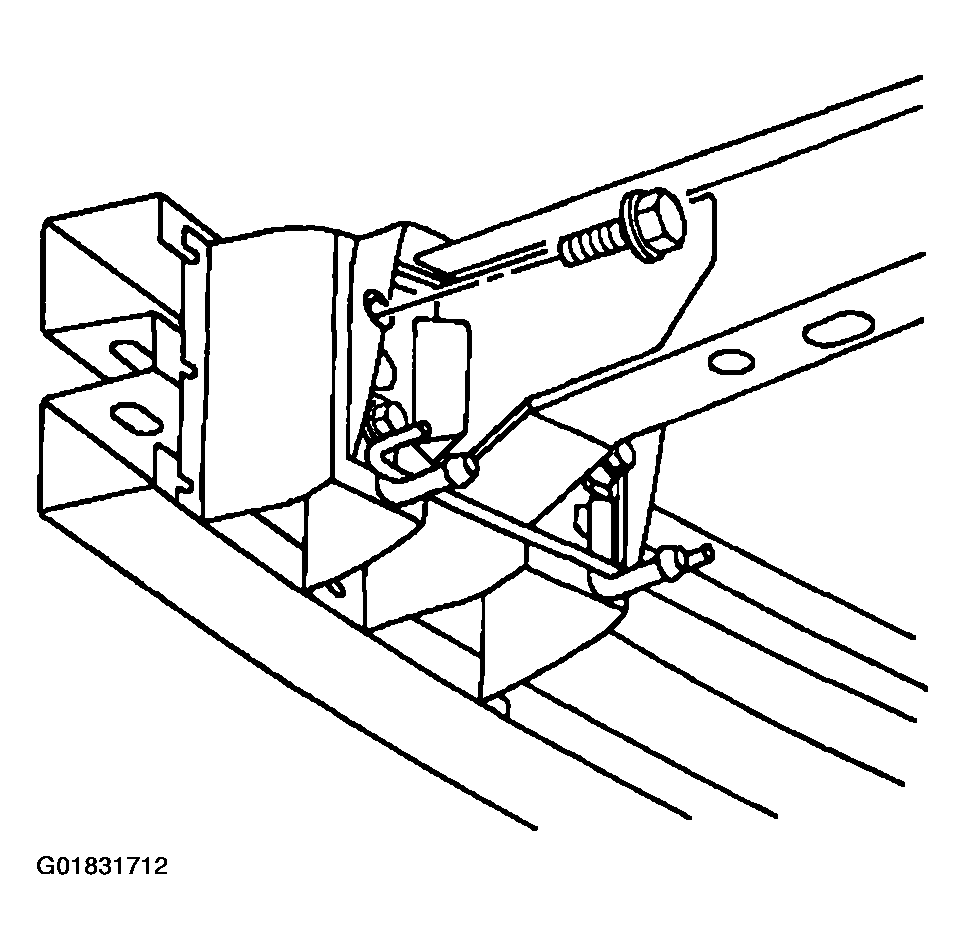

    Fig 2: Removing Rear Bumper Impact Bar & Bolts
    G01831712Courtesy of GENERAL MOTORS CORP.
  6. Remove the rear bumper impact bar from the body.

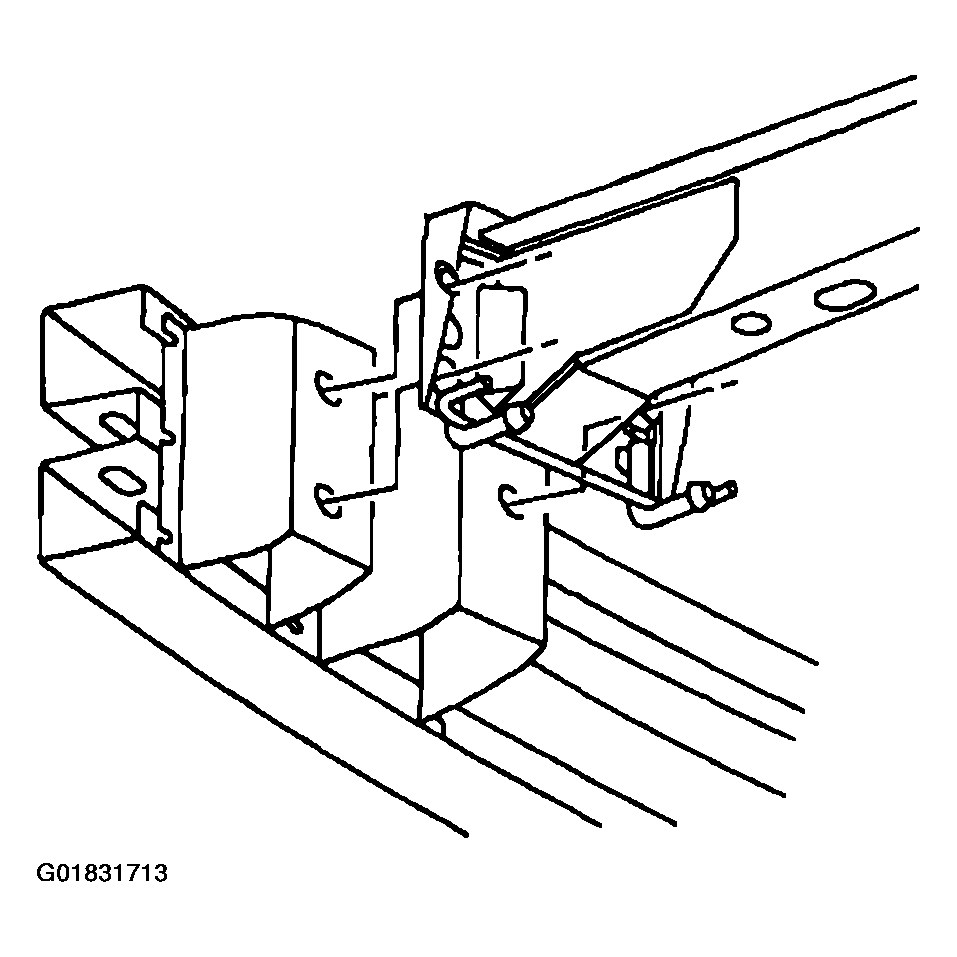

    Fig 3: Removing Rear Bumper Impact Bar From Body
    G01831713Courtesy of GENERAL MOTORS CORP.
