Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear bumper impact bar to the body.

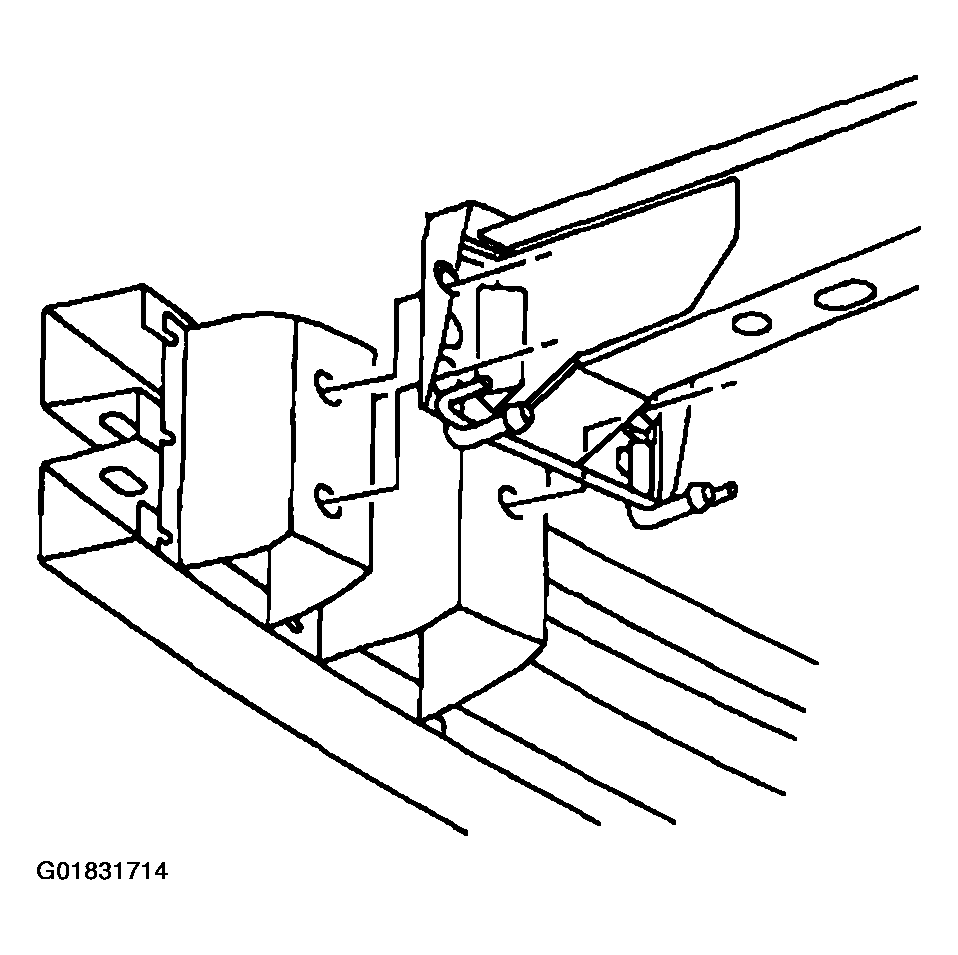

    Fig 1: Installing Rear Bumper Impact Bar To Body
    G01831714Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the rear bumper impact bar to body bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

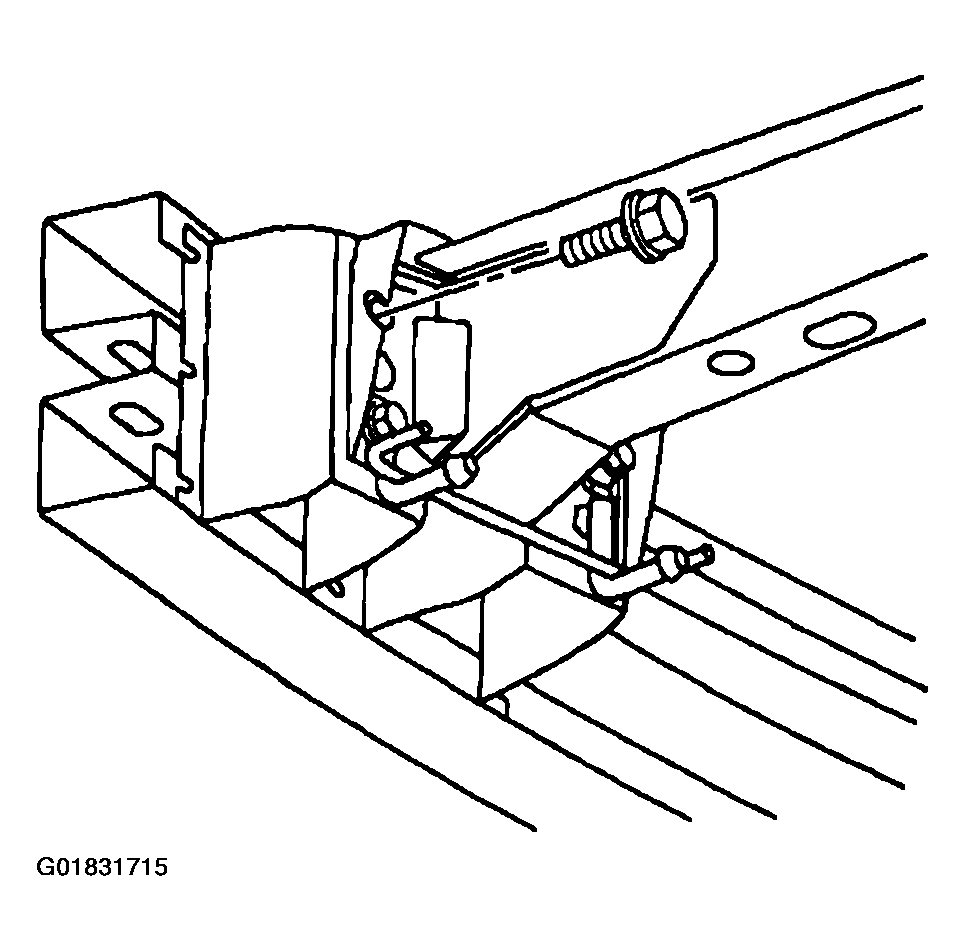

    Fig 2: Installing Rear Bumper Impact Bar & Bolts
    G01831715Courtesy of GENERAL MOTORS CORP.
  3. Install the rear bumper impact bar to tailpipe insulators.
  4. Remove the exhaust system support.
  5. Install the rear bumper energy absorber. Refer to Energy Absorber Replacement - Rear .
  6. Install the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper .

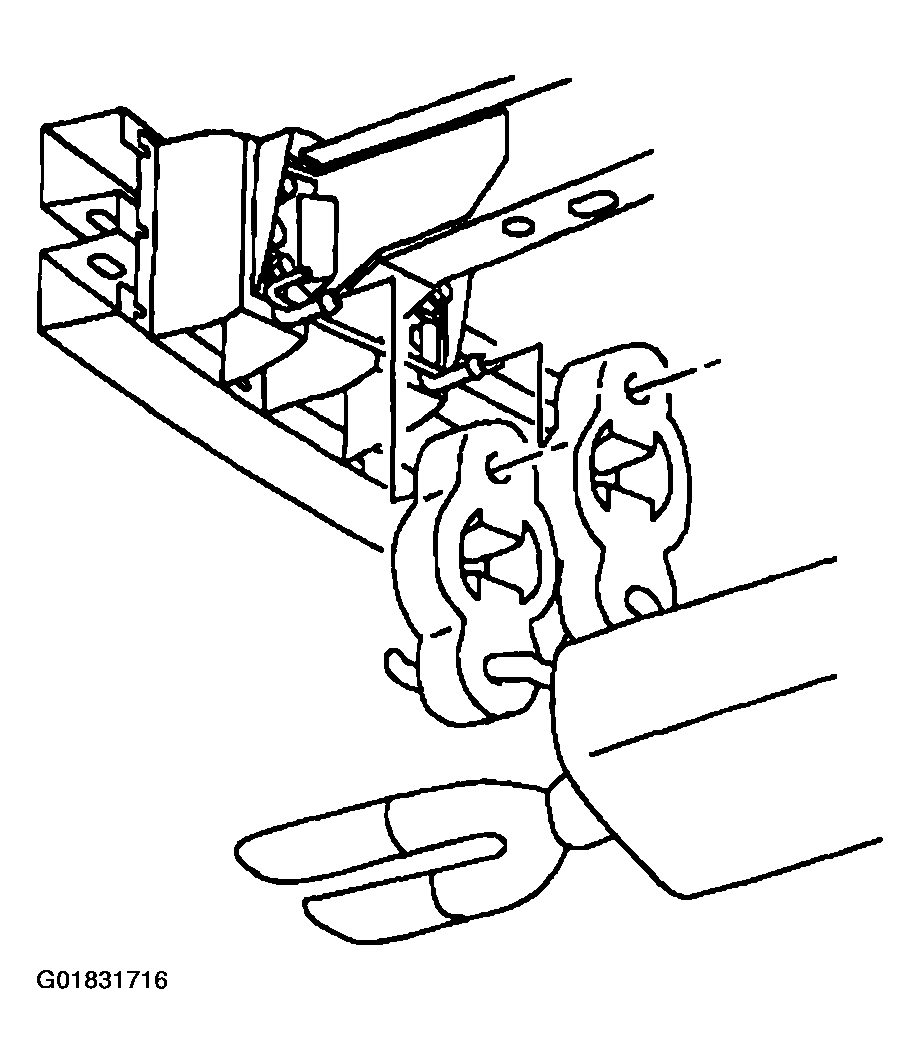

    Fig 3: Installing Rear Bumper Impact Bar To Tailpipe Insulators
    G01831716Courtesy of GENERAL MOTORS CORP.
