Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to Fascia Replacement - Front Bumper .
  2. Remove the front bumper energy absorber. Refer to Energy Absorber Replacement - Front .
  3. Remove the wiring harness from the rear of the front bumper impact bar.

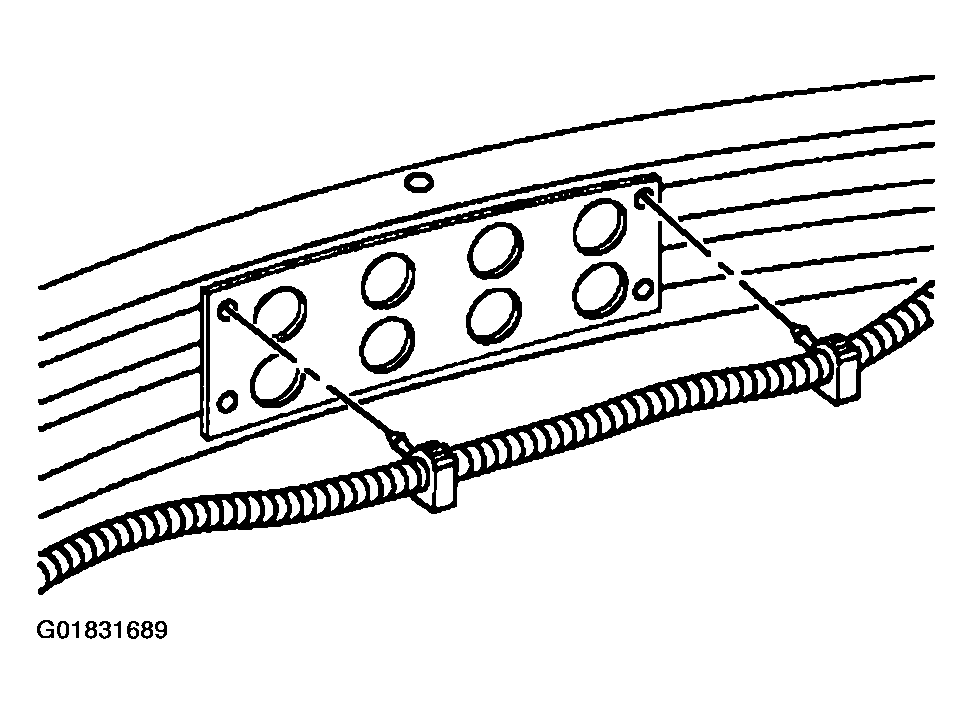

    Fig 1: Removing Wiring Harness From Front Bumper Impact Bar
    G01831689Courtesy of GENERAL MOTORS CORP.
  4. Remove the fog lamps. Refer to FOG LAMP REPLACEMENT - FRONT .
  5. Remove the horn assembly. Refer to HORN REPLACEMENT .
  6. Remove the front bumper impact bar to body bolts.

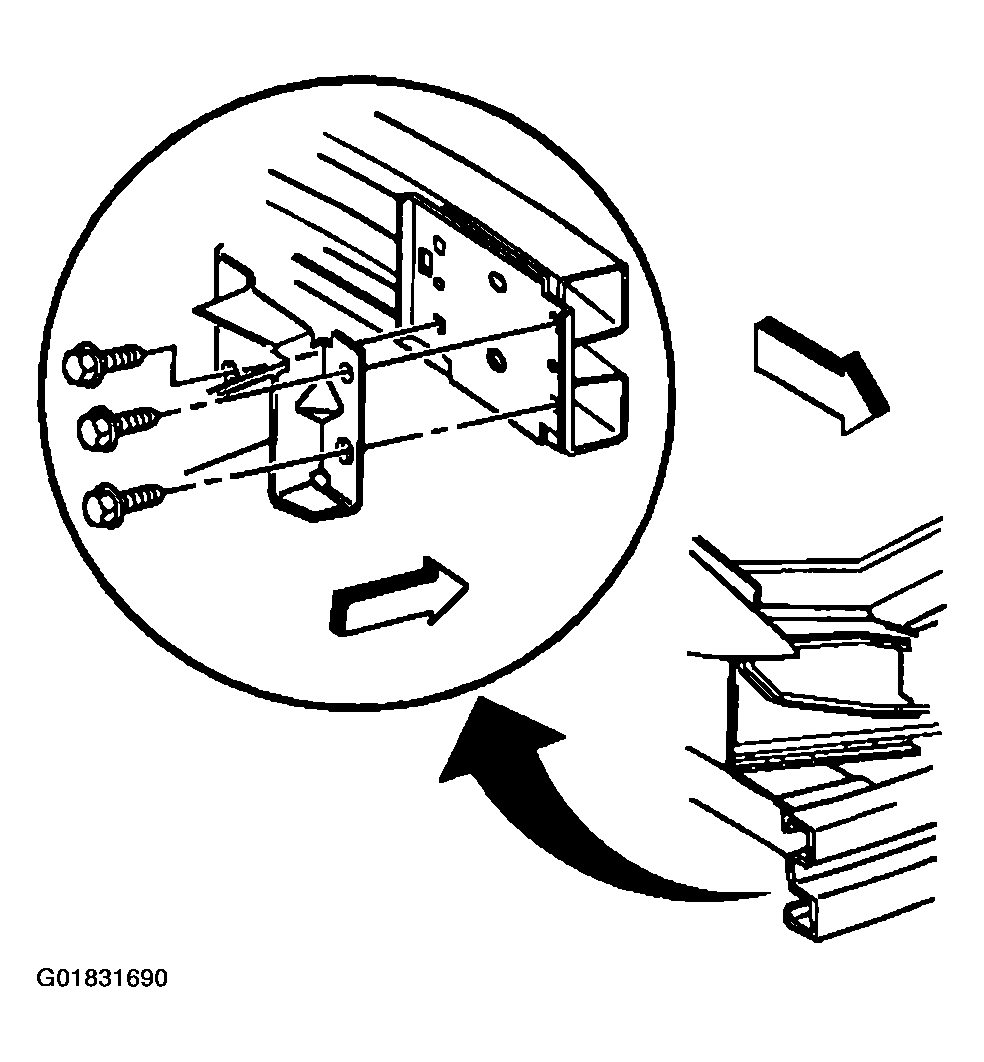

    Fig 2: Removing Front Impact Bar & Bolts
    G01831690Courtesy of GENERAL MOTORS CORP.
  7. Remove the front bumper impact bar from the body.

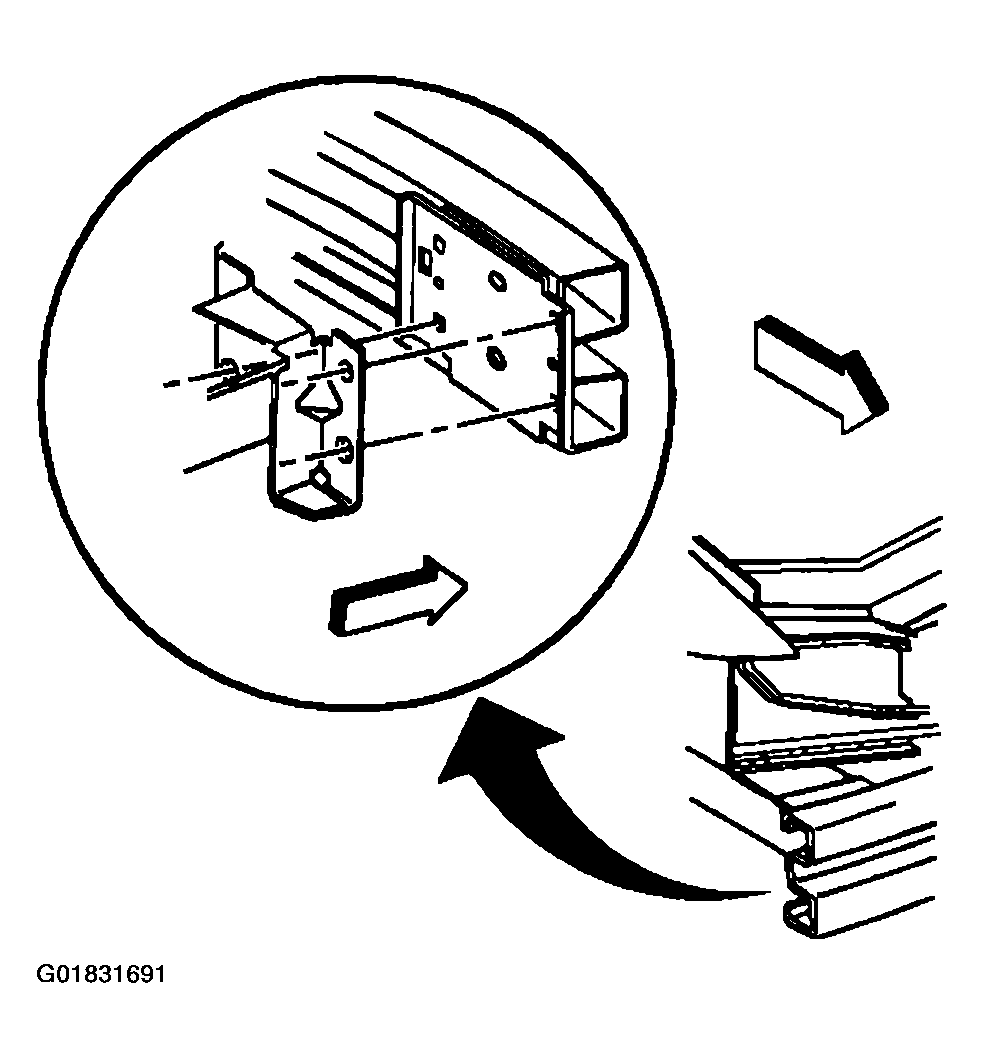

    Fig 3: Removing Front Bumper Impact Bar From Body
    G01831691Courtesy of GENERAL MOTORS CORP.
