Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front bumper impact bar to the body.

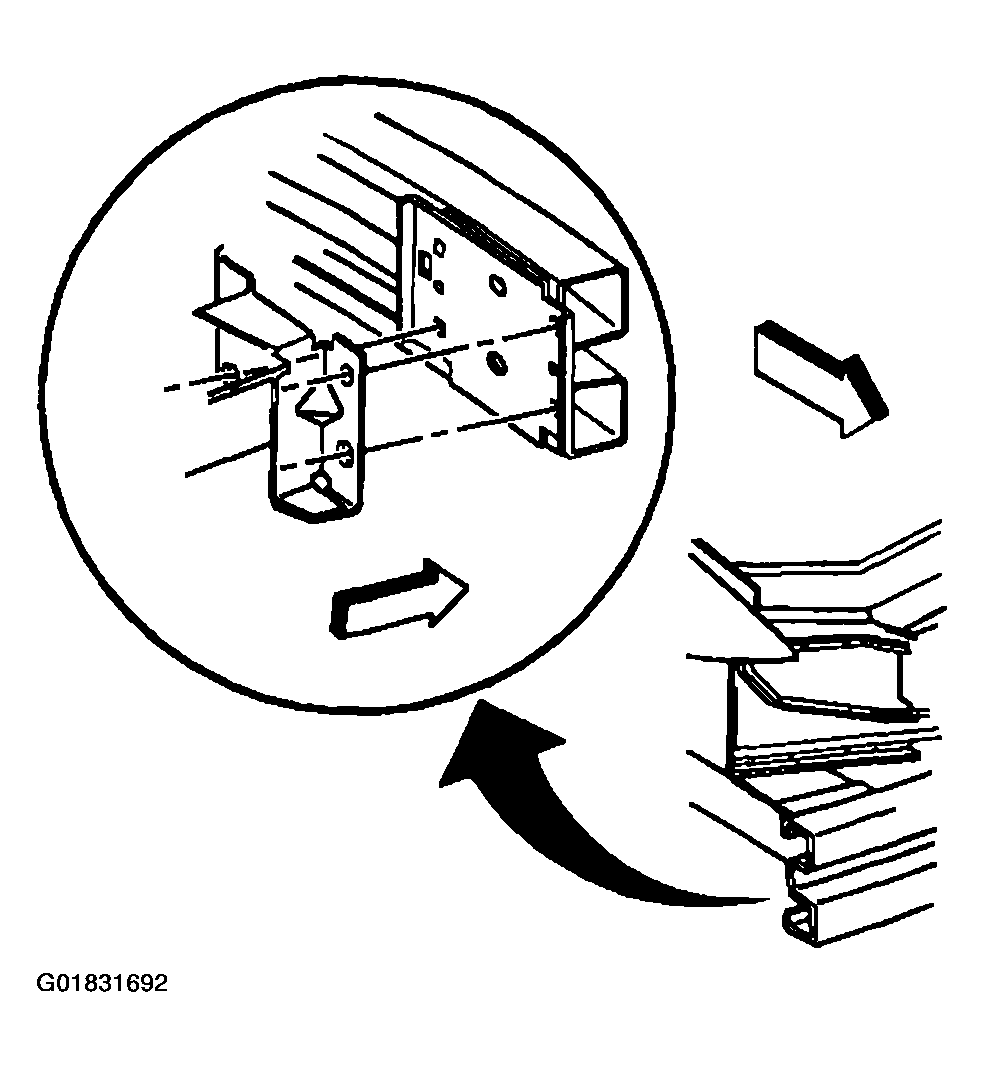

    Fig 1: Installing Front Bumper Impact Bar To Body
    G01831692Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the front bumper impact bar to body bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

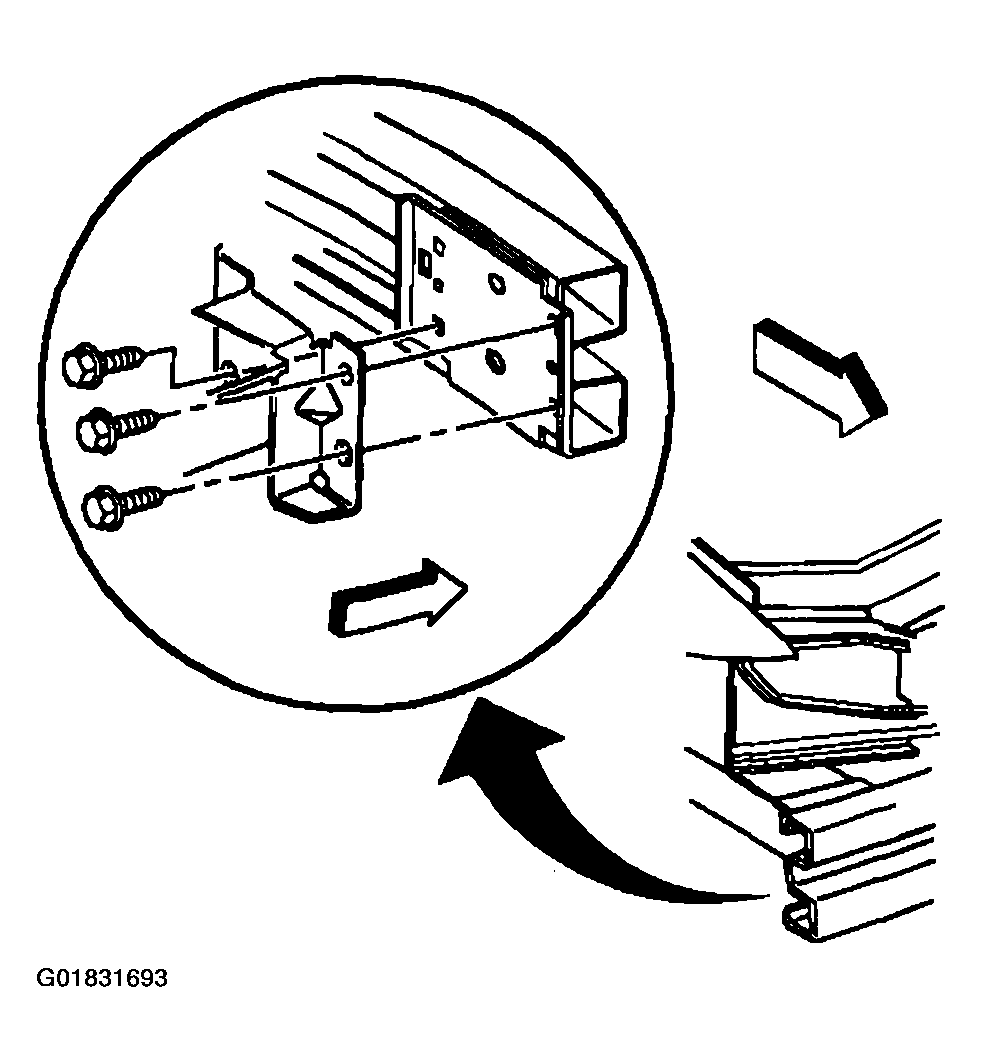

    Fig 2: Installing Front Impact Bar & Bolts
    G01831693Courtesy of GENERAL MOTORS CORP.
  3. Install the wiring harness to rear of the front bumper impact bar.
  4. Install the horn assembly. Refer to HORN REPLACEMENT .
  5. Install the fog lamps. Refer to FOG LAMP REPLACEMENT - FRONT .
  6. Install the front bumper energy absorber. Refer to Energy Absorber Replacement - Front .
  7. Install the front bumper fascia. Refer to Fascia Replacement - Front Bumper .

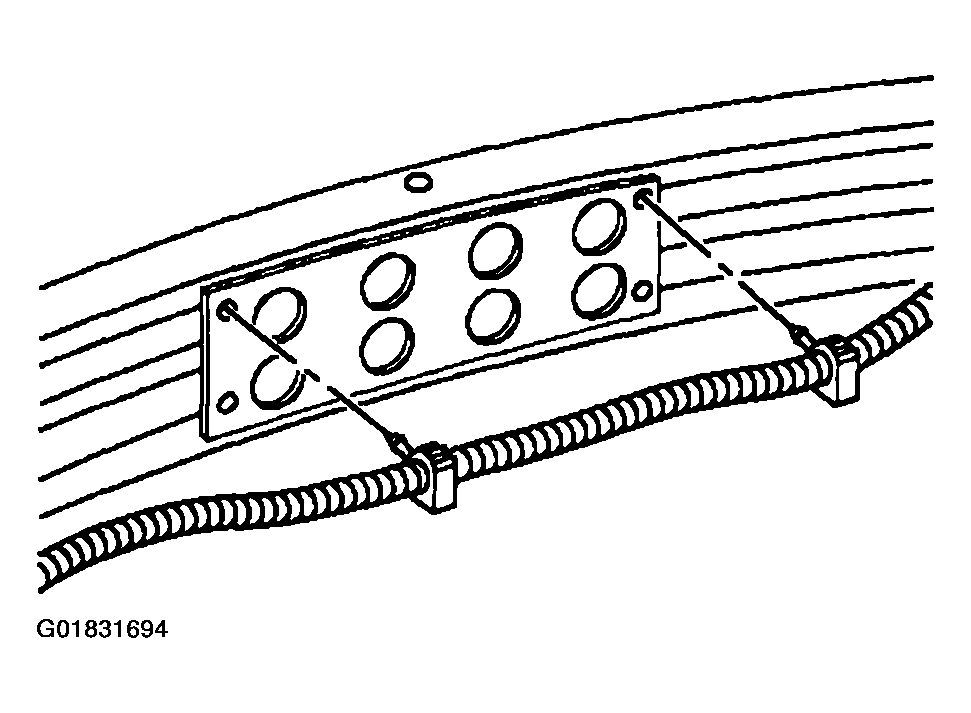

    Fig 3: Installing Wiring Harness To Front Bumper Impact Bar
    G01831694Courtesy of GENERAL MOTORS CORP.
