Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the front fascia deflector bolts.

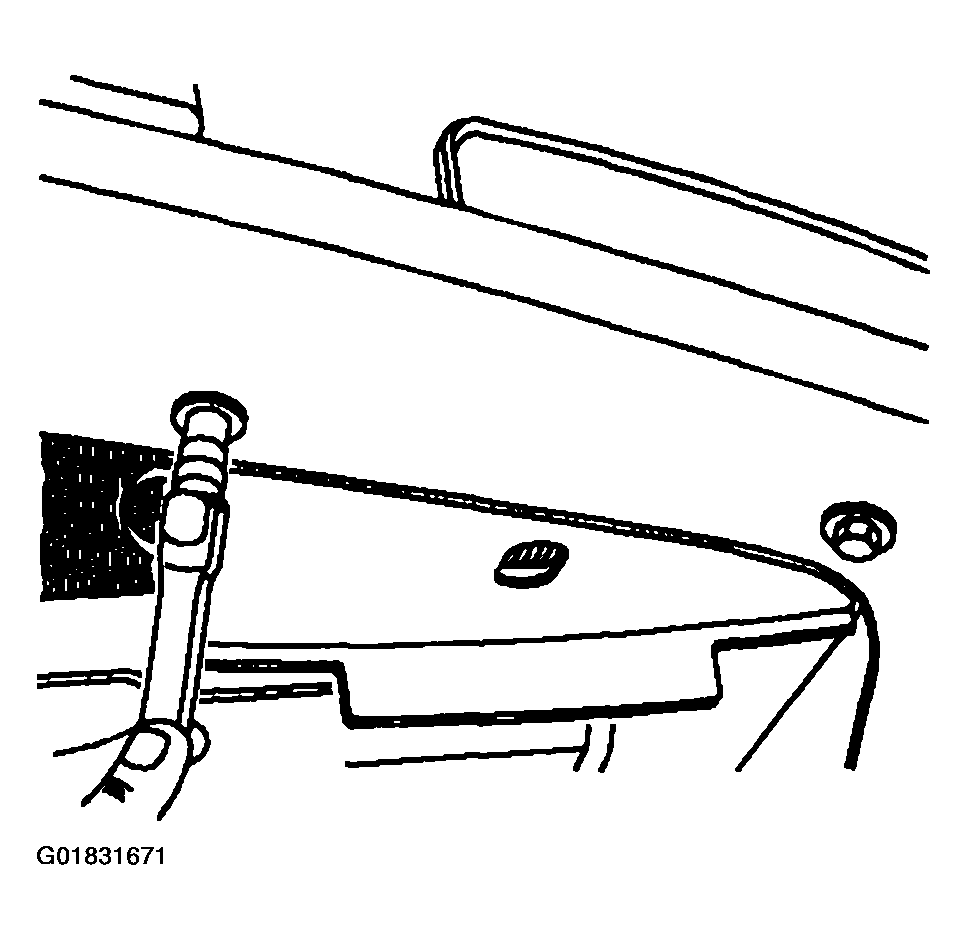

    Fig 1: Removing Front Fascia Deflector Bolts
    G01831671Courtesy of GENERAL MOTORS CORP.
  3. Remove the front fascia deflector from the vehicle.

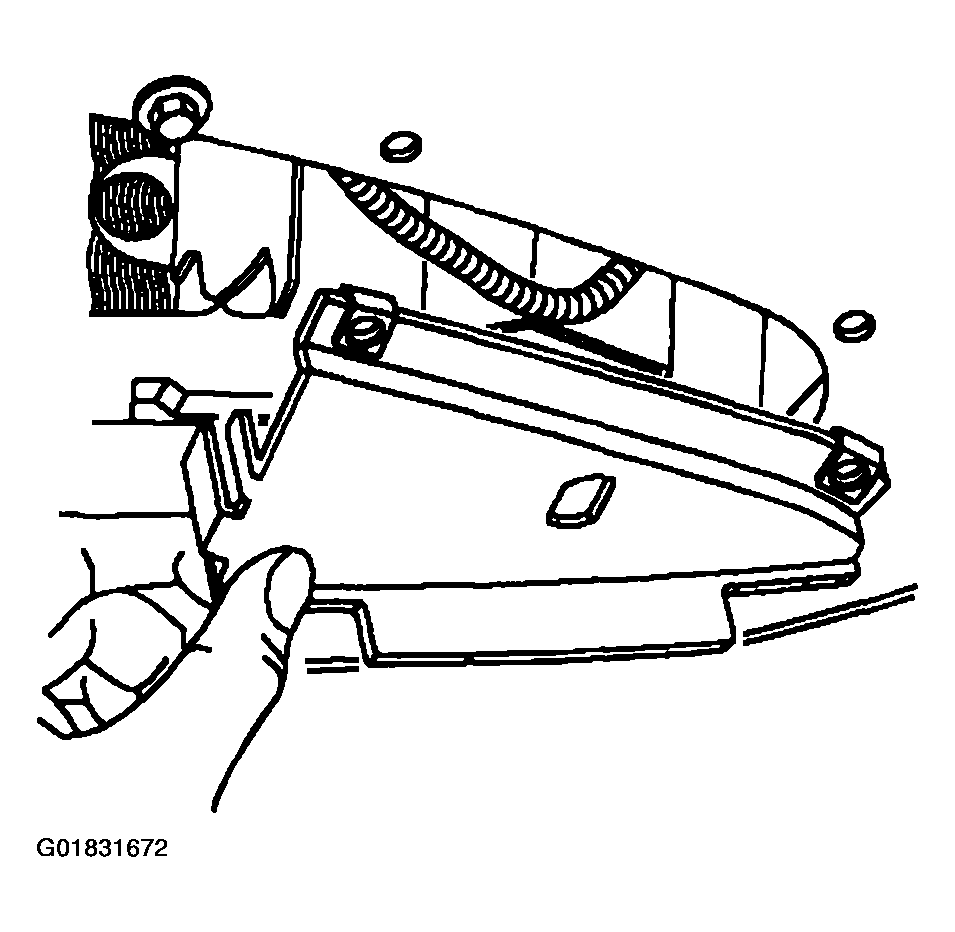

    Fig 2: Removing Front Fascia Deflector
    G01831672Courtesy of GENERAL MOTORS CORP.
