Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front fascia deflector to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the front fascia deflector bolts.

    Tighten

    Tighten the front fascia deflector bolts to 4 N.m (35 lb in).

  3. Lower the vehicle.

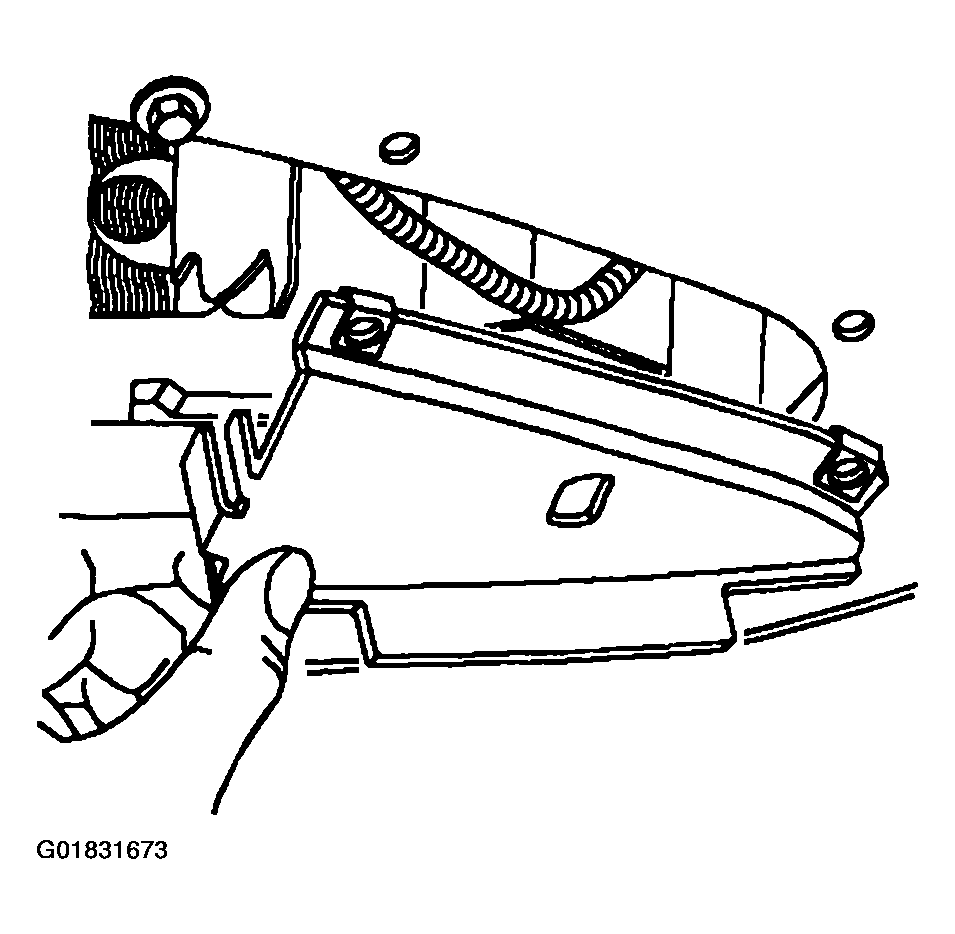

    Fig 1: Installing Front Fascia Deflector & Bolts
    G01831673Courtesy of GENERAL MOTORS CORP.
