Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper .
  2. Use the J 38778  to remove the rear bumper fascia to rear bumper fascia outer support push-in-retainers.
  3. Remove the rear bumper fascia outer support from the rear bumper fascia.

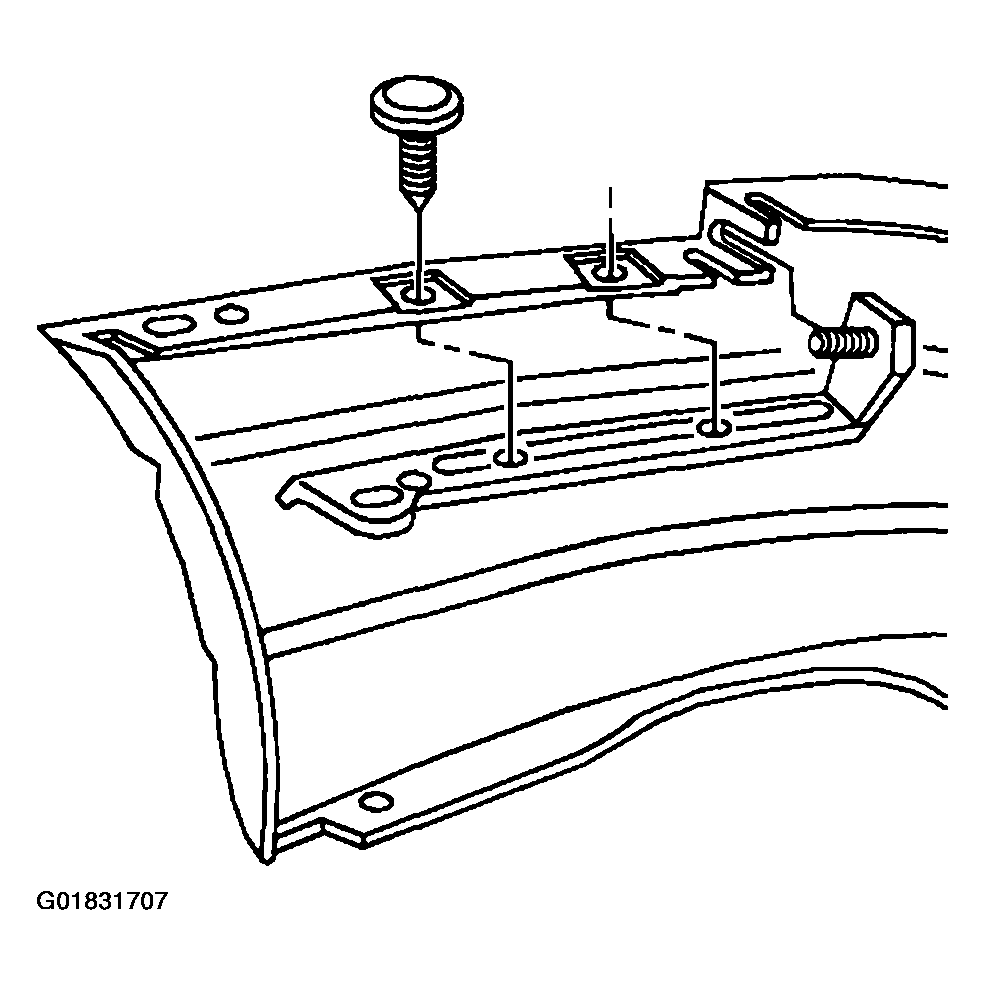

    Fig 1: Removing Bumper Fascia Outer Support From Rear Bumper Fascia
    G01831707Courtesy of GENERAL MOTORS CORP.
