Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When removing body panels, apply tape to corners of panel and adjacent surfaces to help prevent paint damage.
  1. Install the rear bumper fascia outer support to the rear bumper fascia.
  2. Install the rear bumper fascia outer support to rear bumper fascia push-in-retainers.
  3. Install the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper .

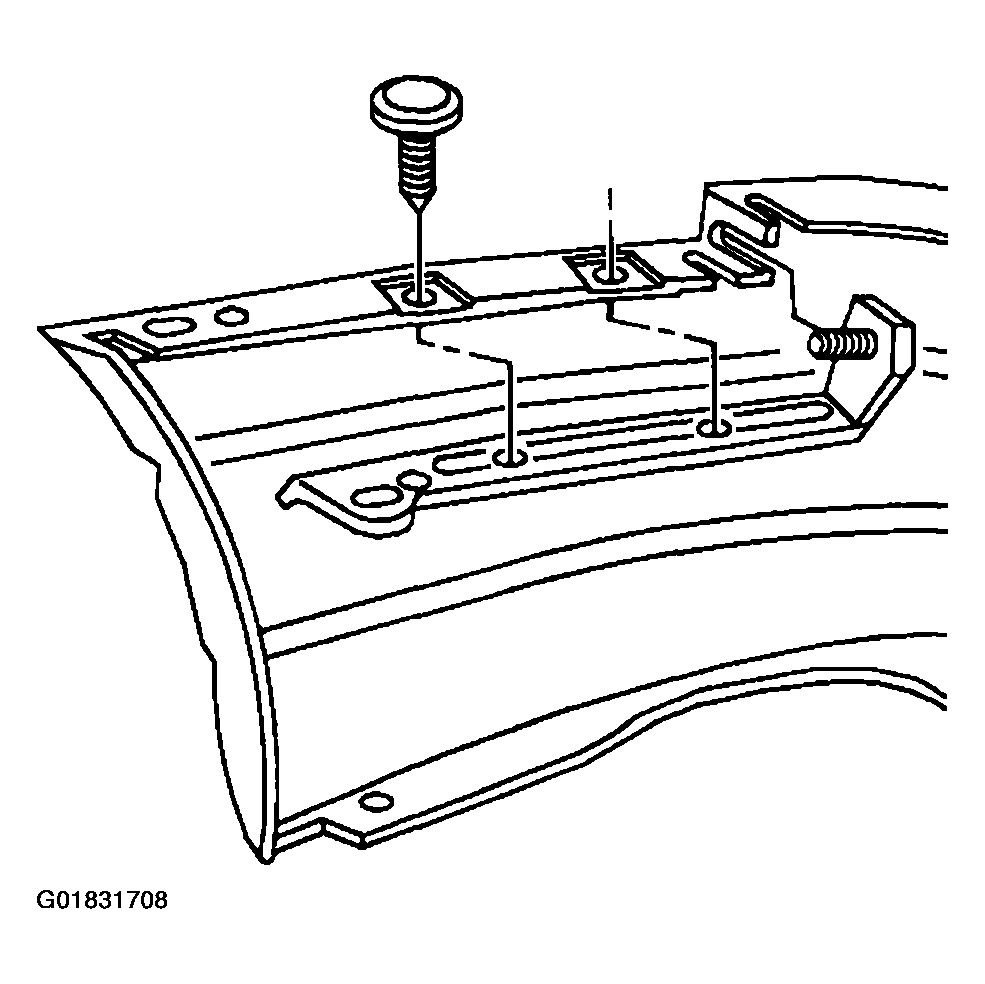

    Fig 1: Installing Rear Bumper Fascia Outer Support To Rear Bumper Fascia
    G01831708Courtesy of GENERAL MOTORS CORP.
