Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to Fascia Replacement - Front Bumper .
  2. Remove the front bumper fascia upper support to center radiator support bolts.
  3. Remove the front bumper fascia upper support to radiator flange bolts.
  4. Remove the front bumper fascia upper support from the radiator support.

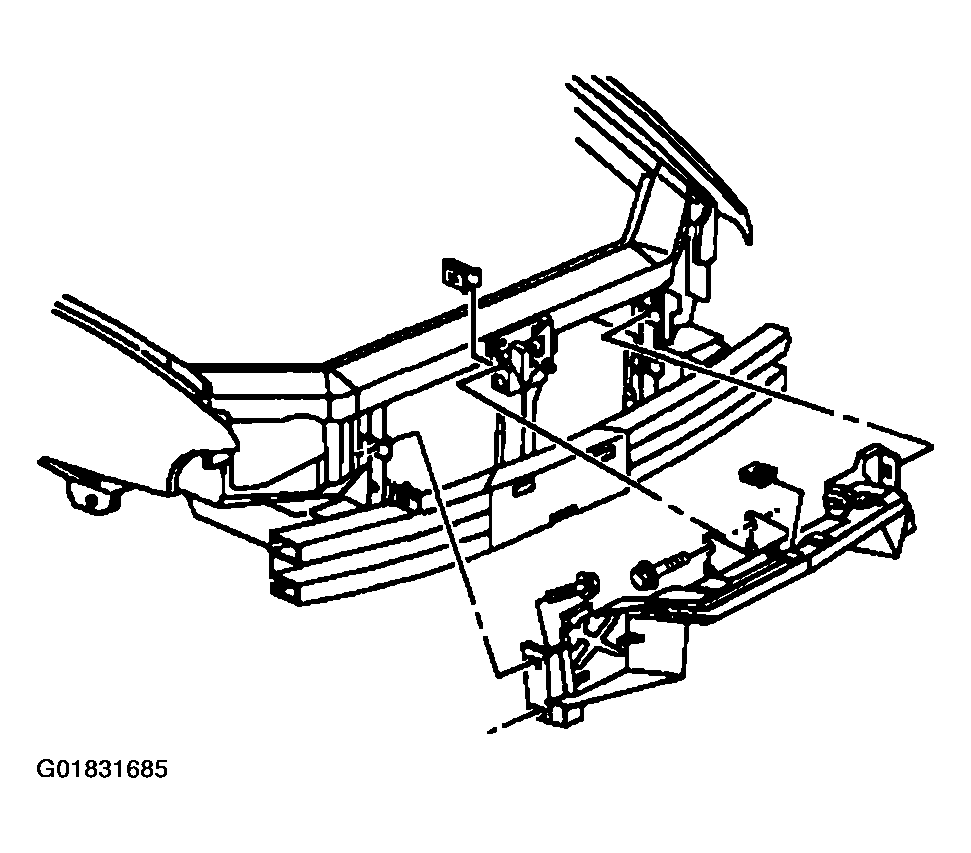

    Fig 1: Removing Front Bumper Upper Support & Bolts
    G01831685Courtesy of GENERAL MOTORS CORP.
