Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front bumper fascia upper support to radiator support.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the front bumper fascia upper support to radiator support flange bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  3. Install the front bumper fascia to upper support to center radiator support bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  4. Install the front bumper fascia. Refer to Fascia Replacement - Front Bumper .

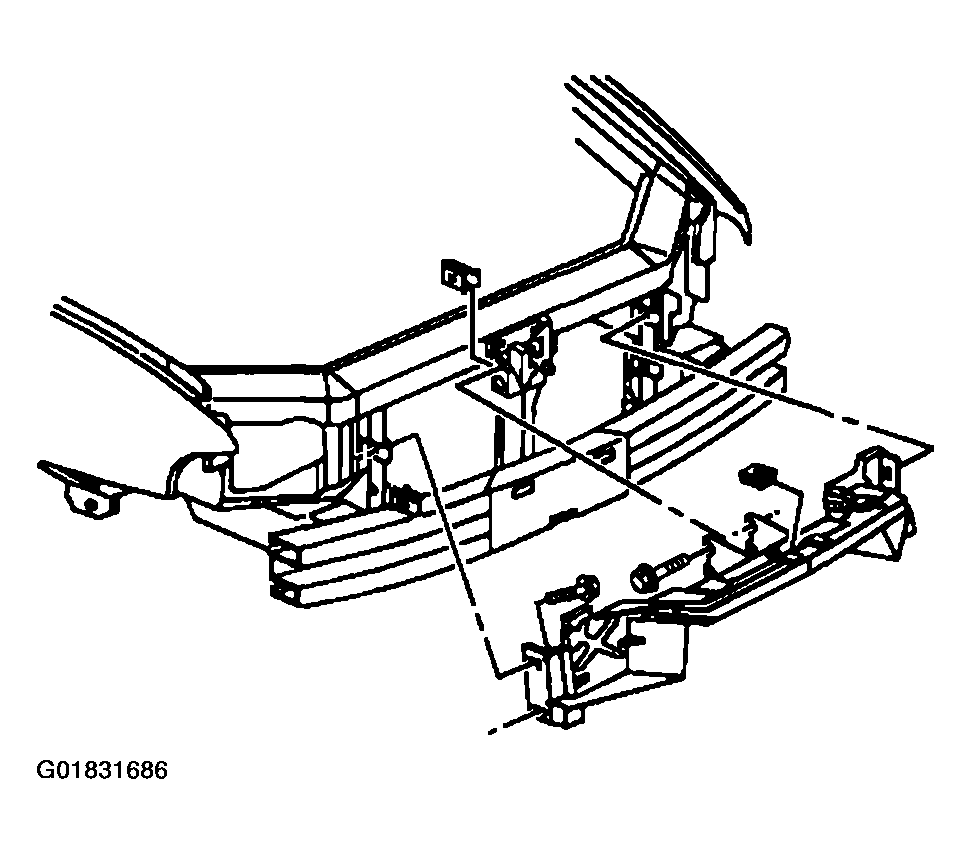

    Fig 1: Installing Front Bumper Upper Support & Bolts
    G01831686Courtesy of GENERAL MOTORS CORP.
