Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia lower support to fog lamp nuts.
  2. Remove the front bumper fascia screws from the front bumper fascia lower support.
  3. Remove the front bumper fascia lower support from the fog lamp.

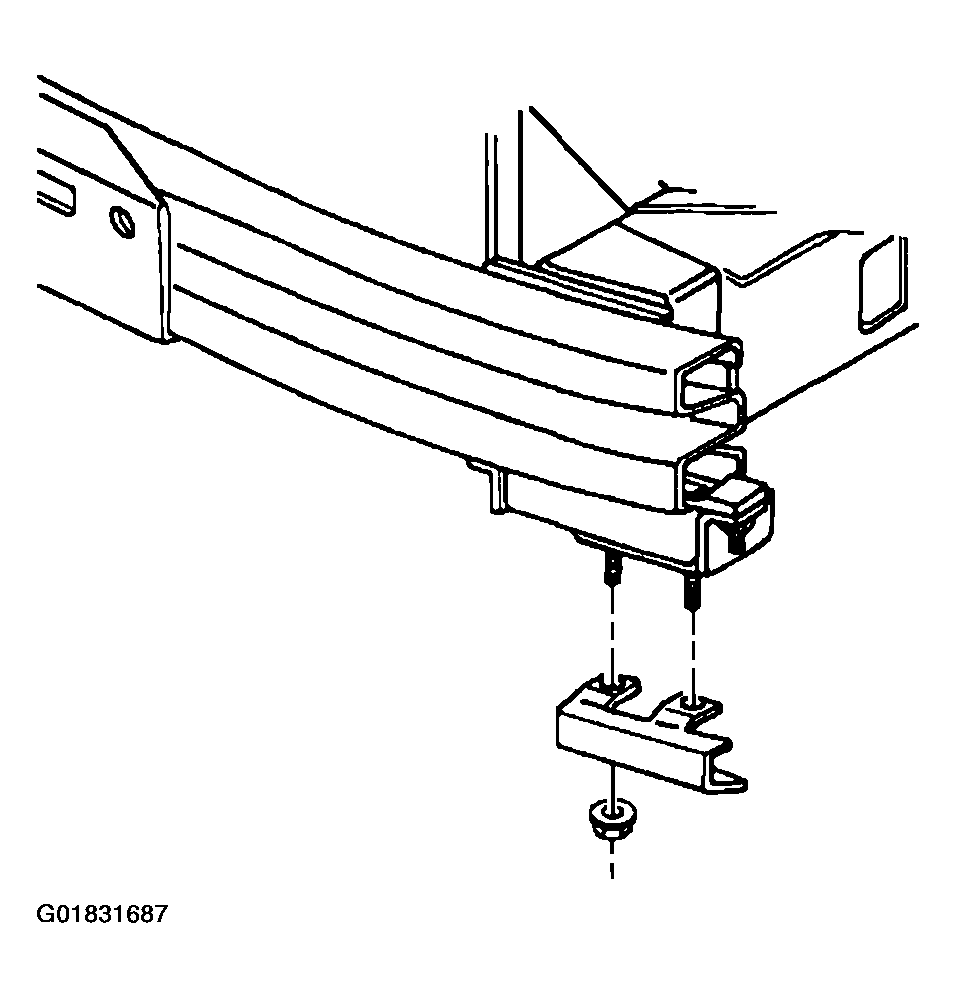

    Fig 1: Removing Front Bumper Lower Support & Screws
    G01831687Courtesy of GENERAL MOTORS CORP.
