Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front bumper fascia lower support to the fog lamp.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the front bumper fascia lower support to fog lamp nuts.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

  3. Install the front bumper fascia screws to front bumper fascia lower support.

    Tighten

    Tighten the front bumper fascia screws to 2 N.m (18 lb in).

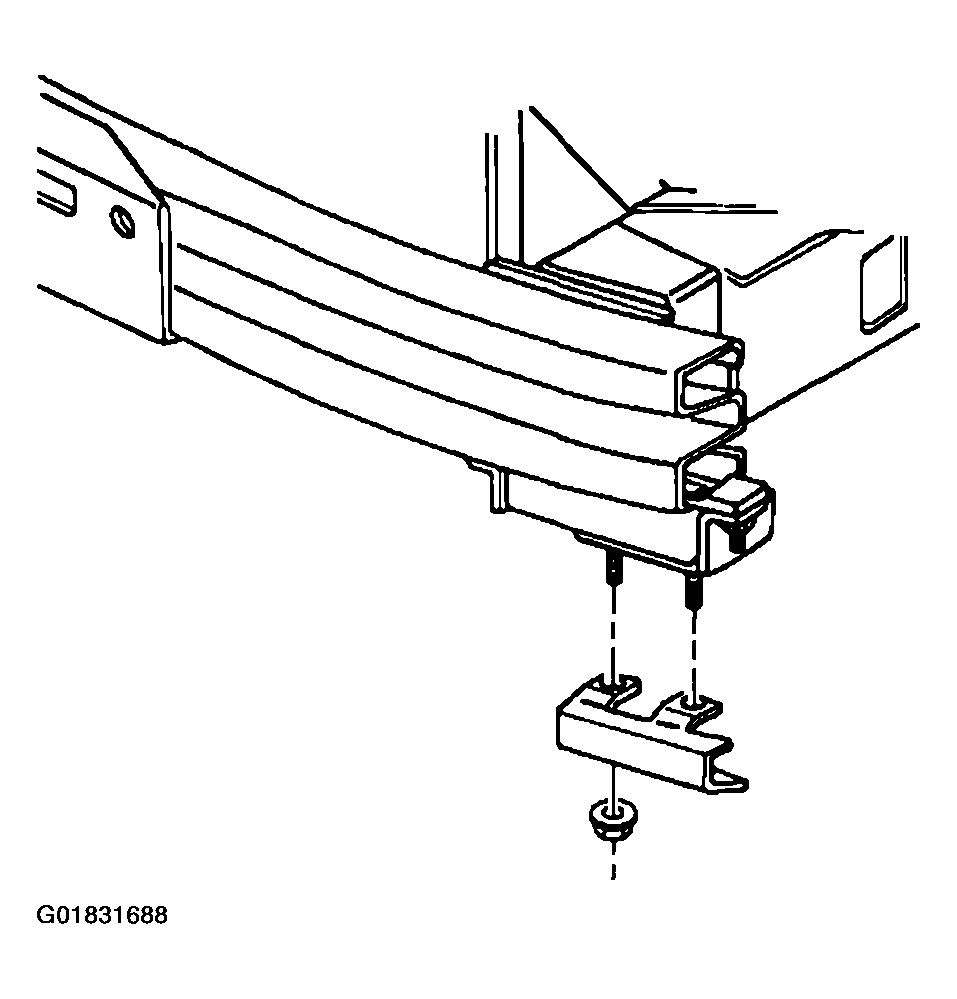

    Fig 1: Installing Front Bumper Lower Support & Screws
    G01831688Courtesy of GENERAL MOTORS CORP.
