Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear bumper fascia to the vehicle.

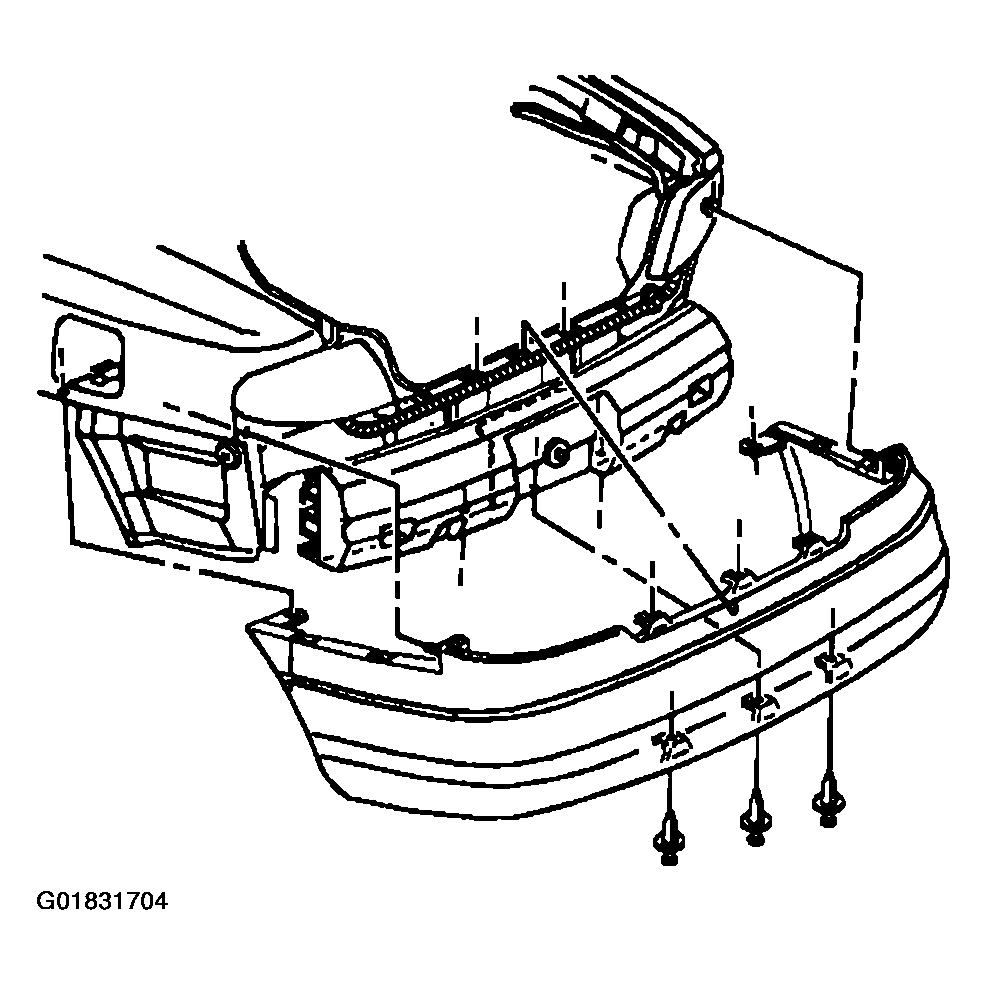

Fig 1: Installing Rear Bumper Fascia To Vehicle
Courtesy of GENERAL MOTORS CORP.
Install the rear bumper fascia to rear end panel push-in-retainer.
NOTE: Refer to FASTENER NOTICE .
Install the rear bumper fascia to rear end panel bolts.
Tighten

Tighten the bolts to 2 N.m (18 lb in).

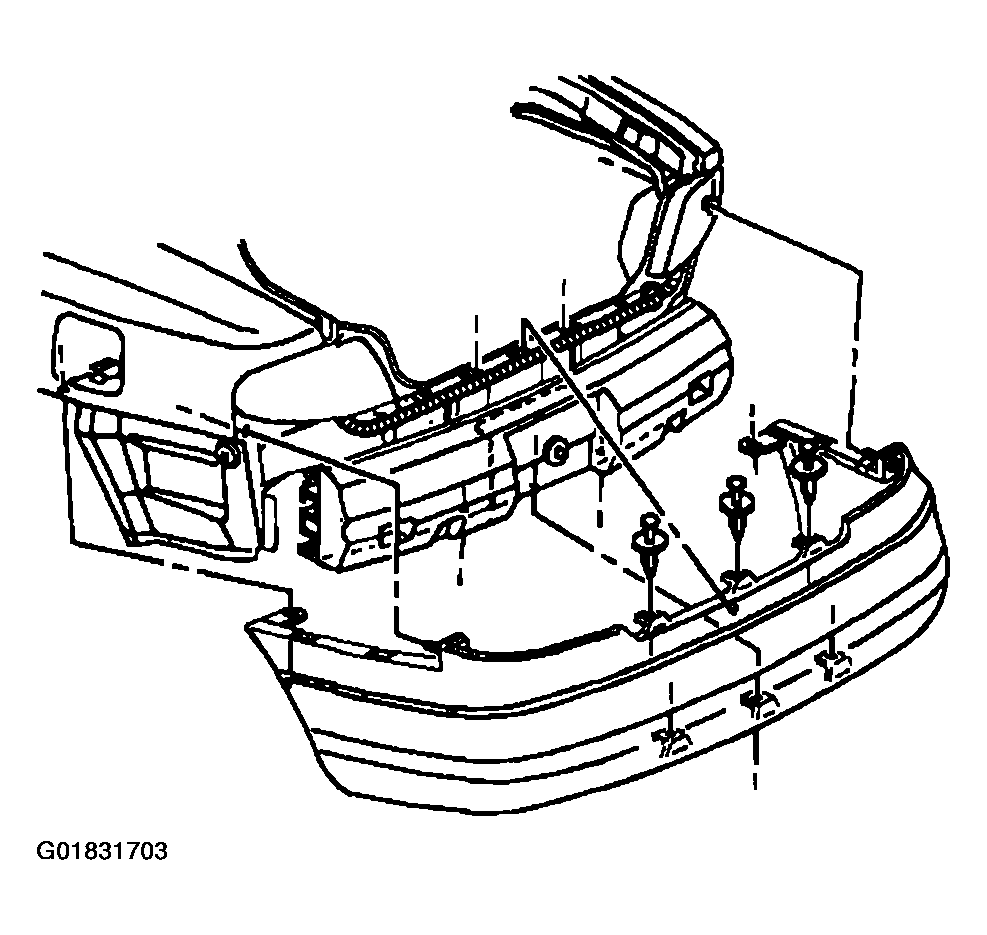

Fig 2: Installing Rear Bumper Fascia & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the rear bumper fascia to rear bumper impact bar push-in-retainers.

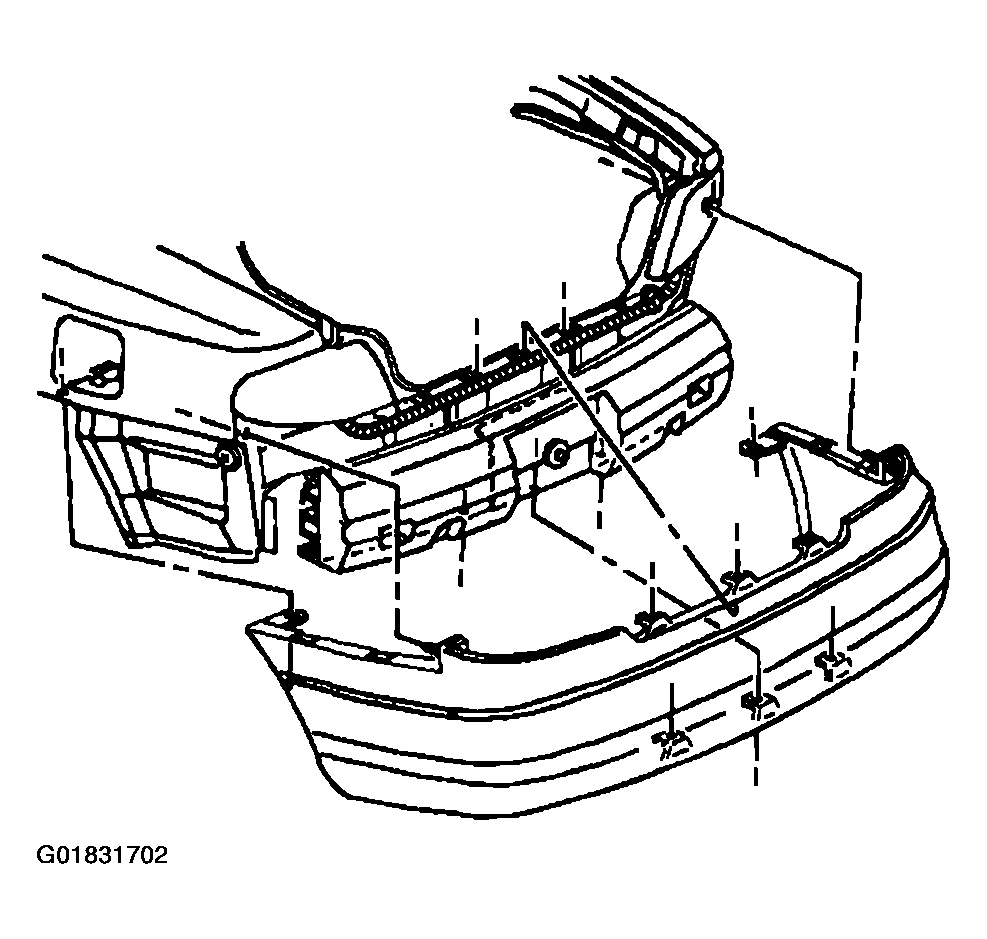

Fig 3: Installing Rear Bumper Fascia & Push -In -Retainers
Courtesy of GENERAL MOTORS CORP.
Install the rear bumper fascia splash shield. Refer to REAR WHEELHOUSE LINER PANEL REPLACEMENT .
Install the rear bumper fascia to rear wheelhouse push-in-retainers.
Install the rear bumper fascia outer support to rear wheelhouse bolts.
Tighten

Tighten the bolts to 5 N.m (44 lb in).

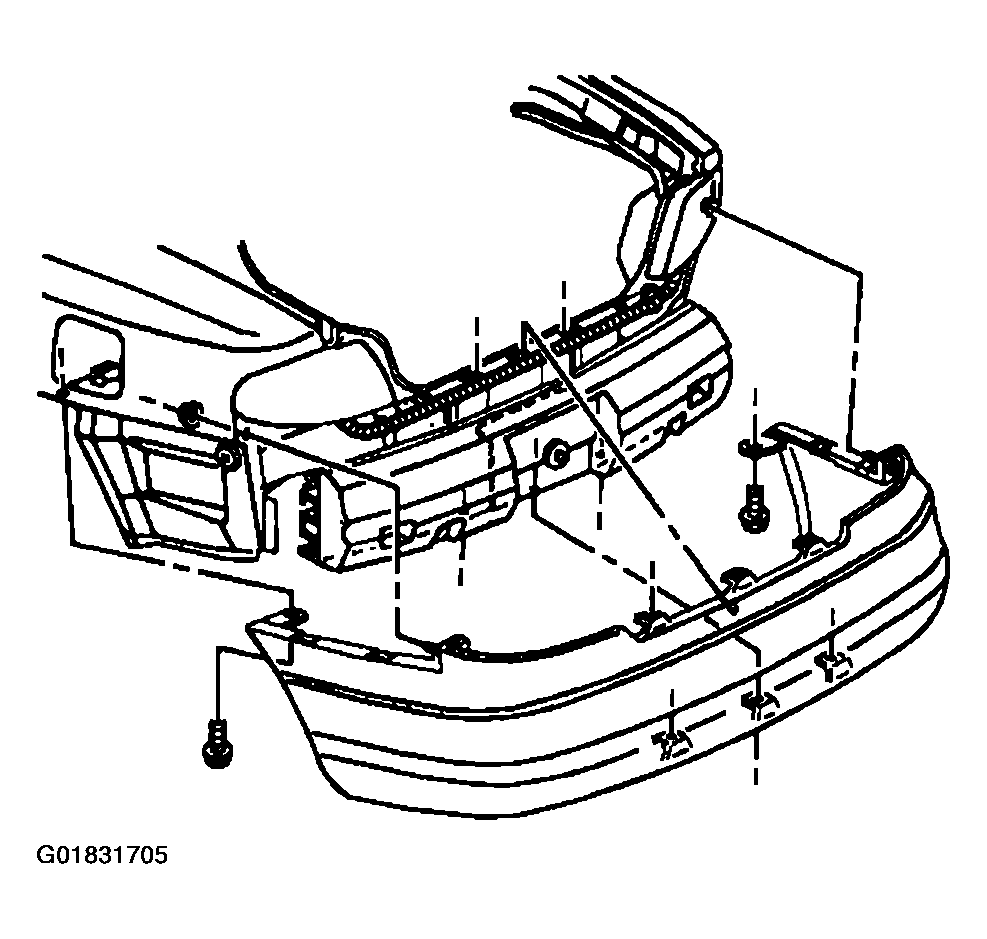

Fig 4: Installing Rear Bumper Fascia Outer Support & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the rear bumper fascia outer support to rear end panel nuts.
Tighten

Tighten the nuts to 5 N.m (44 lb in).
Install the rear compartment trim panel. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .
Install the rear tire and wheel assemblies. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Lower the vehicle.

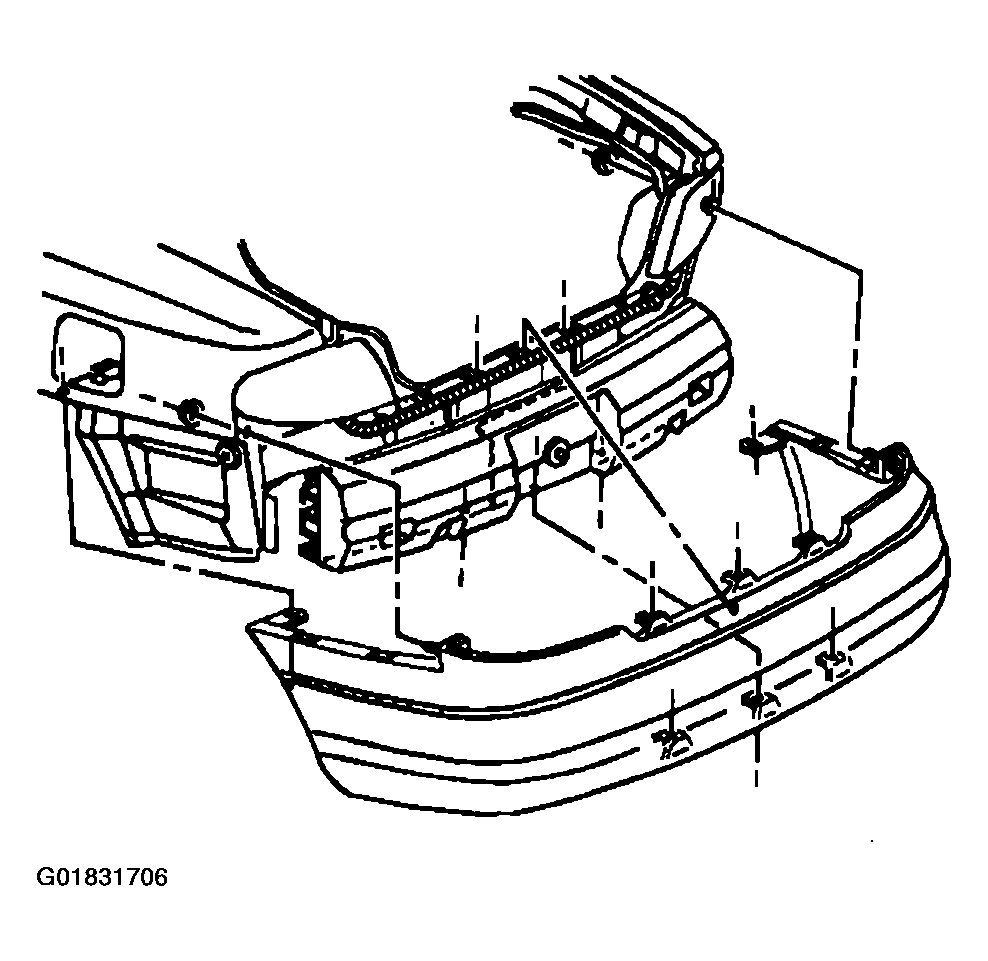

Fig 5: Rear Bumper Fascia Outer Support To Rear End Panel Nuts
Courtesy of GENERAL MOTORS CORP.
