Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper .
  2. Use the J 38778  to remove the rear bumper energy absorber to rear bumper impact bar push-in-retainers.
  3. Remove the rear bumper energy absorber from the rear bumper impact bar.

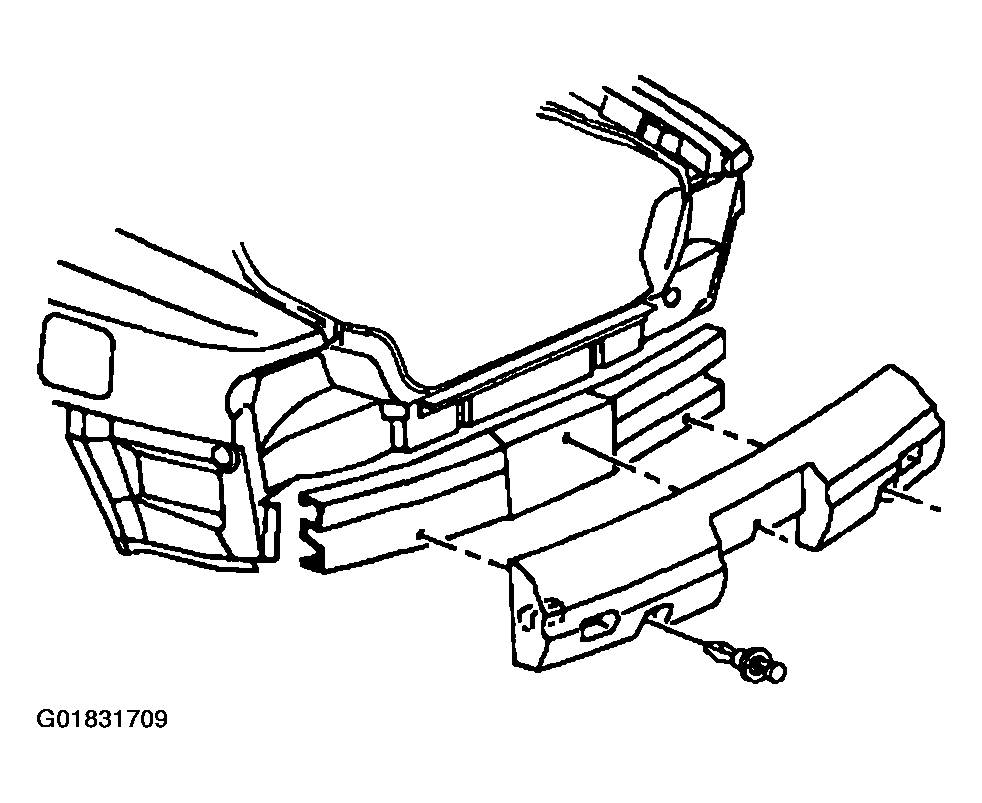

    Fig 1: Removing Rear Bumper Energy Absorber From Rear Bumper Impact Bar
    G01831709Courtesy of GENERAL MOTORS CORP.
