Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear bumper energy absorber to the rear bumper impact bar.
  2. Install the rear bumper energy absorber to rear bumper impact bar push-in-retainers.
  3. Install the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper .

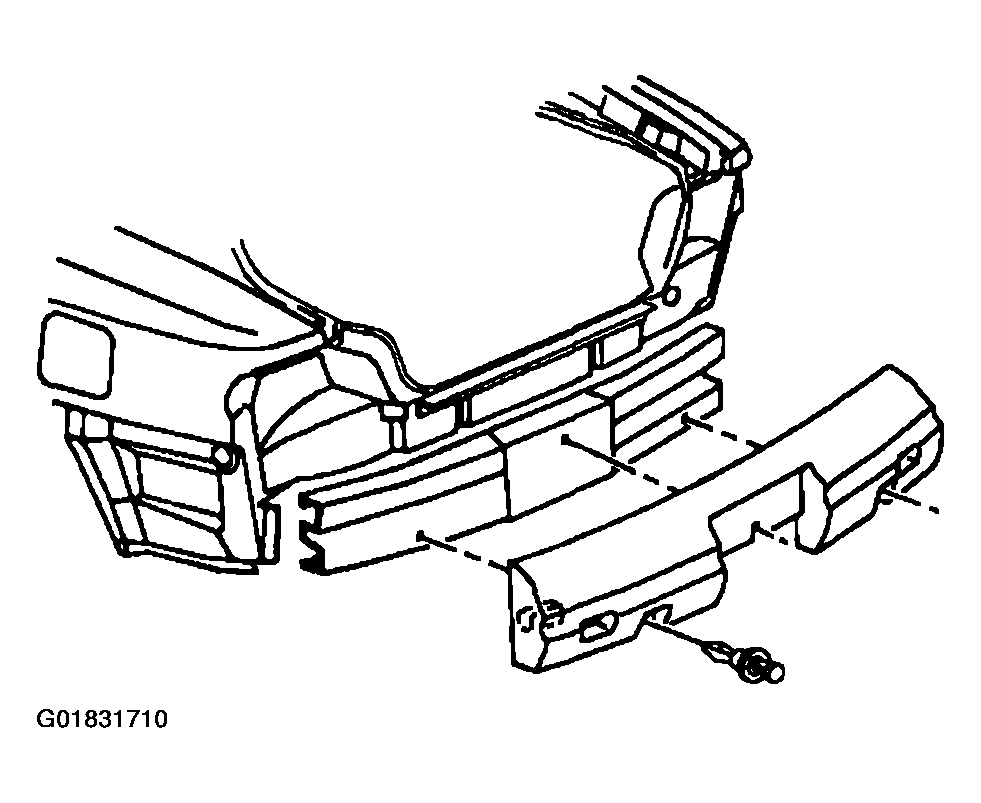

    Fig 1: Installing Rear Bumper Energy Absorber To Rear Bumper Impact Bar
    G01831710Courtesy of GENERAL MOTORS CORP.
