Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to Fascia Replacement - Front Bumper .
  2. Use the J 38778  to remove the front bumper energy absorber to front bumper impact bar push-in-retainers.
  3. Remove the front bumper energy absorber from the front bumper impact bar.

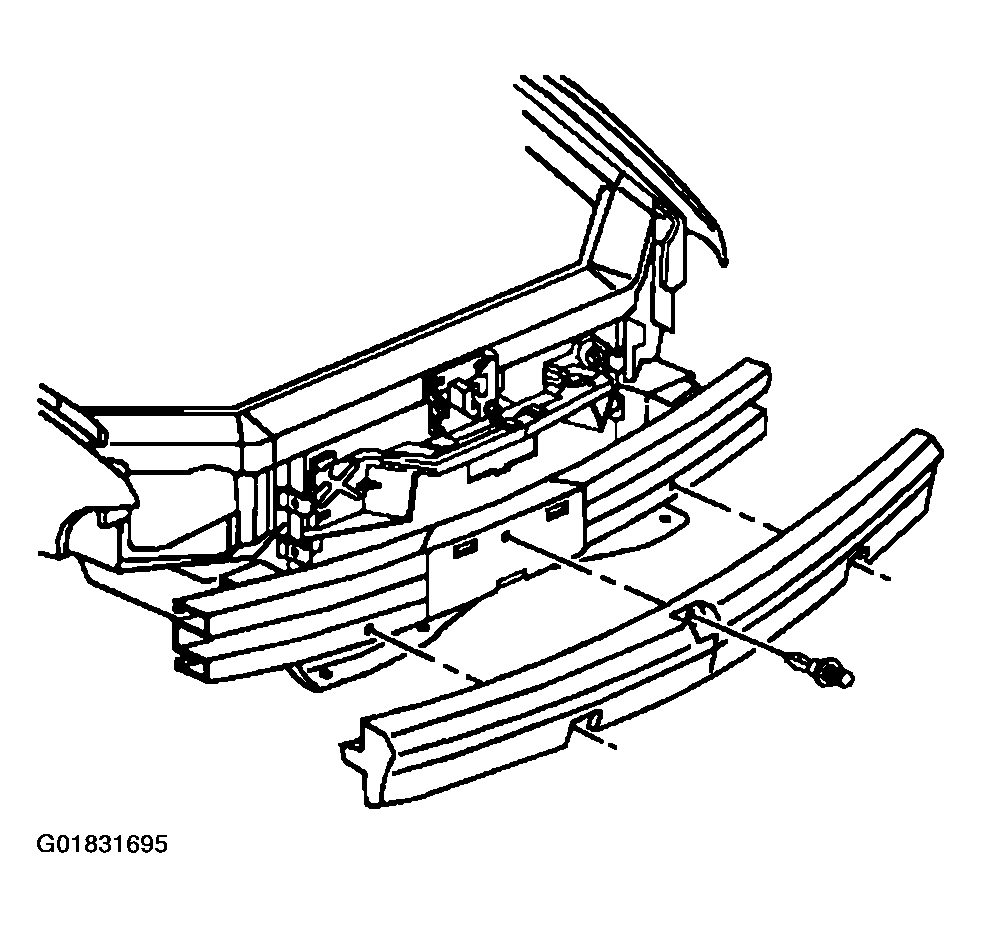

    Fig 1: Removing Front Bumper Energy Absorber & Push -In -Retainers
    G01831695Courtesy of GENERAL MOTORS CORP.
