Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front bumper energy absorber to front bumper impact bar.
  2. Install the front bumper energy absorber to front bumper impact bar push-in- retainers.
  3. Install the front bumper fascia. Refer to Fascia Replacement - Front Bumper .

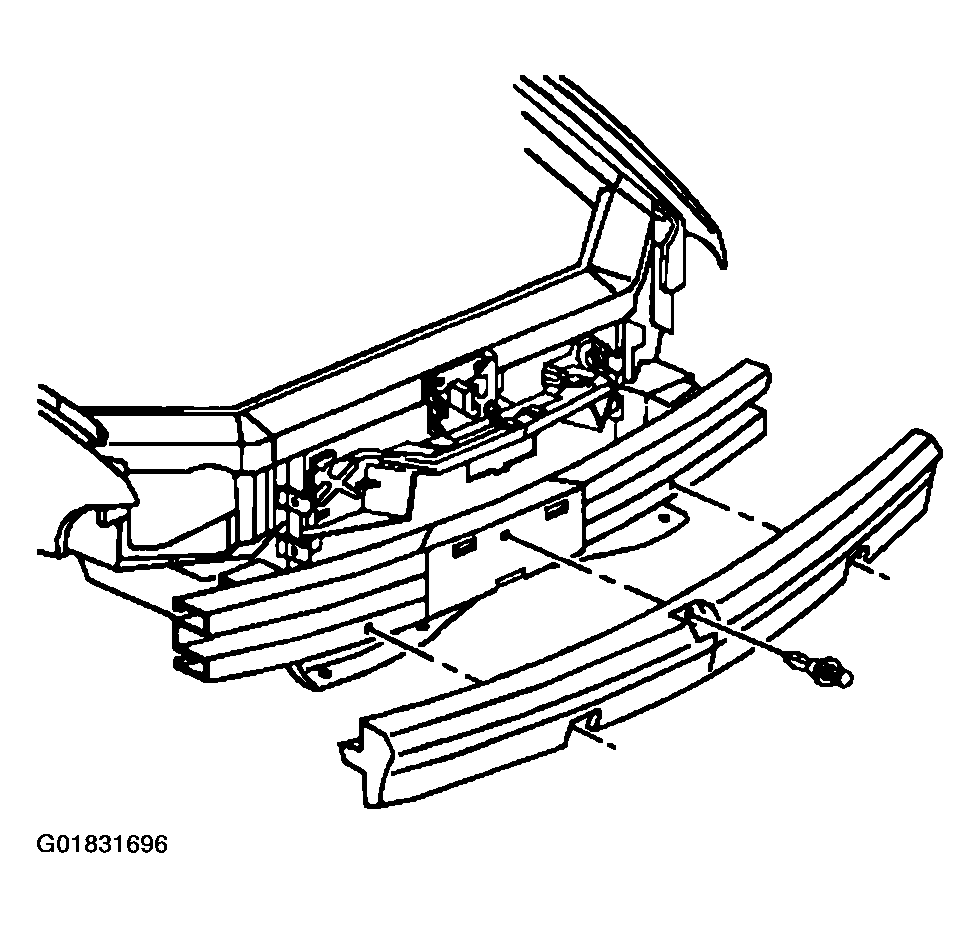

    Fig 1: Installing Front Bumper Energy Absorber & Push -In -Retainers
    G01831696Courtesy of GENERAL MOTORS CORP.
