Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the right side of the air inlet grille. Refer to Air Inlet Grille Panel Replacement .
  3. Remove the plenum chamber deflector from the pinch-weld flange.

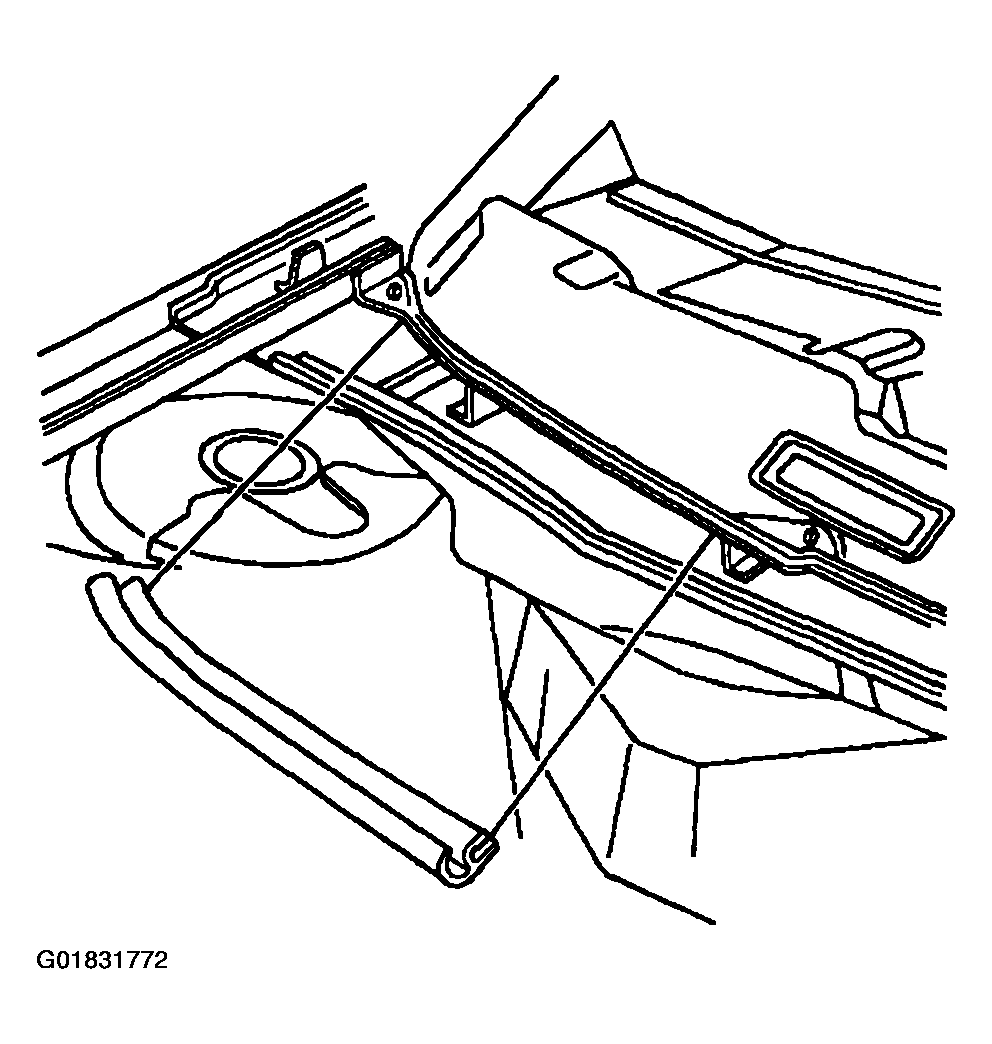

    Fig 1: Removing Plenum Chamber Deflector From Pinch - Weld Flange
    G01831772Courtesy of GENERAL MOTORS CORP.
  4. Remove the plenum chamber deflector.

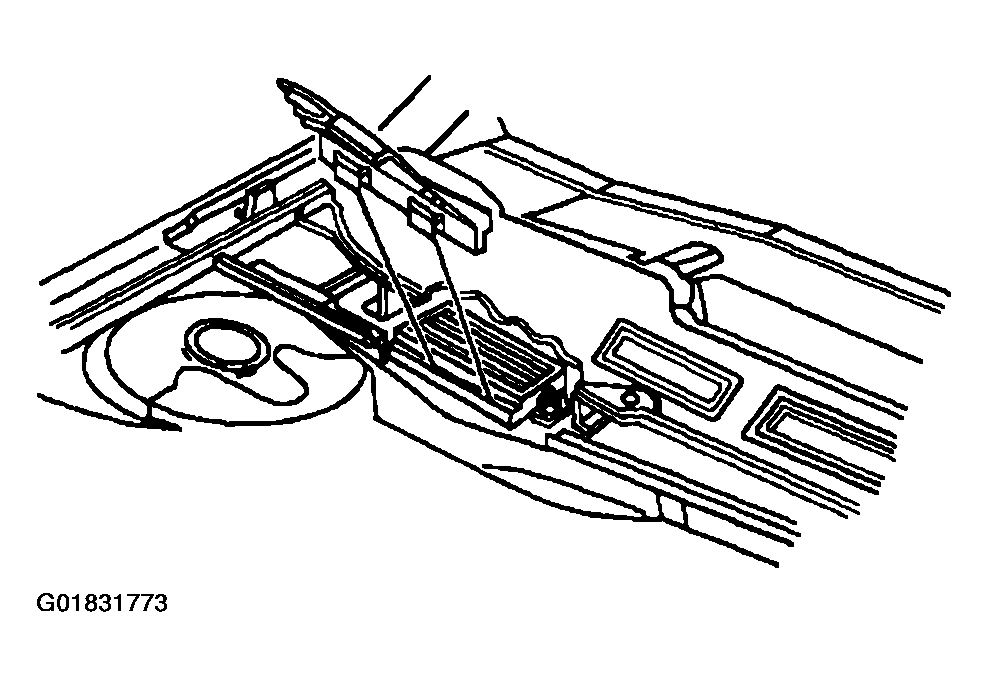

    Fig 2: Removing Plenum Chamber Deflector
    G01831773Courtesy of GENERAL MOTORS CORP.
