Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the plenum chamber deflector.

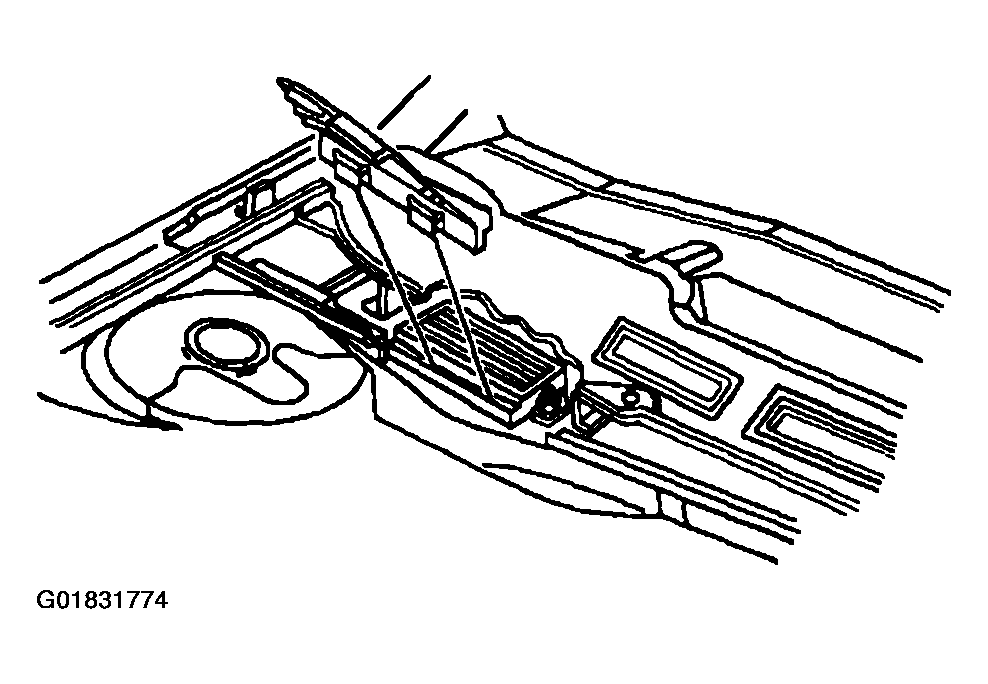

    Fig 1: Installing Plenum Chamber Deflector
    G01831774Courtesy of GENERAL MOTORS CORP.
  2. Install the plenum chamber deflector to the pinch-weld flange.
  3. Install the right side of the air inlet grille. Refer to Air Inlet Grille Panel Replacement .
  4. Close the hood.

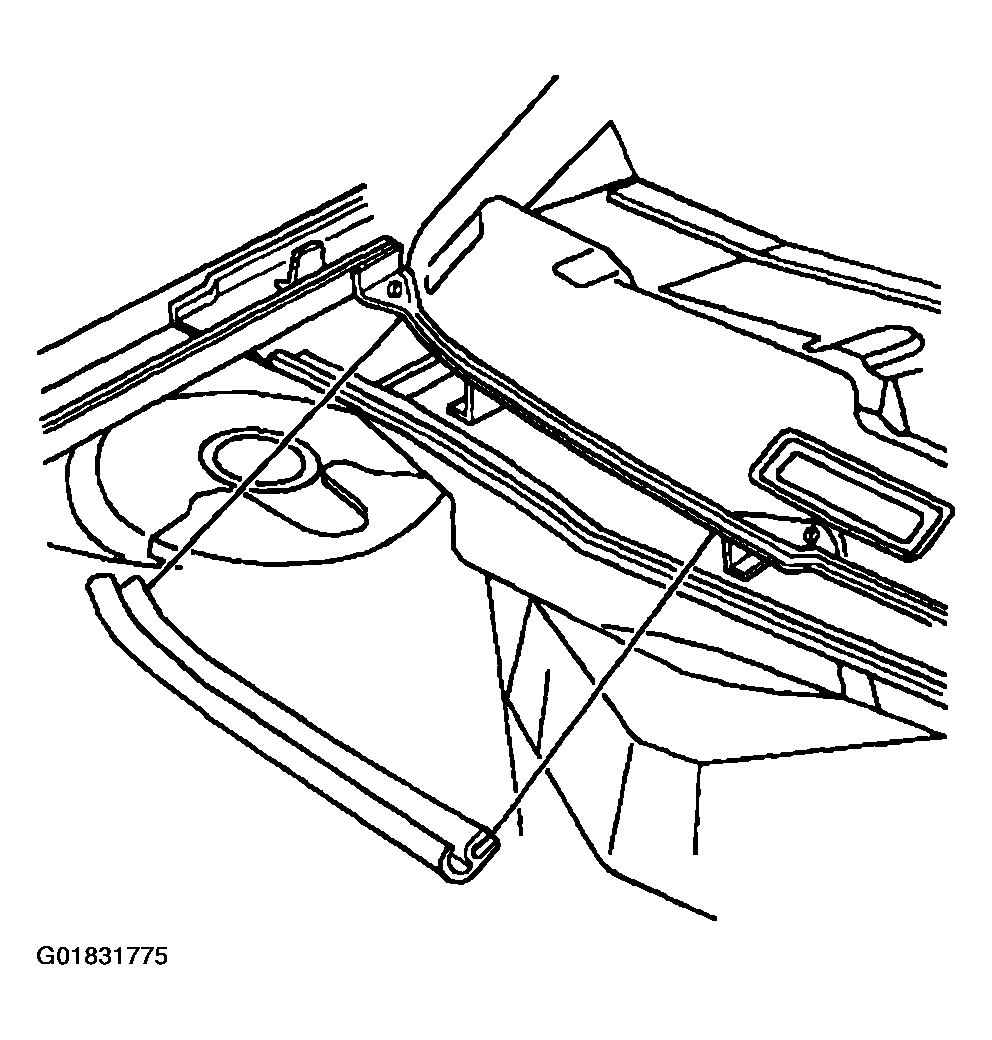

    Fig 2: Installing Plenum Chamber Deflector To Pinch - Weld Flange
    G01831775Courtesy of GENERAL MOTORS CORP.
