Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the hood rear weather-strip from the vehicle.

    Pull the hood rear weather-strip from the pinch-weld flange.

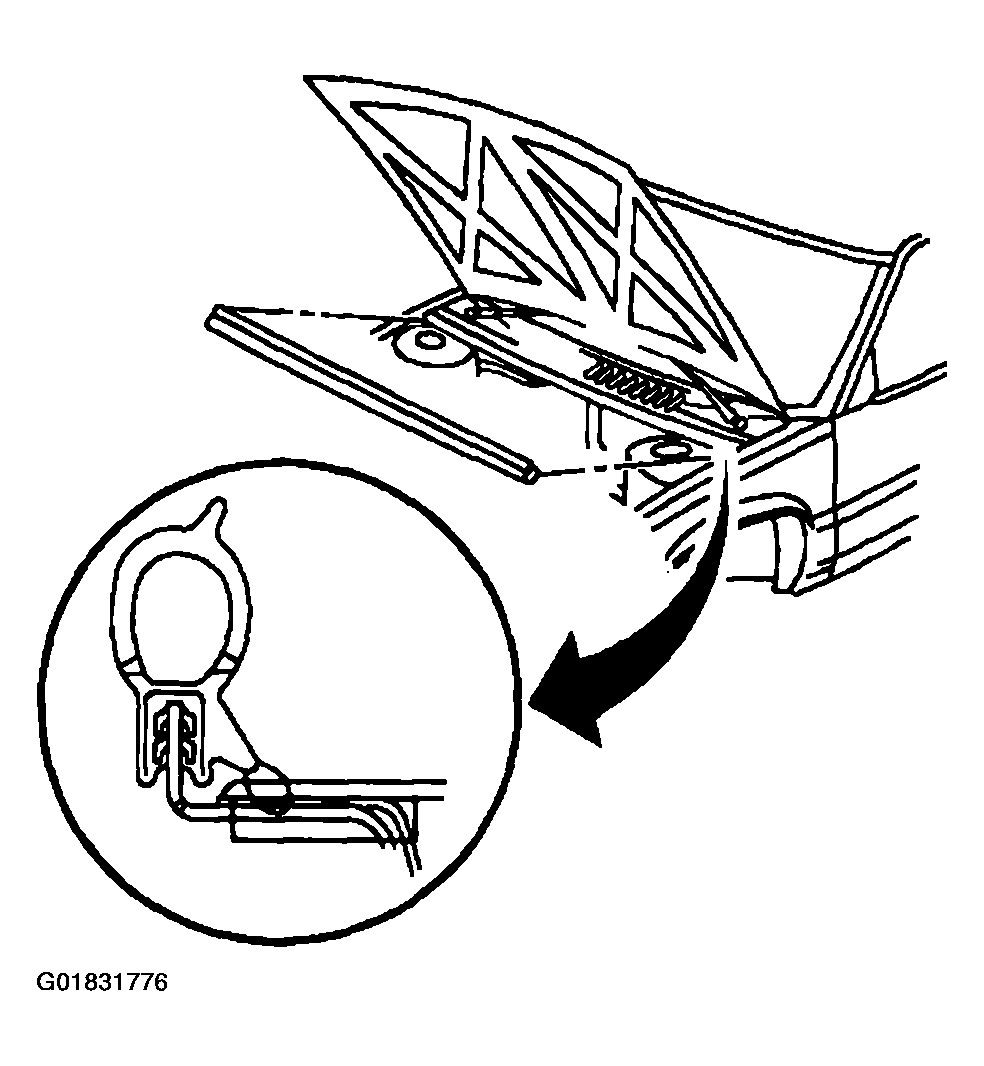

    Fig 1: Pulling Hood Rear Weather - Strip From Pinch - Weld Flange
    G01831776Courtesy of GENERAL MOTORS CORP.
