Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the hood rear weather-strip to the pinch-weld flange.
  2. Press the hood rear weather-strip onto the pinch-weld flange.
  3. Close the hood.

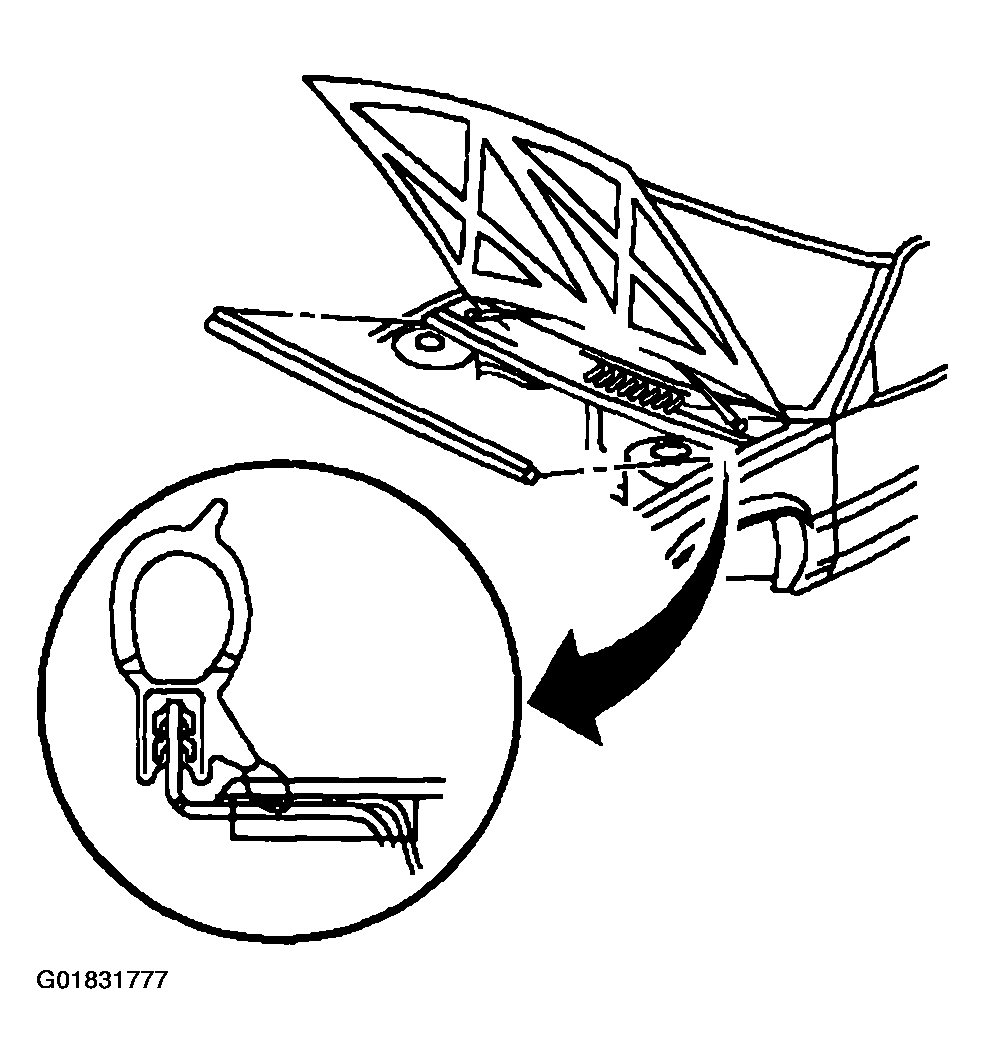

    Fig 1: Aligning Hood Rear Weather - Strip To Pinch - Weld Flange
    G01831777Courtesy of GENERAL MOTORS CORP.
