Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Pull the rear side hood seal from the pinch-weld flange and engine compartment flange.
  3. Remove the rear side hood seal from the vehicle.
  4. Use 3M™ P/N 8984 Adhesive Remover to clean any adhesive from the pinch-weld flange and engine compartment flange surface.

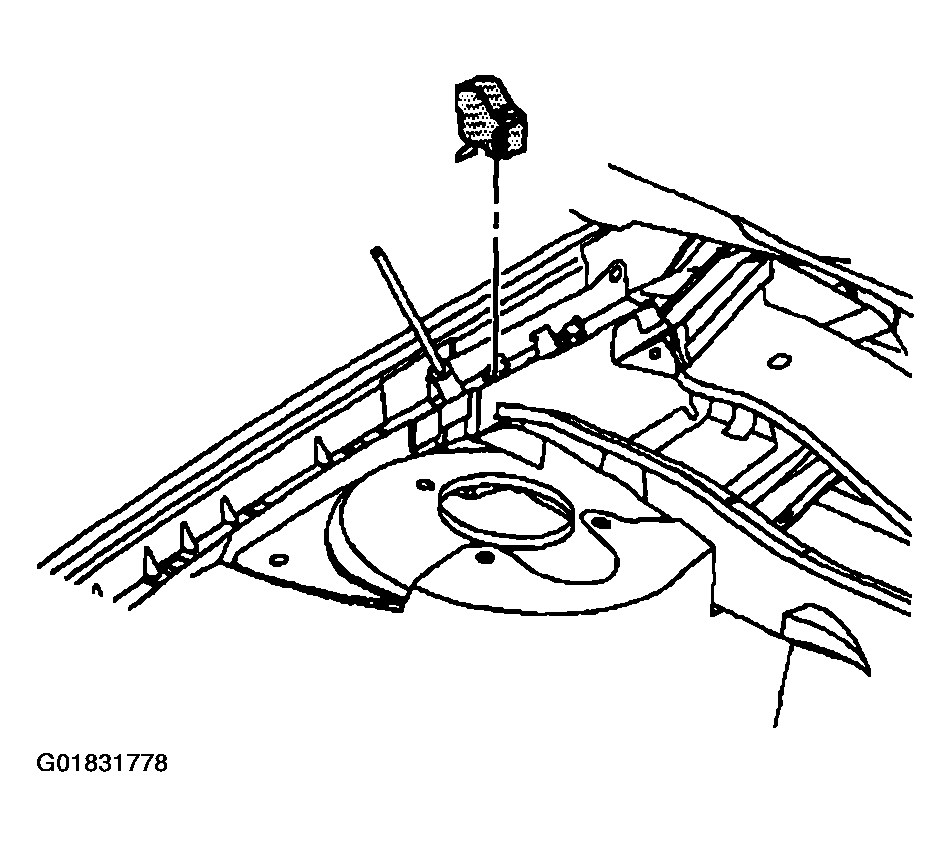

    Fig 1: Removing Rear Side Hood Seal From Pinch - Weld Flange
    G01831778Courtesy of GENERAL MOTORS CORP.
