Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the protective backing paper from the adhesive on the rear side hood seal.
  2. Install the rear side hood seal to the pinch-weld flange and engine compartment flange.
  3. Press the side rear hood seal onto the pinch-weld flange and engine compartment flange until the adhesive is fully adhered.
  4. Close the hood.

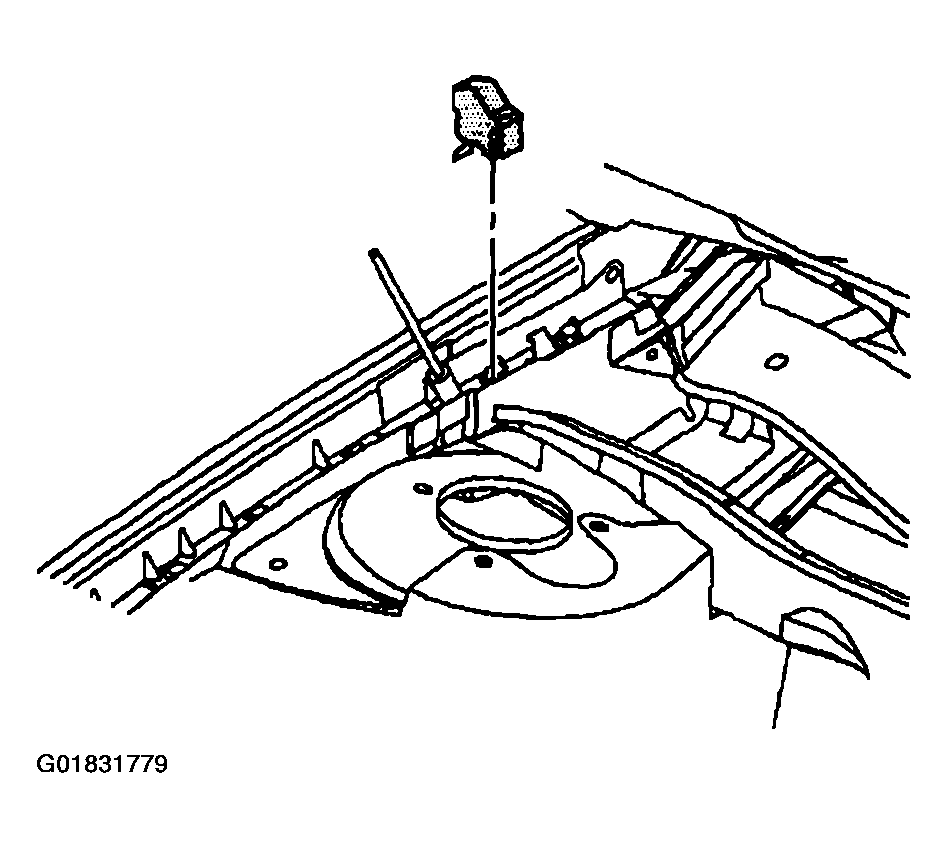

    Fig 1: Installing Rear Side Hood Seal To Pinch - Weld Flange
    G01831779Courtesy of GENERAL MOTORS CORP.
