Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Use the J 38778 to remove the push in retainers from the hood front air seal.
  3. Remove the hood front air seal from the hood.

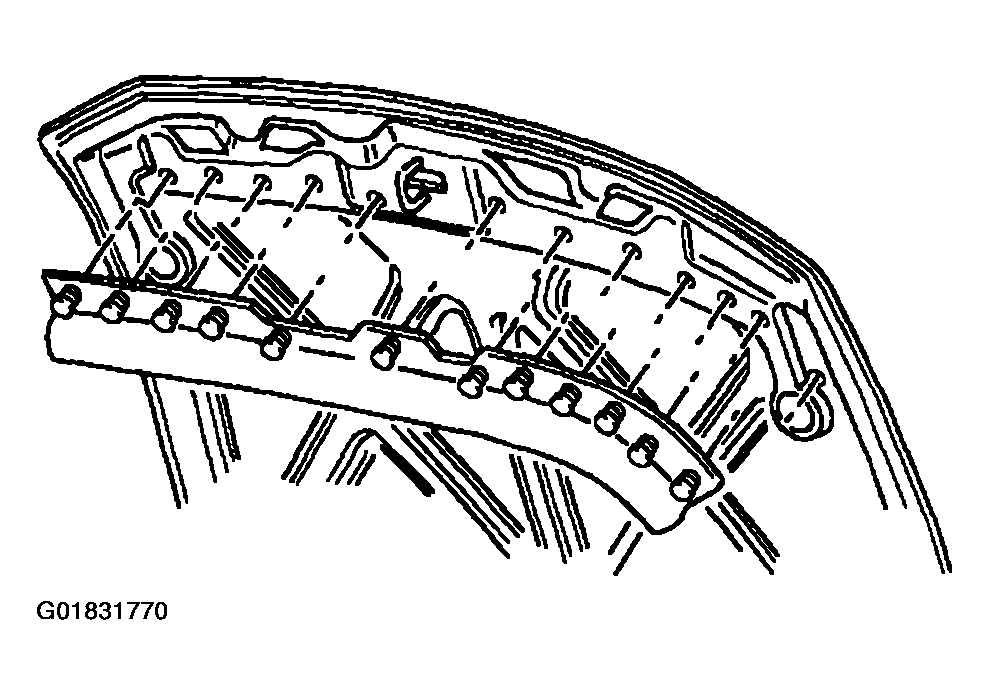

    Fig 1: Removing Push - Retainers From Hood Front Air Seal
    G01831770Courtesy of GENERAL MOTORS CORP.
