Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the hood front air seal to the hood.
  2. Install the push-in retainers to the hood front air seal into the hood.
  3. Close the hood.

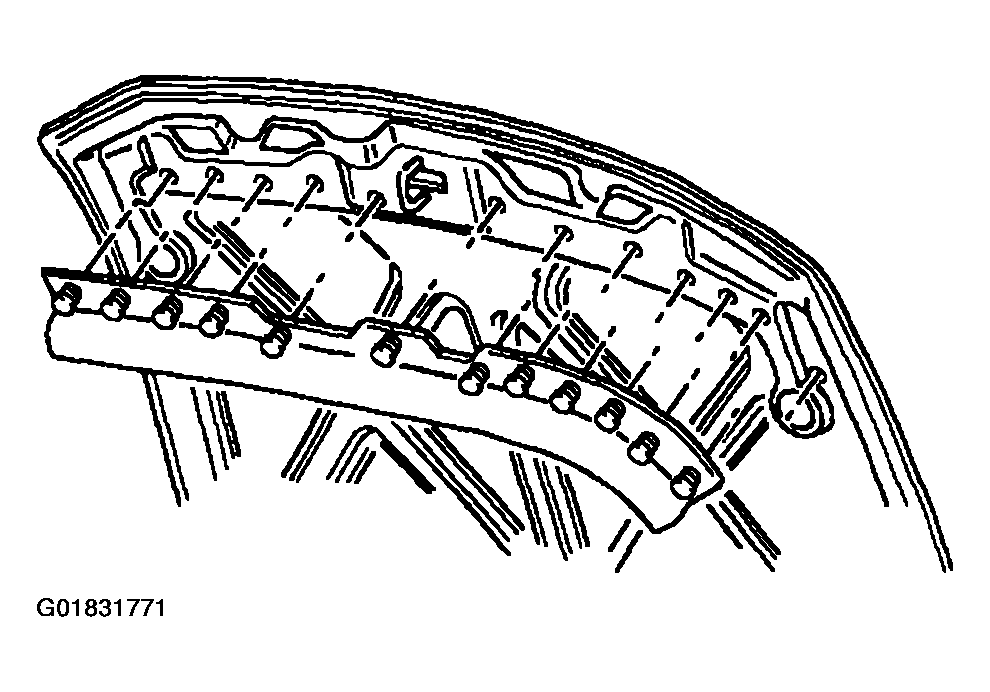

    Fig 1: Installing Push - Retainers To Hood Front Air Seal
    G01831771Courtesy of GENERAL MOTORS CORP.
