Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the right side of air inlet grille. Refer to Air Inlet Grille Panel Replacement .
  3. Start at the center of the plenum chamber deflector and pull forward and off of the flange.

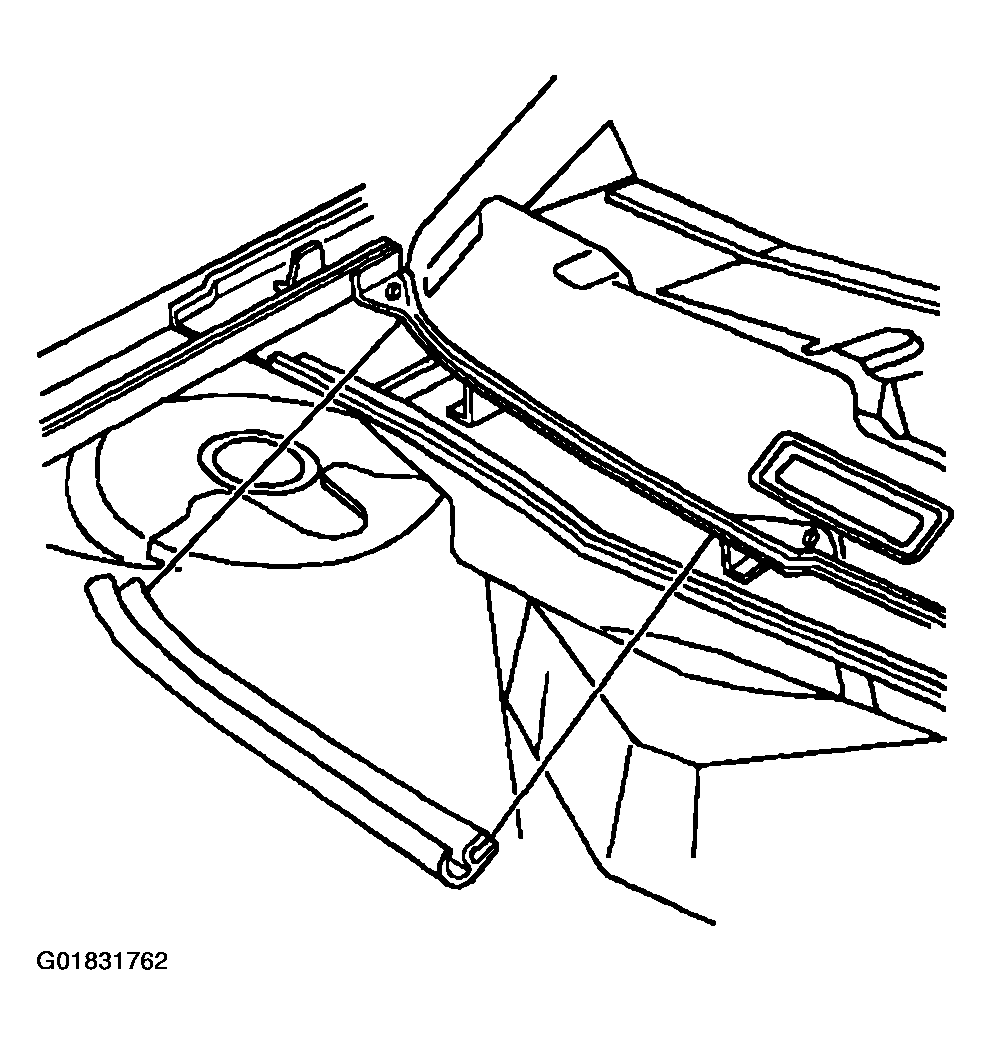

    Fig 1: Removing Plenum Chamber Deflector Off Of Flange
    G01831762Courtesy of GENERAL MOTORS CORP.
  4. Remove the plenum chamber deflector extension.

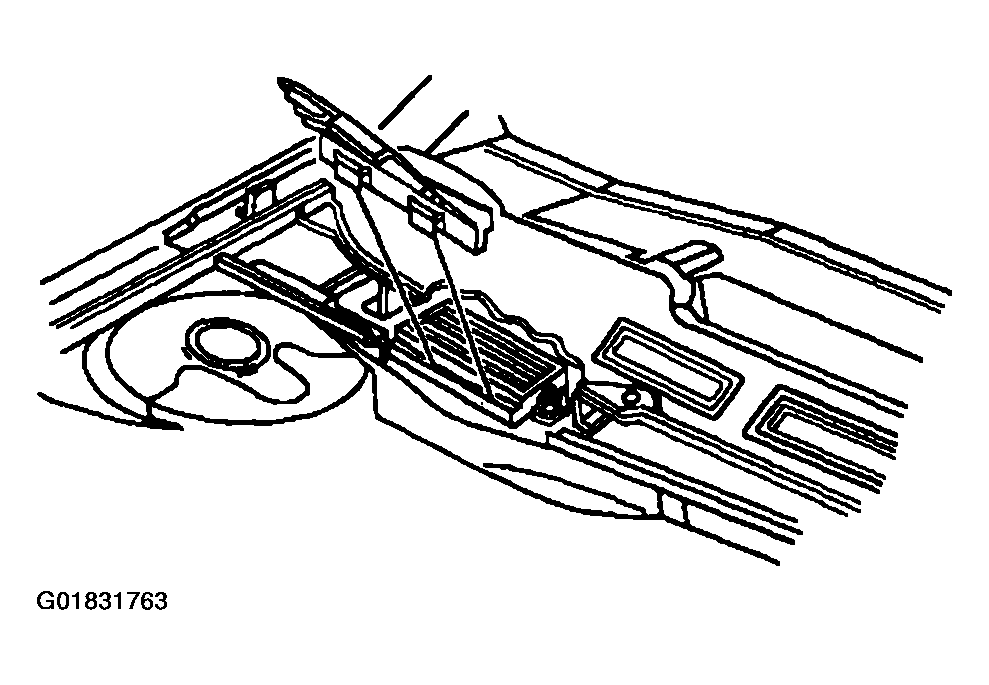

    Fig 2: Removing Plenum Chamber Deflector Extension
    G01831763Courtesy of GENERAL MOTORS CORP.
