Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Mark the hood latch to the center support bracket with a grease pencil.
  3. Remove the bolts from the hood latch.
  4. Remove the hood latch from the hood latch support.

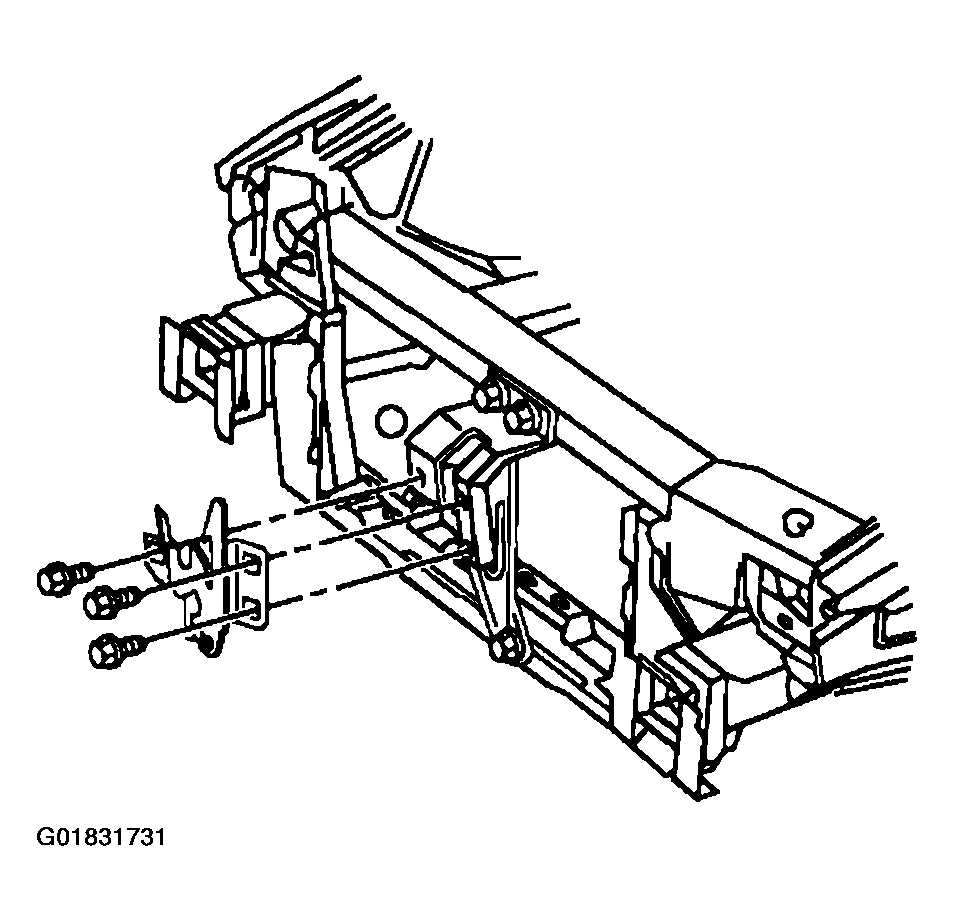

    Fig 1: Removing Bolts & Hood Latch
    G01831731Courtesy of GENERAL MOTORS CORP.

    Important:  Do not crimp the hood release cable.

  5. Remove the hood release cable from the hood latch by squeezing the cable retainer.
  6. Remove the hood latch from the vehicle.

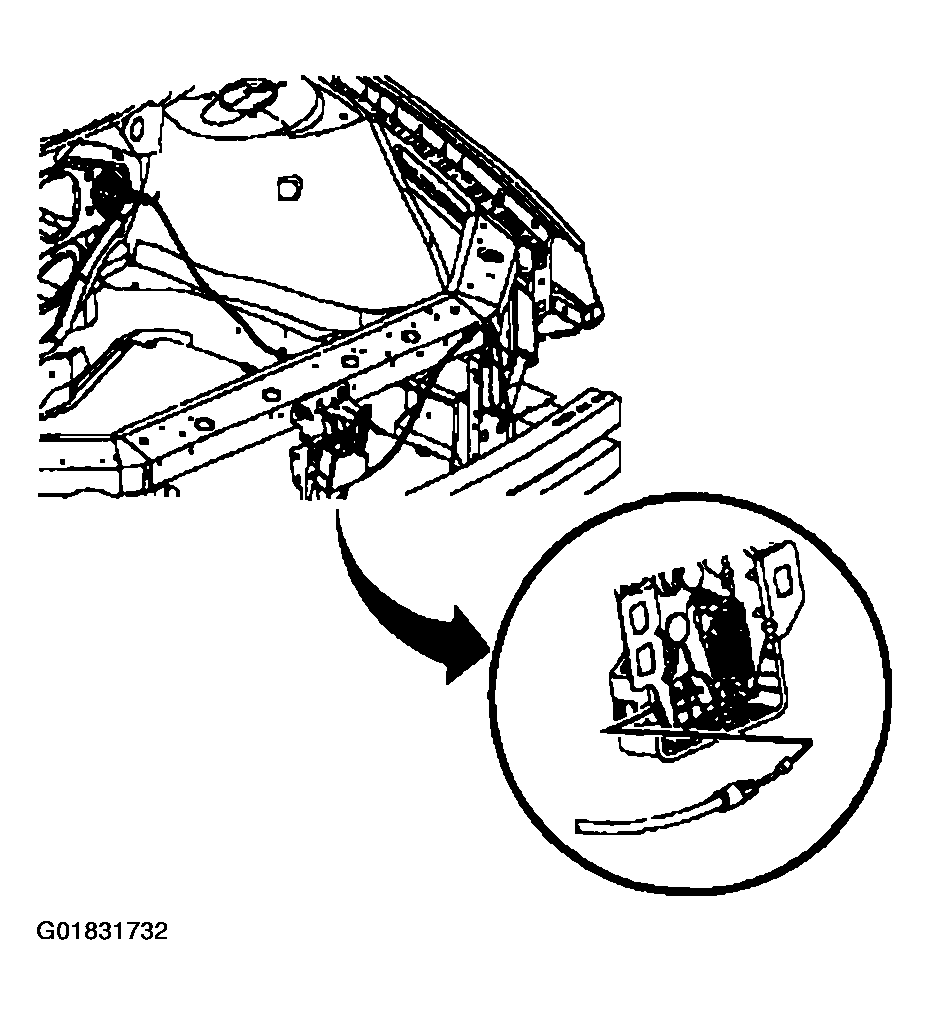

    Fig 2: Removing Hood Release Cable From Hood Latch
    G01831732Courtesy of GENERAL MOTORS CORP.
