Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Steering column filler panel. Refer to STEERING COLUMN FILLER REPLACEMENT in Instrument Panel, Gages, And Console.
  2. Remove the bolts/screws from the hood release handle base.

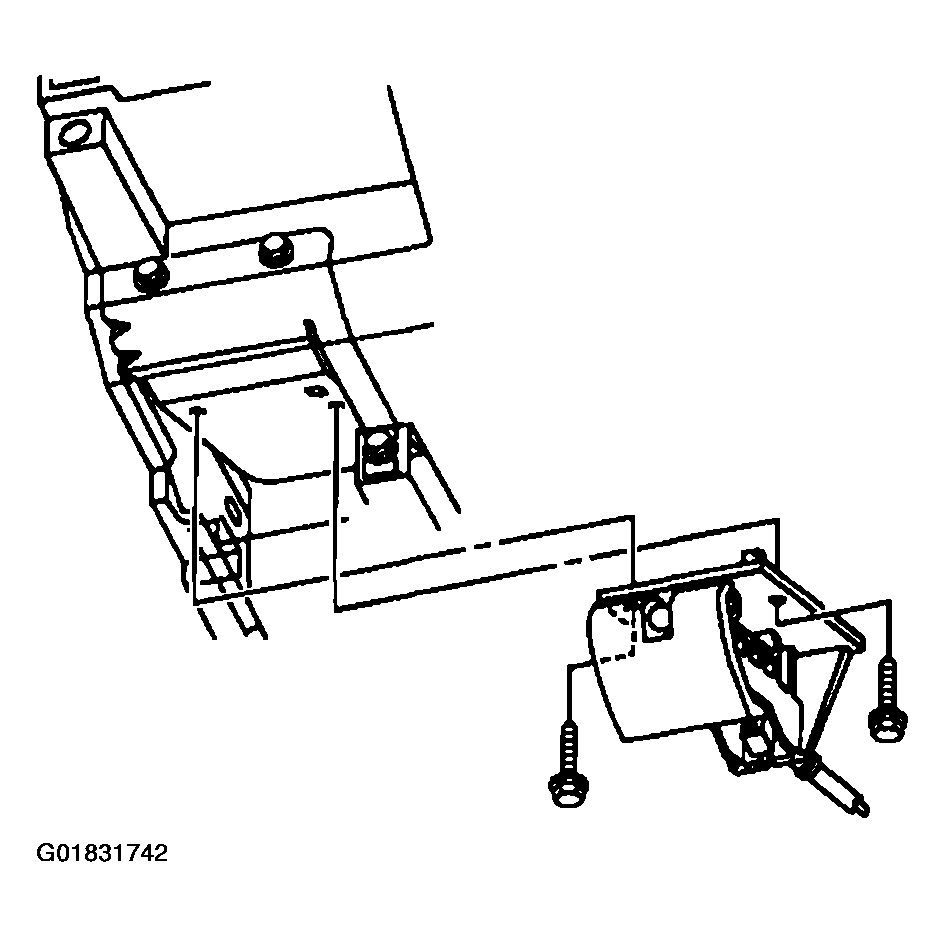

    Fig 1: Removing Bolts/Screws From Hood Release Handle Base
    G01831742Courtesy of GENERAL MOTORS CORP.
  3. Remove the hood release cable from the hood release handle.
  4. Remove the hood release handle from the instrument panel.

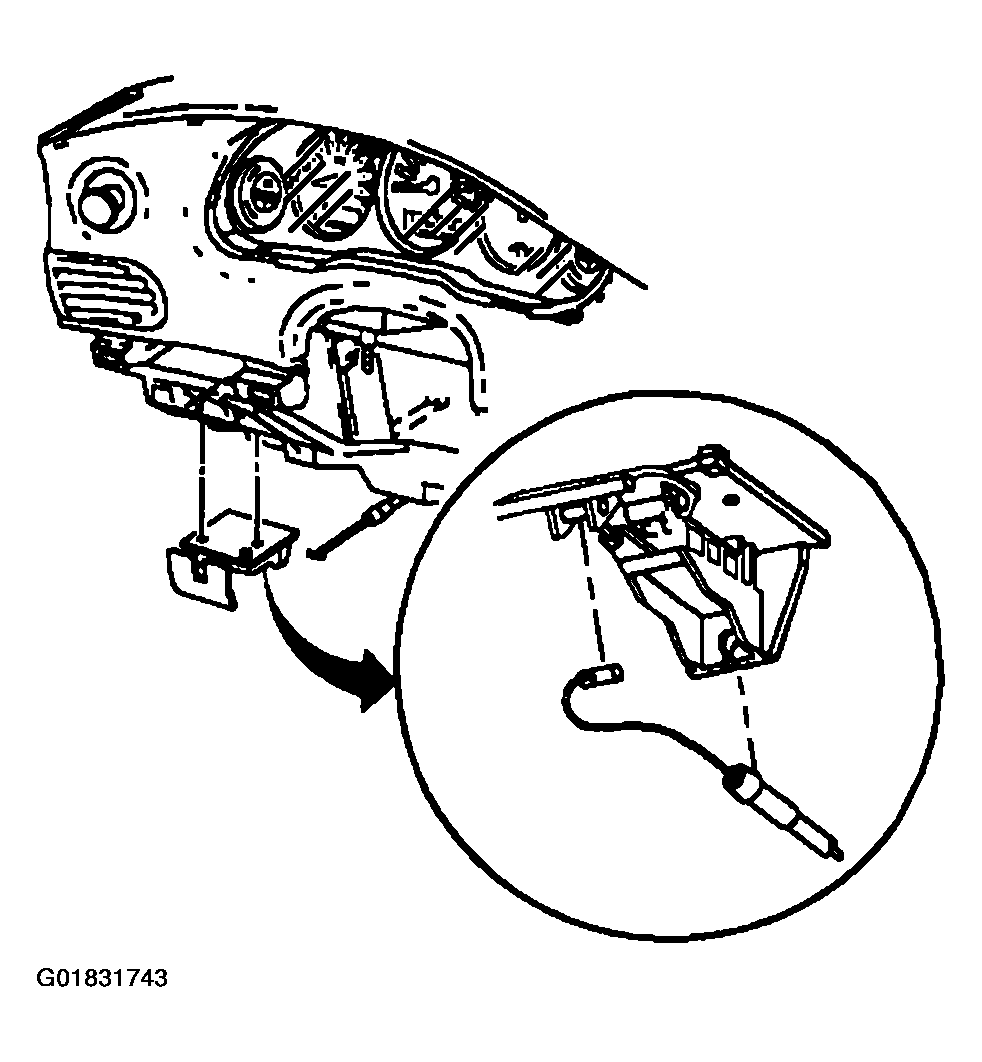

    Fig 2: Removing Hood Release Cable From Hood Release Handle
    G01831743Courtesy of GENERAL MOTORS CORP.
