Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Use the J 38778  to remove the push-in retainers from the hood insulator.
  3. Remove the hood Insulator from the hood.

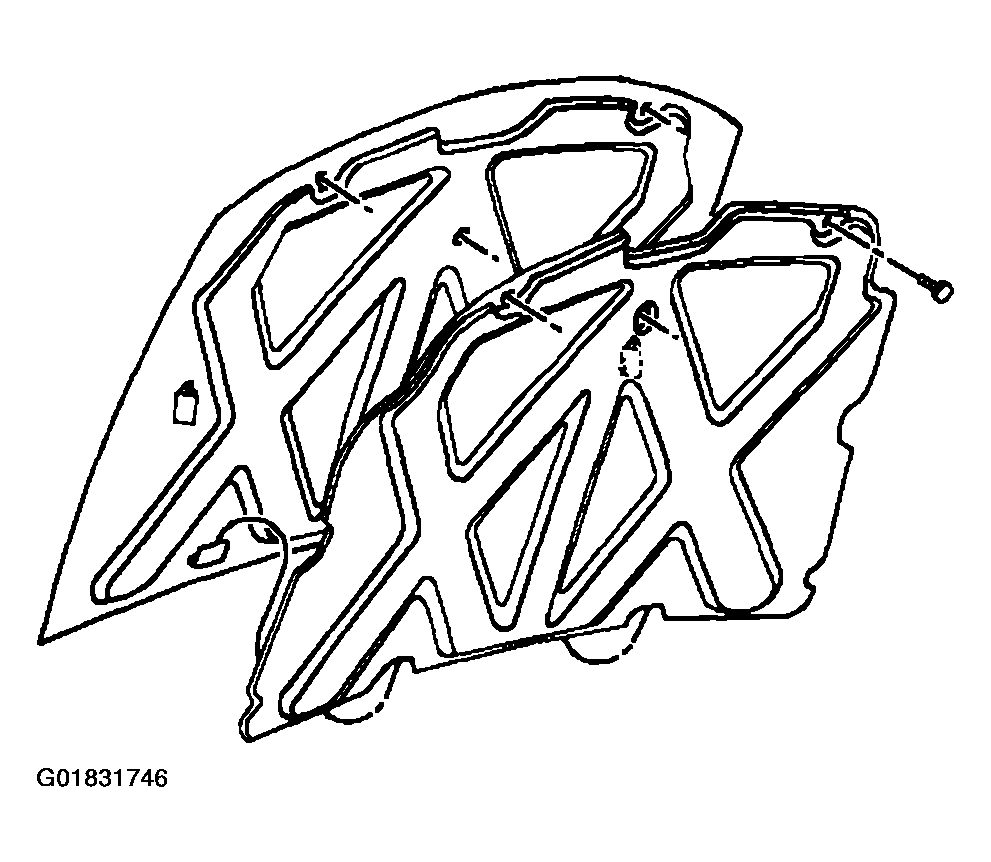

    Fig 1: Removing Push - In Retainers From Hood Insulator
    G01831746Courtesy of GENERAL MOTORS CORP.
