Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the hood hinge to the fender.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the hood hinge to fender bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the hood. Refer to Hood Replacement .
  4. Install the hood assist rod. Refer to Assist Rod Replacement - Hood .
  5. Install the hood rear side seal. Refer to Seal Replacement - Hood Rear Side .
  6. Adjust the hood. Refer to Hood Adjustment .

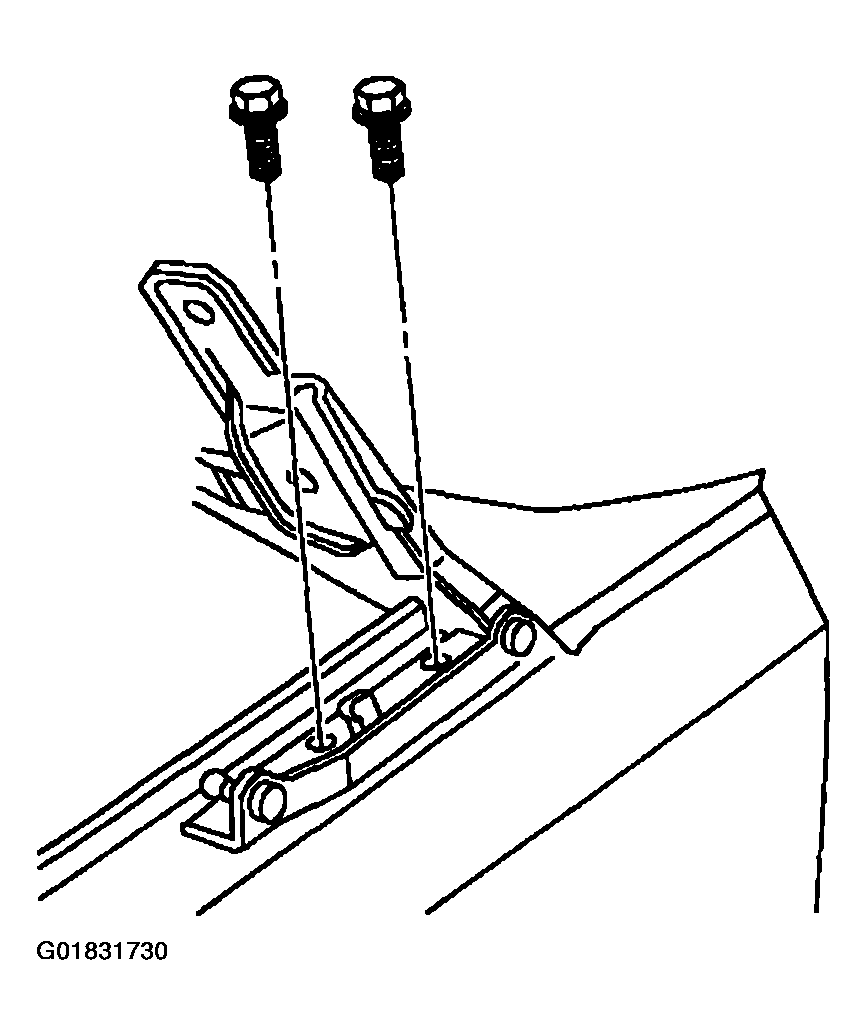

    Fig 1: Installing Hood Hinge To Fender Bolts
    G01831730Courtesy of GENERAL MOTORS CORP.
