Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the hood side bumper (1) from the fender by sliding the bumper rearward.

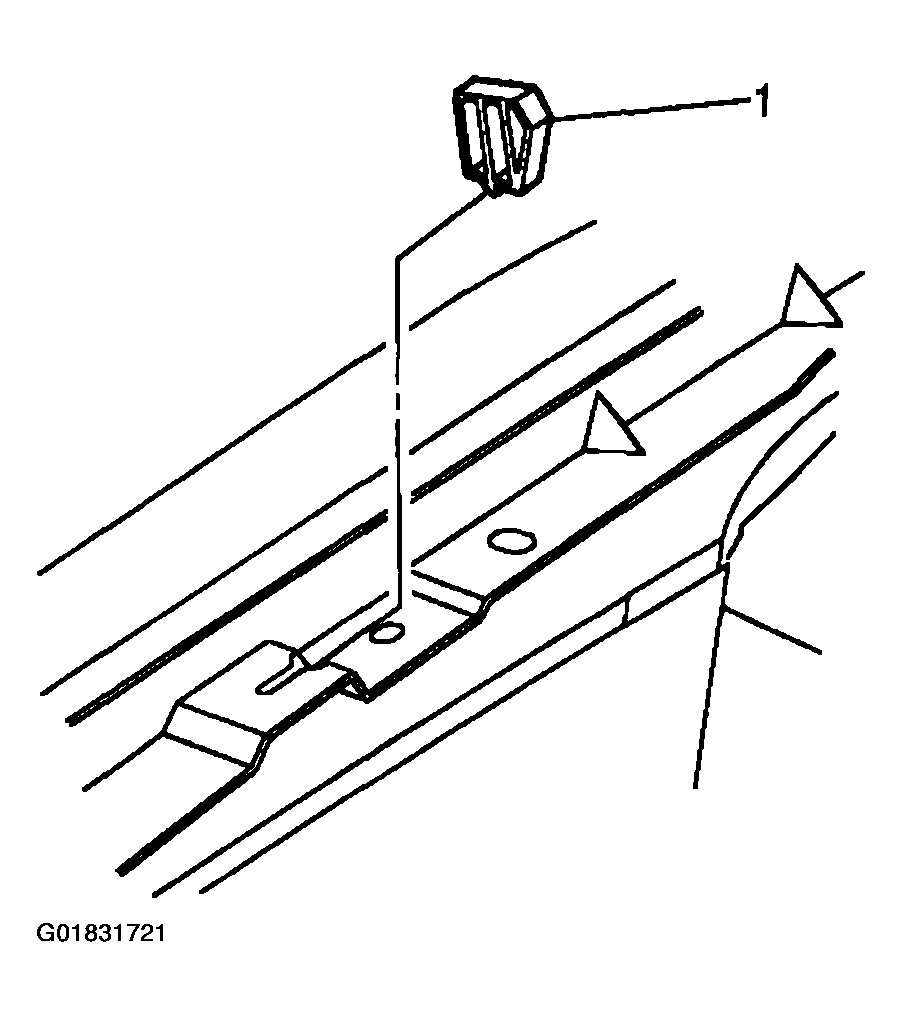

    Fig 1: Removing Hood Side Bumper From Fender
    G01831721Courtesy of GENERAL MOTORS CORP.
  3. Remove the adjustable front hood bumper (1) from the radiator support by rotating counterclockwise.

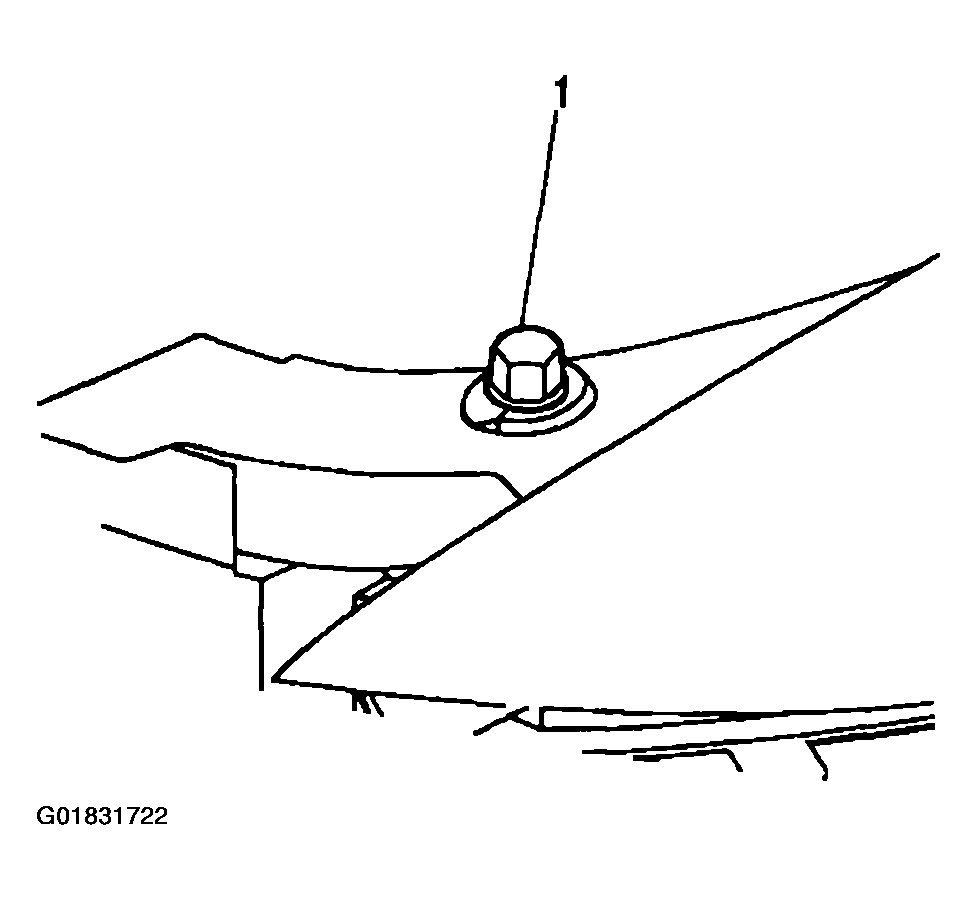

    Fig 2: Removing Adjustable Front Hood Bumper From Radiator Support
    G01831722Courtesy of GENERAL MOTORS CORP.
