Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts from the front fender liner at the front bumper fascia.

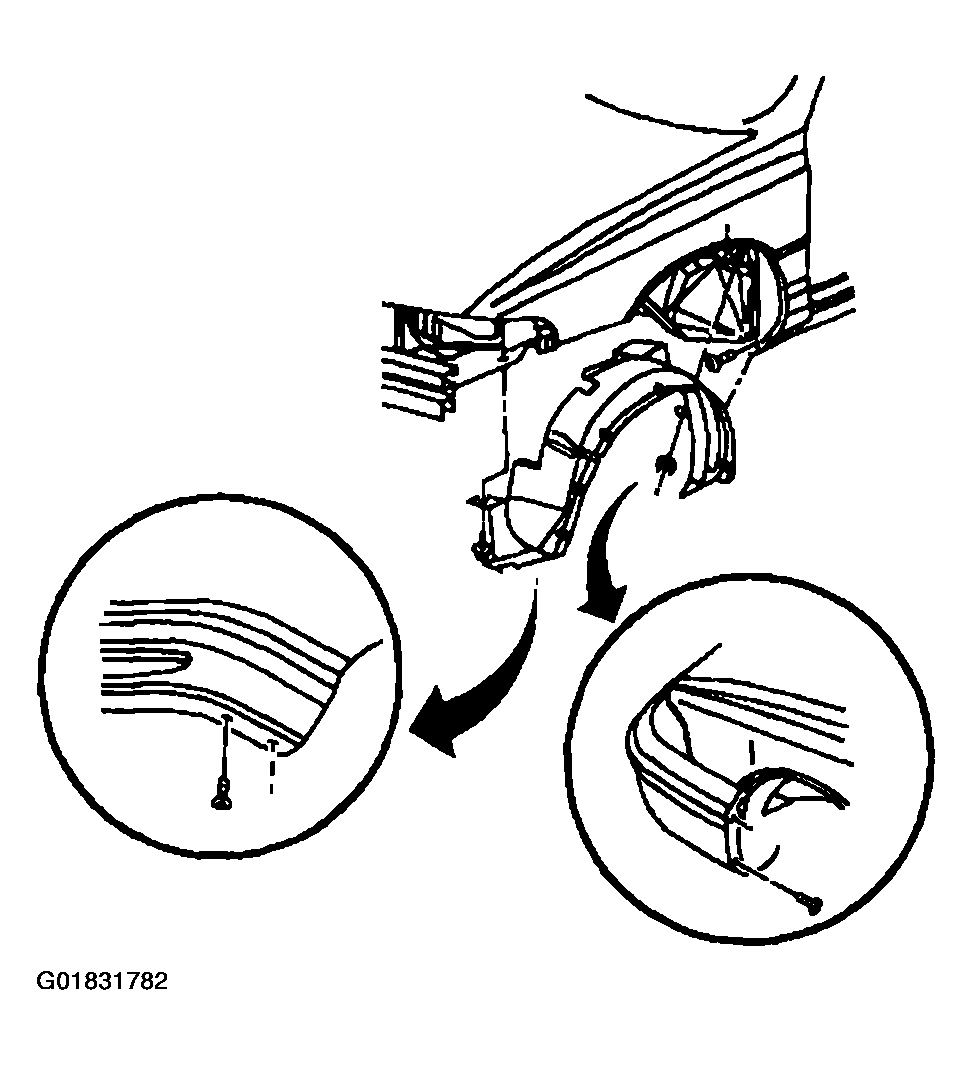

    Fig 1: Removing Bolts From Front Fender Liner
    G01831782Courtesy of GENERAL MOTORS CORP.
  2. Remove the nut from the stud at rear of front fender liner.
  3. Remove the bolt from the front tab of the front fender liner at the lower engine compartment side rail.
  4. Remove the bolts from the front fender liner at the rear of fender.
  5. Remove the screws from the front fender liner.
  6. Remove the front fender liner from fender.

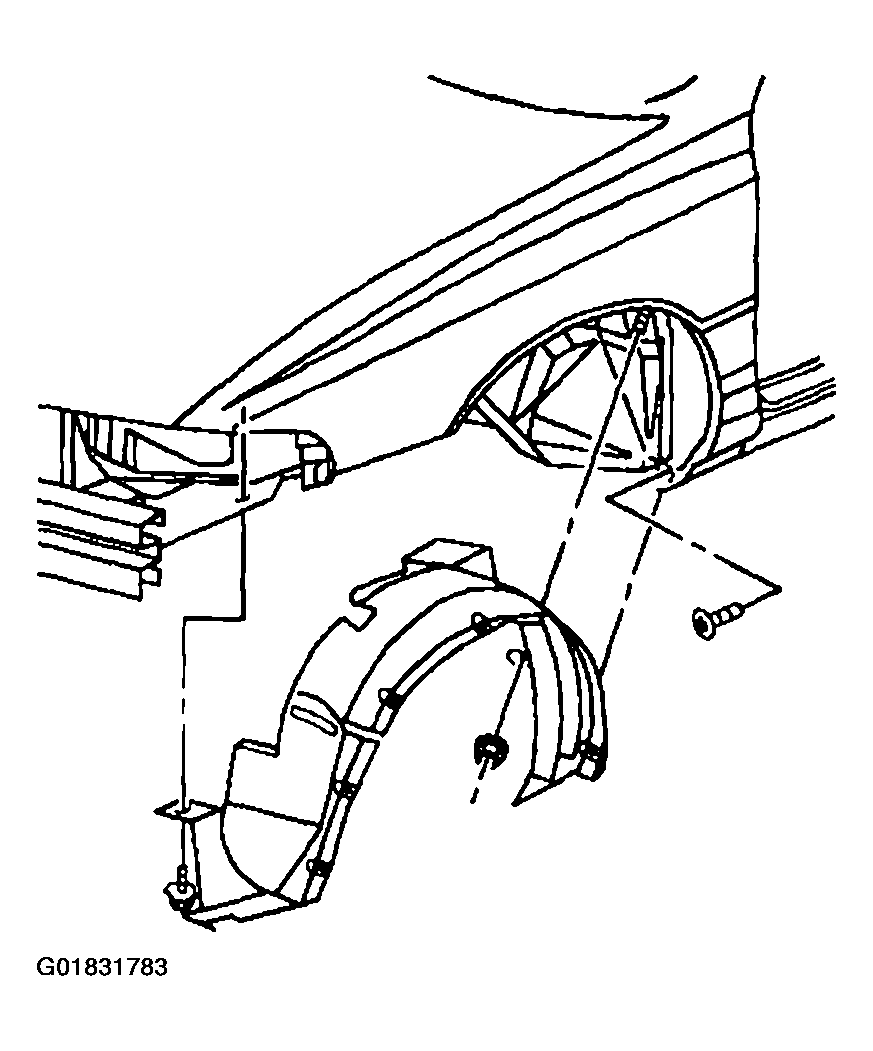

    Fig 2: Removing Front Fender Liner
    G01831783Courtesy of GENERAL MOTORS CORP.
