Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fender liner. Refer to Front Fender Liner Replacement .
  2. Remove the front fender insulator tabs from the mounting studs by pulling off.
  3. Remove the front fender insulator from the inner fender.

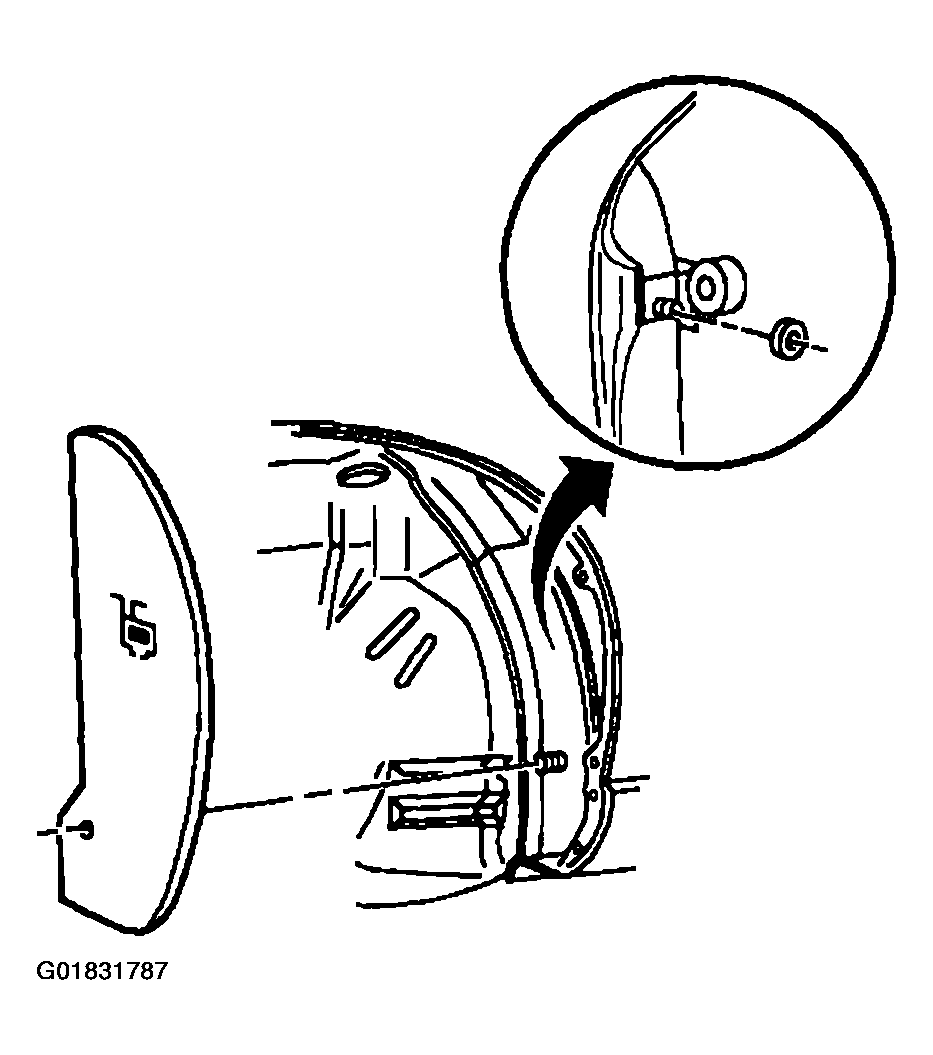

    Fig 1: Removing Front Fender Insulator Tabs From Mounting Studs
    G01831787Courtesy of GENERAL MOTORS CORP.
