Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the front fender insulator to the inner fender.
  2. Install the front fender insulator tabs to the mounting studs by pressing on.
  3. Align the front fender insulator to the flange of the fender to avoid interference with the front door edge.
  4. Install the front fender liner. Refer to Front Fender Liner Replacement .

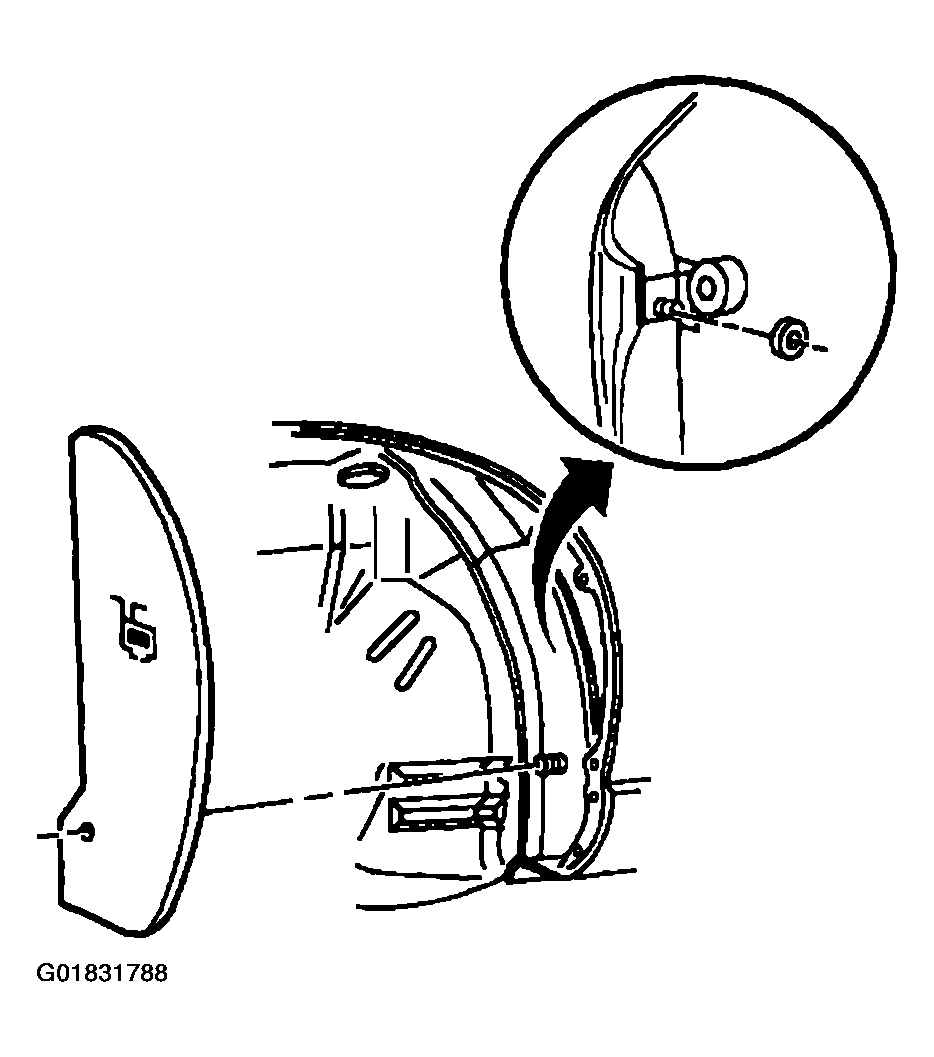

    Fig 1: Installing Front Fender Insulator Tabs To Mounting Studs
    G01831788Courtesy of GENERAL MOTORS CORP.
