Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the sheet metal diagonal brace to the inner fender bolt.
  3. Remove the sheet metal diagonal brace to radiator support bolts.
  4. Remove the electrical harness cable retainer located near the center of the brace.
  5. Remove the sheet metal diagonal brace.

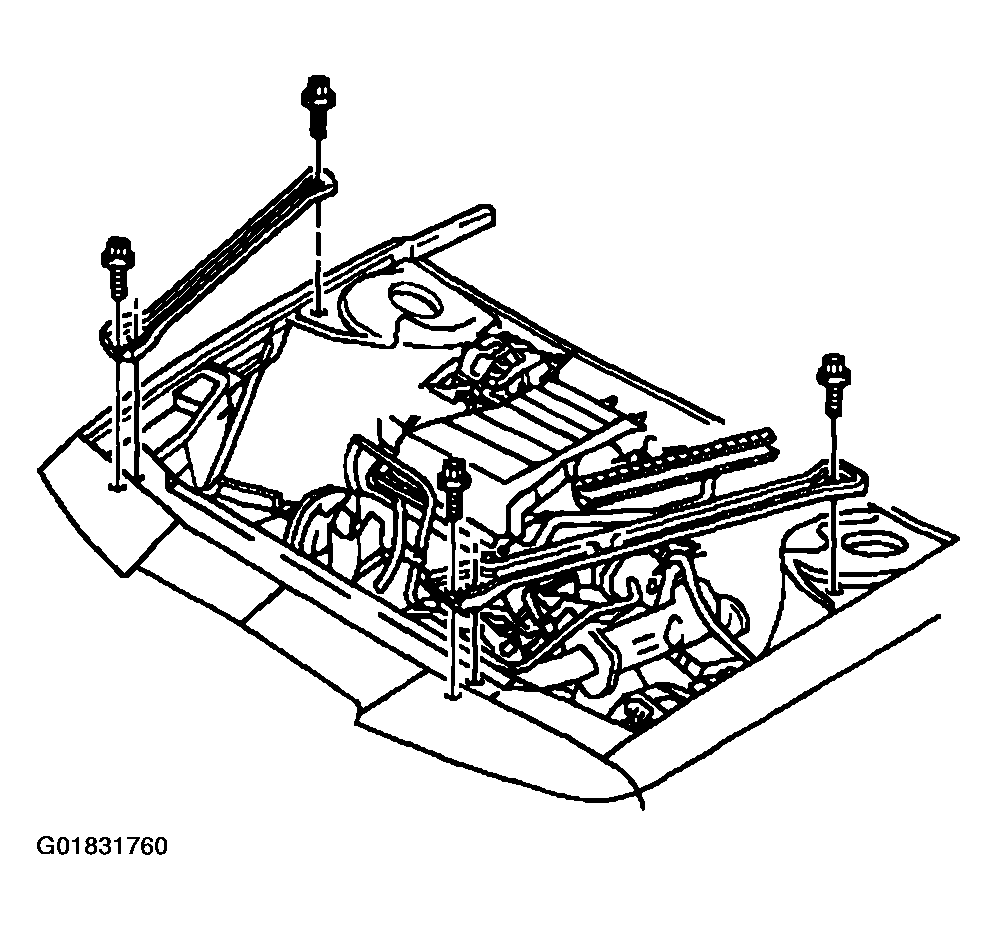

    Fig 1: Removing Sheet Metal Diagonal Brace To Radiator Support Bolts
    G01831760Courtesy of GENERAL MOTORS CORP.
