Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the sheet metal diagonal brace to the radiator support and to the inner fender.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the front fender upper diagonal brace to radiator support bolts.

    Tighten

    Tighten the bolts to 47 N.m (35 lb ft).

  3. Install the front fender upper diagonal brace to inner fender bolt.

    Tighten

    Tighten the bolt to 47 N.m (35 lb ft).

  4. Install the electrical harness cable retainer.
  5. Close the hood.

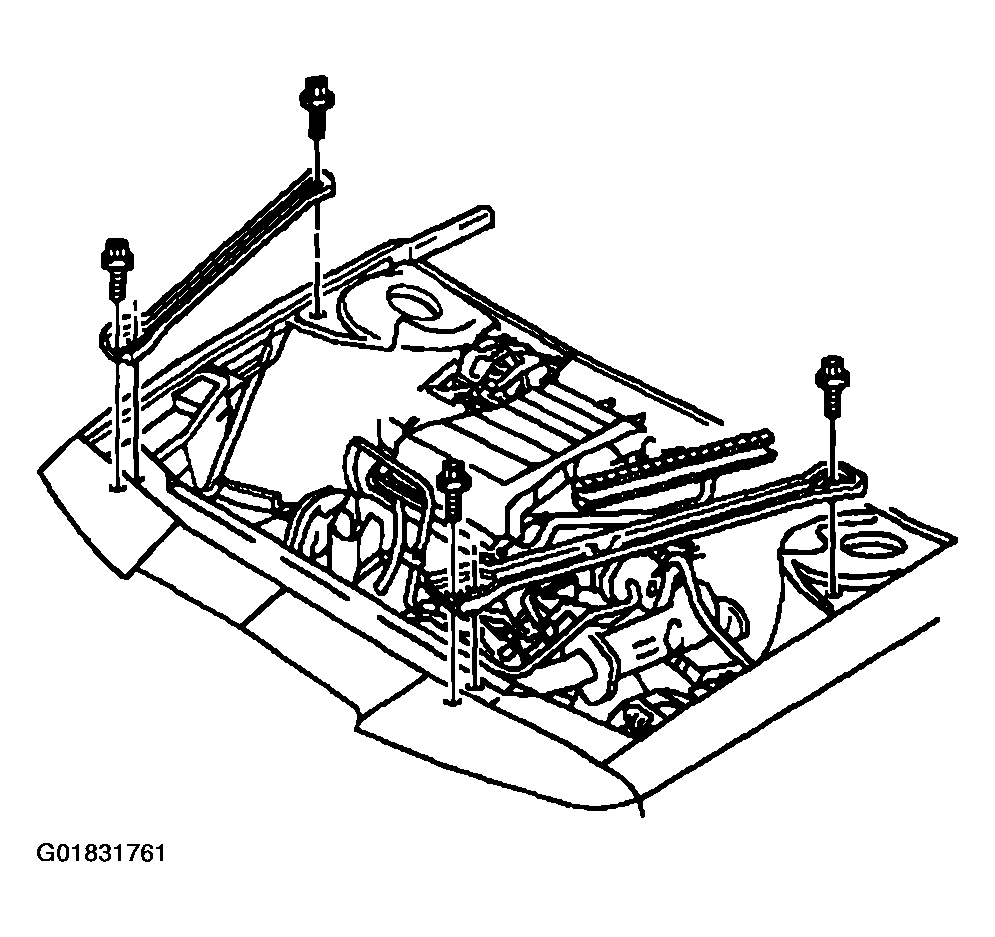

    Fig 1: Installing Sheet Metal Diagonal Brace To Radiator Support Bolts
    G01831761Courtesy of GENERAL MOTORS CORP.
