Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to BATTERY REPLACEMENT .
  2. Remove the battery tray bolts.
  3. Remove the battery tray.

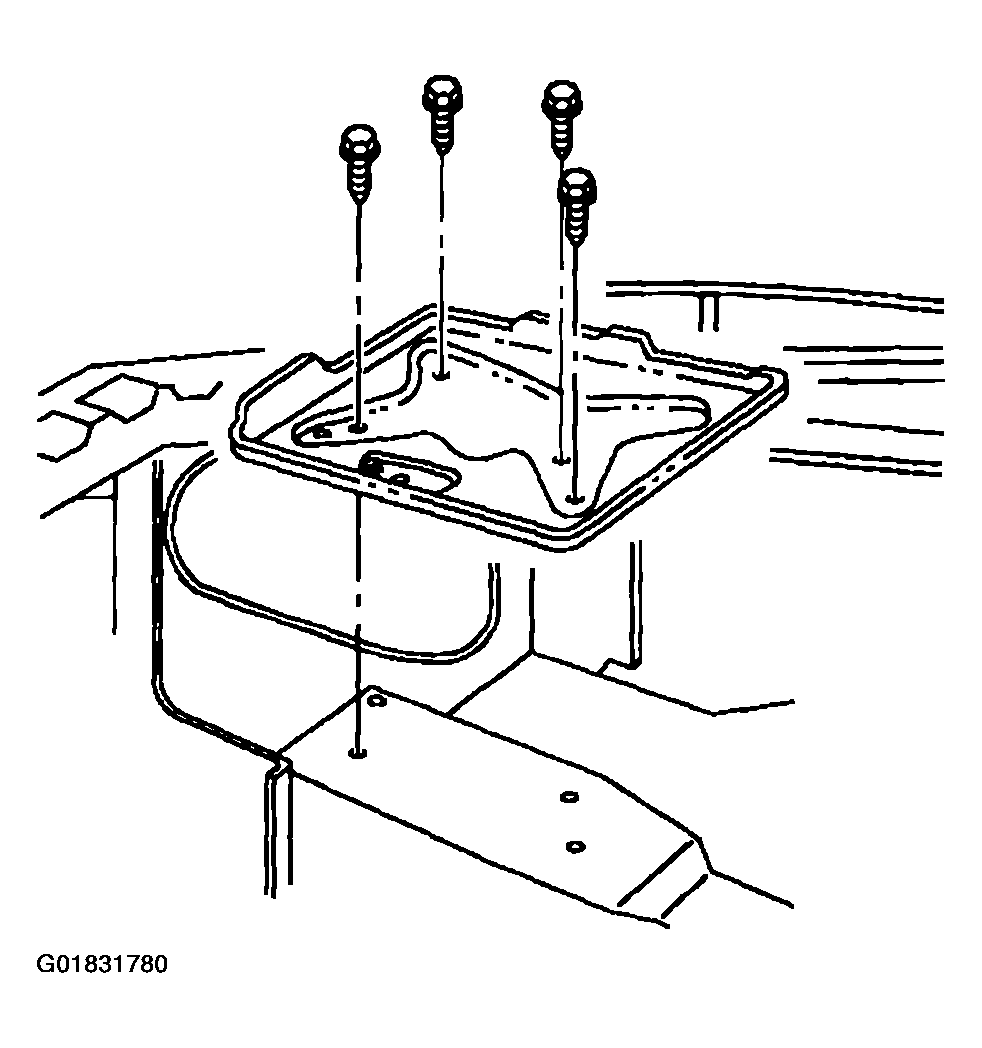

    Fig 1: Removing Battery Tray & Bolts
    G01831780Courtesy of GENERAL MOTORS CORP.
