Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Open and support the hood.
Lift up the retainer clips on the assist rod using a small flat-bladed tool.

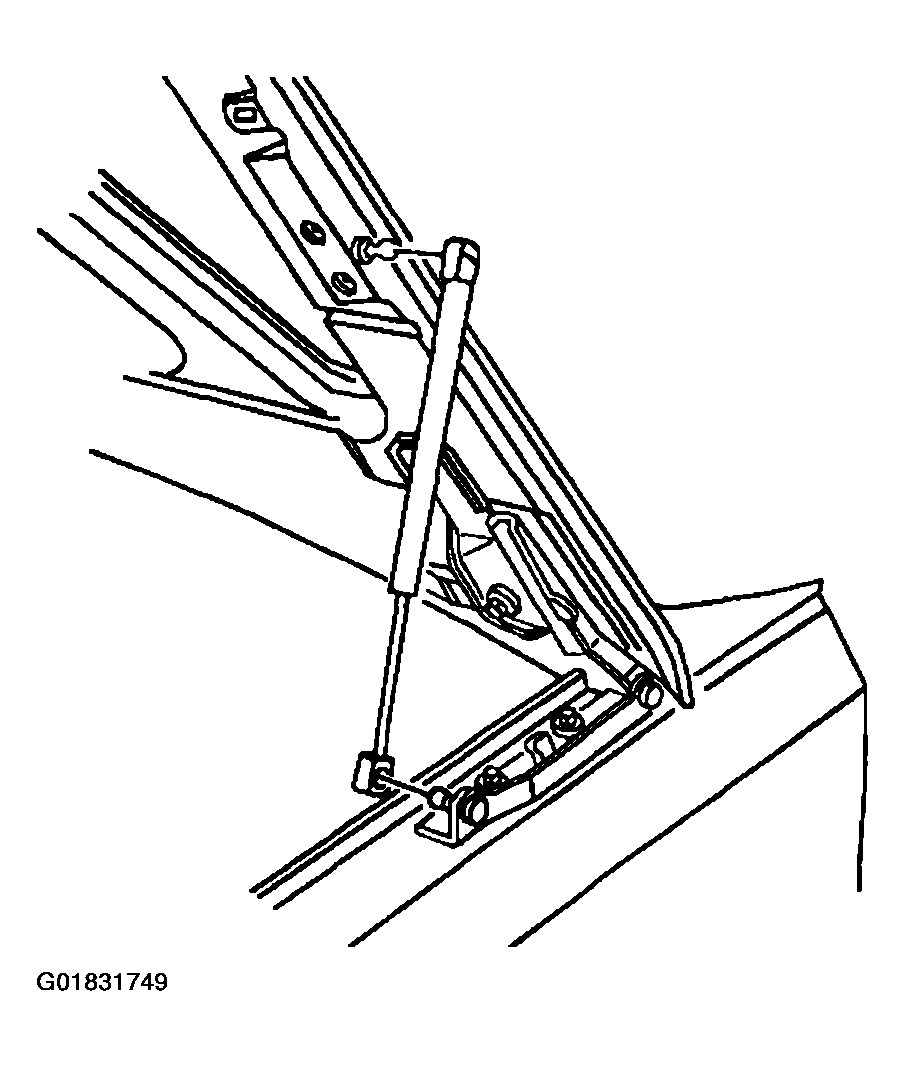

Fig 1: Lifting Up Retainer Clips On Assist Rod Using Flat - Bladed Tool
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to LIFTGATE ASSIST ROD NOTICE in Cautions and Notices.
Remove the upper end of the assist rod from the ball joint on the hood.
Remove the lower end of the assist rod from the ball joint on the lower hood hinge.

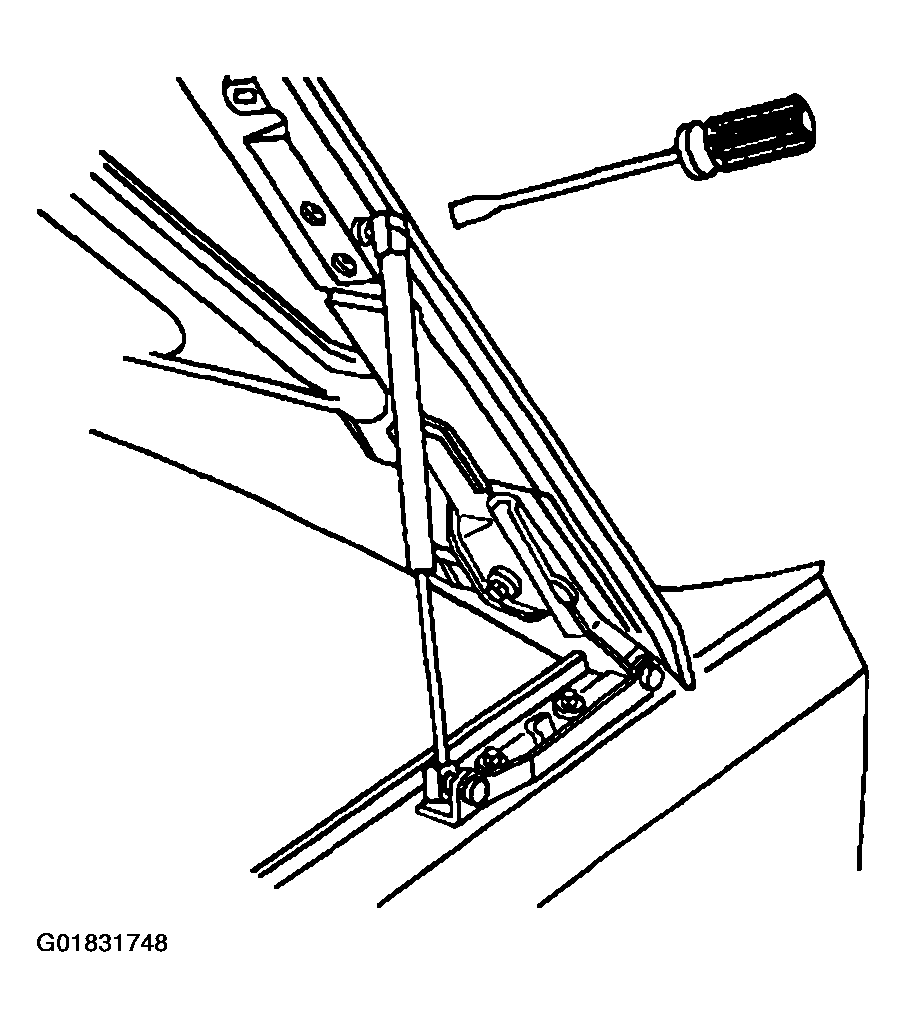

Fig 2: Removing Upper & Lower End Of Assist Rod From Ball Joint
Courtesy of GENERAL MOTORS CORP.
